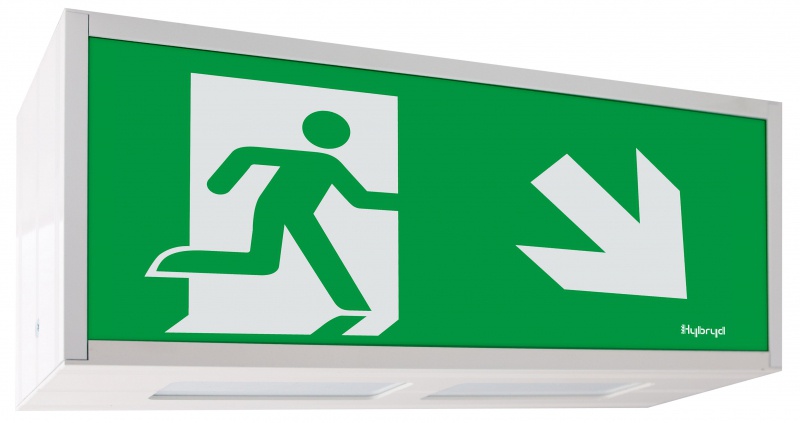

Alu luminaire is supposed to indicate emergency escape routes and emergency exits with suitable pictograms. Alu can be adopted in public facilities or in workplaces and it is compatible with all emergency lighting systems offered by Hybryd.
| CATEGORY LIGHT SOURCE | LED | |
|---|---|---|
| Power supply | 230V 50Hz | |
| Power consumption | <4VA | |
| Protection class | I | |
| Protection degree | IP 40 | |
| Light source | White LED | |
| Accumulator type | Ni-Cd HT, Ni-MH HT | |
| Recharging type | 24h | |
| Emergency work time | 3h | |
| Ambient temperature | +10°C ÷ +40°C | |
| Connector | 4 x 0,5 ÷2,5 mm2 (maintained) 3 x 0,5 ÷2,5 mm2 (non-maintained) |
|
– body material: aluminium
– casing colour: white RAL 9003 (different colours available)
– lamp cover: plexiglass with pictogram
– lamp cover colour: frosted

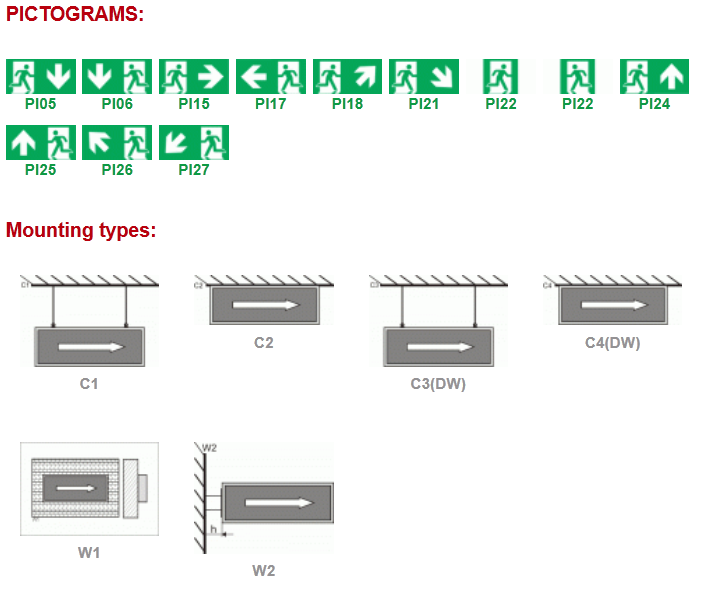

Luminaire type or lamp cover:
N – surface mount
P - recessed
DW – luminaire two-sided or lamp cover two-sided.
Execution:
ST – standard
AT – autotest
CT – central test
TS – testsystem
CB – central battery,
CB-MA – central battery plus changeover module,
CB-MP – central battery plus addressing module,
CB-MAP – central battery plus changeover + addressing module .
Work mode:
C – non-maintained
J – maintained
N – night (only for CT).
Defined for ST, AT, CT, TS, CB-MA (luminaires LED) and CB-MAP (luminaires fluorescent).
Temperature range:
Empty field - standard temperature range
T – extended temperature range (see technical data) with thermostat H-323.
