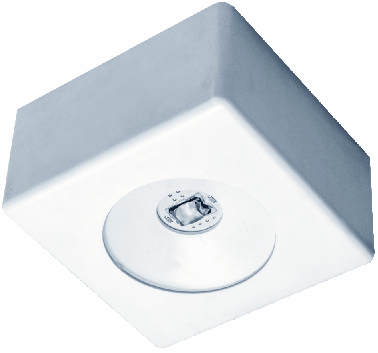

The main task of ORBIT LED is illuminating emergency escape routes.
Using road plus optics, the luminaire mounted on 3m height illuminates 11 meters of escape route maintaining required 1 lx light intensity.
Available mounting: directly on the ceiling.
Easy installation and battery replacement allow universal application. ORBIT LED can be used in public buildings, commercial buildings and factories.
It is designed to work with systems: ST, AT, and CB.
| CATEGORY | VALUE | ||
|---|---|---|---|
| Power supply | 230V 50-60Hz | ||
| Power consumption | <1,5VA | ||
| Protection class | I | ||
| Radioelectric interference | Level N | ||
| Protection degree | IP54 | ||
| Light source | LED1 module | ||
| Light source power | 2W | ||
| Luminous flux ROAD | 220 lm | ||
| Luminous flux ROAD PLUS | 220 lm | ||
| Luminous flux SIDE | 220 lm | ||
| Luminous flux AREA | 190 lm | ||
| Light source lifespan | >50.000h | ||
| Emergency work time | 1h; 2h; 3h | ||
| Accumulator type | Ni-Cd HT | ||
| Accumulator capacity [Ah] | 1,0Ah-2,5Ah | ||
| Version and housing | 4,8V | ||
| Recharging time | 24h | ||
| Ambient temperature | +10°C - +40°C | ||
| Connector | 0,5 - 2,5mm2 | ||
Body material: plastic
Casing colour: white
Other colours upon a request
Luminaire type or lamp cover:
N – surface mount
P - recessed
DW – luminaire two-sided or lamp cover two-sided.
Execution:
ST – standard
AT – autotest
CT – central test
TS – testsystem
CB – central battery,
CB-MA – central battery plus changeover module,
CB-MP – central battery plus addressing module,
CB-MAP – central battery plus changeover + addressing module .
Work mode:
C – non-maintained
J – maintained
N – night (only for CT).
Defined for ST, AT, CT, TS, CB-MA (luminaires LED) and CB-MAP (luminaires fluorescent).
Temperature range:
Empty field - standard temperature range
T – extended temperature range (see technical data) with thermostat H-323.
