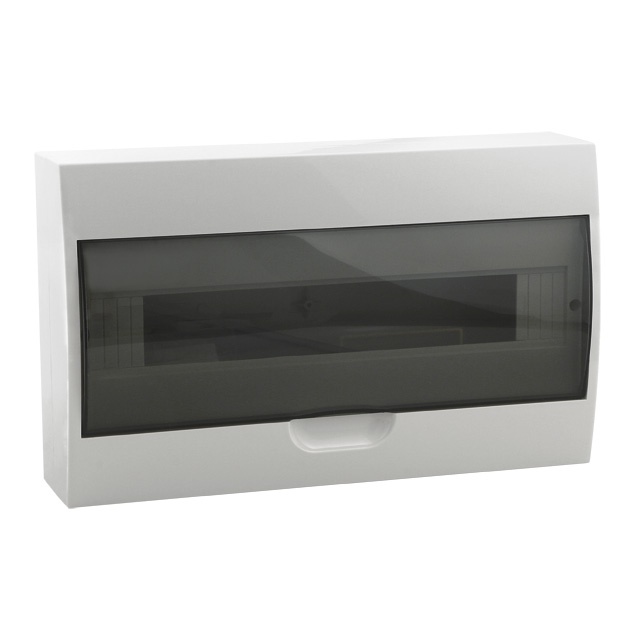

Switchgear on DIN rail Kanlux DB118S 1X18P/SMD

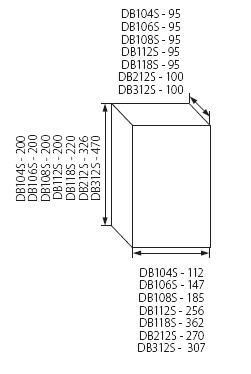

Switchgear on DIN rail Kanlux DB118S 1X18P/SMD - technical drawing

From € 6,59 incl. VAT
From € 6,59 ex. VAT

See variants (4)

rate defining protection against mechanical impacts
II protection class
conformity with European standards
applicable indoors
protection against solid objects over 1mm
for mounting on vertical surface
Rated frequency 50Hz
permissible surrounding temperature from -25 to max 55 C degrees
rated voltage 400V
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Manual Catalogue page CE Conformity declaration

Score

rate product

Select your product from the 4

Switchgear on DIN rail DB104S 1X4P/SMD

Karta produktu PDF

Electrico24 code: 61814 | Kanlux code: 3830 Fullfillment time 1-2 dni Dostępność: w magazynie Number of light color: 4P Supackage / package quantity: 1/-/20 Weight: 0,31

€ 6,59 € 6,59 ex. VAT

Switchgear on DIN rail DB106S 1X6P/SMD

Karta produktu PDF

Electrico24 code: 61815 | Kanlux code: 3831 Fullfillment time 1-2 dni Dostępność: w magazynie Number of light color: 6P Supackage / package quantity: 1/-/20 Weight: 0,40

€ 8,08 € 8,08 ex. VAT

Switchgear on DIN rail DB108S 1X8P/SMD

Karta produktu PDF

Electrico24 code: 61816 | Kanlux code: 3832 Fullfillment time 1-2 dni Dostępność: w magazynie Number of light color: 8P Supackage / package quantity: 1/-/20 Weight: 0,75

€ 8,37 € 8,37 ex. VAT

Switchgear on DIN rail DB118S 1X18P/SMD

Karta produktu PDF

Electrico24 code: 61818 | Kanlux code: 3834 Fullfillment time 1-2 dni Dostępność: w magazynie Number of light color: 18P Supackage / package quantity: 1/-/10 Weight: 0,96

€ 17,88 € 17,88 ex. VAT

Description / FAQ Warranty

Kanlux Parameters
	rate defining protection against mechanical impacts
	II protection class
	conformity with European standards
	applicable indoors
	protection against solid objects over 1mm
	for mounting on vertical surface
	Rated frequency 50Hz
	permissible surrounding temperature from -25 to max 55 C degrees
	rated voltage 400V

casing, door: ABS plastic / color: white/brown
colour: white/brown
door opening upwards
housing heat resistance 850°C, for electric equipment 650°C/30s
maximum allowable housing temperature 70°C
