ATLANTYK STRONG LED LED Hermetic Luminaires

From € 130,27 incl. VAT
From € 130,27 ex. VAT

See variants (8)

Body polyester material reinforced with fibreglass
Mounting directly on the ceiling, suspended, with mounting brackets (included)
Power supply efficiency >89%

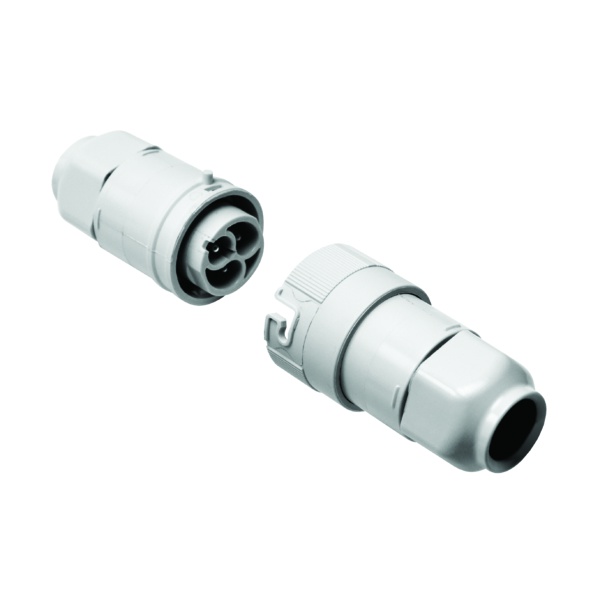

Electrical connection tight connector 5x2,5 mm²
Includes light source yes
Warranty 3 years + 2 years after project registration
Application industrial facilities, warehouses, parking areas, laboratories, metro
Available on request LED emergency module
Additional equipment stainless steel clips
Lifetime 50 000 h
Other remarks In case of application of the luminaires in hard chemical environment please contact LUG Technical Department or check Chemical Resistance table - available both, in the catalogue and on our website.
▼ see full specification ▼

Ask for product Description / FAQ / Warranty CE Conformity Declaration Product sheet

Score

rate product

Select your product from the 8

ATLANTYK STRONG LED 1299 ED 3100lm/840 PMMA opal IP65

Karta produktu PDF

Electrico24 code: 70408 | LUG code: 090250.5L01.711 Lumen LED[lm]: 3550 Luminaire power [W]: 26 Power LED[W]: 22 CRI/Ra: > 80 Colour temperature [K]: 4000 Efficacy[lm/W]: 123 Lumen luminaire[lm]: 3200

€ 130,27 € 130,27 ex. VAT

ATLANTYK STRONG LED 1299 ED 2950lm/830 PMMA opal IP65

Karta produktu PDF

Electrico24 code: 70412 | LUG code: 090250.5L06.711 Lumen LED[lm]: 2950 Luminaire power [W]: 26 Power LED[W]: 22 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 102 Lumen luminaire[lm]: 2650

€ 130,28 € 130,28 ex. VAT

ATLANTYK STRONG LED 1299 ED 4200lm/830 PMMA opal IP65

Karta produktu PDF

Electrico24 code: 70413 | LUG code: 090250.5L08.711 Lumen LED[lm]: 4200 Luminaire power [W]: 31 Power LED[W]: 26 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 118 Lumen luminaire[lm]: 3650

€ 156,76 € 156,76 ex. VAT

ATLANTYK STRONG LED 1299 ED 5300lm/840 PMMA opal IP65

Karta produktu PDF

Electrico24 code: 70410 | LUG code: 090250.5L04.711 Lumen LED[lm]: 5300 Luminaire power [W]: 38 Power LED[W]: 32 CRI/Ra: > 80 Colour temperature [K]: 4000 Efficacy[lm/W]: 124 Lumen luminaire[lm]: 4700

€ 156,76 € 156,76 ex. VAT

ATLANTYK STRONG LED 1299 ED 4400lm/840 PMMA opal IP65

Karta produktu PDF

Electrico24 code: 70409 | LUG code: 090250.5L03.711 Lumen LED[lm]: 4400 Luminaire power [W]: 31 Power LED[W]: 26 CRI/Ra: > 80 Colour temperature [K]: 4000 Efficacy[lm/W]: 126 Lumen luminaire[lm]: 3900

€ 156,77 € 156,77 ex. VAT

ATLANTYK STRONG LED 1299 ED 5100lm/830 PMMA opal IP65

Karta produktu PDF

Electrico24 code: 70414 | LUG code: 090250.5L09.711 Lumen LED[lm]: 5100 Luminaire power [W]: 38 Power LED[W]: 32 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 118 Lumen luminaire[lm]: 4500

€ 156,77 € 156,77 ex. VAT

ATLANTYK STRONG LED 1299 ED 7100lm/830 PMMA opal IP65

Karta produktu PDF

Electrico24 code: 70415 | LUG code: 090250.5L10.711 Lumen LED[lm]: 7100 Luminaire power [W]: 53 Power LED[W]: 45 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 120 Lumen luminaire[lm]: 6380

€ 210,22 € 210,22 ex. VAT

ATLANTYK STRONG LED 1299 ED 7400lm/840 PMMA opal IP65

Karta produktu PDF

Electrico24 code: 70411 | LUG code: 090250.5L05.711 Lumen LED[lm]: 7400 Luminaire power [W]: 53 Power LED[W]: 45 CRI/Ra: > 80 Colour temperature [K]: 4000 Efficacy[lm/W]: 125 Lumen luminaire[lm]: 6640

€ 210,22 € 210,22 ex. VAT

Description / FAQ Warranty

Technical Data
Body	polyester material reinforced with fibreglass
Mounting	directly on the ceiling, suspended, with mounting brackets (included)
Electrical Data
Power supply efficiency	>89%
Electrical connection	tight connector 5x2,5 mm²
Includes light source	yes
General Data
Warranty	3 years + 2 years after project registration
Application	industrial facilities, warehouses, parking areas, laboratories, metro
Additional Info
Available on request	LED emergency module
Additional equipment	stainless steel clips
Lifetime	50 000 h
Other remarks	In case of application of the luminaires in hard chemical environment please contact LUG Technical Department or check Chemical Resistance table - available both, in the catalogue and on our website.

ATLANTYK STRONG LED is an industrial luminaire for LED light sources, water-jet protected with an increased chemical resistance, dedicated to use in extreme environments. Best in class, with outstanding parameters of lighting, ensures high performance and short payback period.

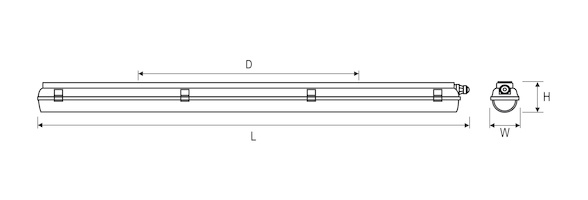

Code	Dimensions [mm] L W H D	Pallet quantity	Quantity in package	Net weight[kg]
Type of equipment: STANDARD
090250.5L01.711	1299 85 92 700	152	1	2,0
090250.5L03.711	1299 85 92 700	152	1	2,0
090250.5L04.711	1299 85 92 700	152	1	2,0
090250.5L05.711	1299 85 92 700	152	1	2,0
090250.5L06.711	1299 85 92 700	152	1	2,0
090250.5L08.711	1299 85 92 700	152	1	2,0
090250.5L09.711	1299 85 92 700	152	1	2,0
090250.5L10.711	1299 85 92 700	152	1	2,0
Type of equipment: Radar motion detector
090250.5L01.711.920	1299 85 92 700	152	1	2,0
090250.5L03.711.920	1299 85 92 700	152	1	2,0
090250.5L04.711.920	1299 85 92 700	152	1	2,0
090250.5L05.711.920	1299 85 92 700	152	1	2,0
090250.5L06.711.920	1299 85 92 700	152	1	2,0
090250.5L08.711.920	1299 85 92 700	152	1	2,0
090250.5L09.711.920	1299 85 92 700	152	1	2,0
090250.5L10.711.920	1299 85 92 700	152	1	2,0
Type of equipment: through wiring
090250.5L01.711.938	1299 85 92 700	152	1	2,1
090250.5L03.711.938	1299 85 92 700	152	1	2,1
090250.5L04.711.938	1299 85 92 700	152	1	2,1
090250.5L05.711.938	1299 85 92 700	152	1	2,1
090250.5L06.711.938	1299 85 92 700	152	1	2,1
090250.5L08.711.938	1299 85 92 700	152	1	2,1
090250.5L09.711.938	1299 85 92 700	152	1	2,1
090250.5L10.711.938	1299 85 92 700	152	1	2,1
Type of equipment: EM 1h
090250.5L01A.711	1299 85 92 700	152	1	2,5
090250.5L03A.711	1299 85 92 700	152	1	2,5
090250.5L04A.711	1299 85 92 700	152	1	2,5
090250.5L05A.711	1299 85 92 700	152	1	2,5
090250.5L06A.711	1299 85 92 700	152	1	2,5
090250.5L08A.711	1299 85 92 700	152	1	2,5
090250.5L09A.711	1299 85 92 700	152	1	2,5
090250.5L10A.711	1299 85 92 700	152	1	2,5
Type of equipment: EM 3h
090250.5L01B.711	1299 85 92 700	144	1	3,0
090250.5L03B.711	1299 85 92 700	144	1	3,0
090250.5L04B.711	1299 85 92 700	144	1	3,0
090250.5L05B.711	1299 85 92 700	144	1	3,0
090250.5L06B.711	1299 85 92 700	144	1	3,0
090250.5L08B.711	1299 85 92 700	144	1	3,0
090250.5L09B.711	1299 85 92 700	144	1	3,0
090250.5L10B.711	1299 85 92 700	144	1	3,0

Oznaczenia opraw:

HF - high frequency - luminaires with electronic ballast
IN - inductive - luminaires with magnetic ballast without compensation
IC - inductive compensated - luminaires with magnetic ballast with compensation
