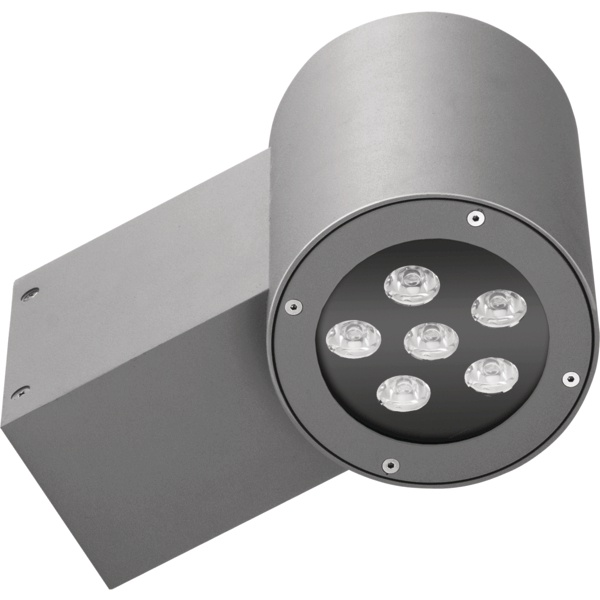

ROTUNDA 2 LED LED Wall Outdoor Luminaires

From € 325,76 incl. VAT
From € 325,76 ex. VAT

See variants (18)

Body high pressure die-cast aluminum
Mounting surface mounted
Electrical connection 3x2,5 mm² wire
Includes light source yes
Power supply efficiency >71%
Warranty 3 years + 2 years after project registration
Application facades, hotels, shopping centers, museums, restaurants, metro, car showrooms
Lifetime 50 000 h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty CE Conformity Declaration Product sheet

Score

rate product

Select your product from the 18

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W amber IP65 22st. grey

Karta produktu PDF

Electrico24 code: 70843 | LUG code: 140022.5L016.608 Lumen LED[lm]: 780 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: amber Efficacy[lm/W]: 34 Lumen luminaire[lm]: 580

€ 325,76 € 325,76 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W blue IP65 22st. grey

Karta produktu PDF

Electrico24 code: 70840 | LUG code: 140022.5L015.608 Lumen LED[lm]: 480 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: blue Efficacy[lm/W]: 21 Lumen luminaire[lm]: 360

€ 325,76 € 325,76 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W blue IP65 45st. grey

Karta produktu PDF

Electrico24 code: 70838 | LUG code: 140022.5L015.604 Lumen LED[lm]: 480 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: blue Efficacy[lm/W]: 20 Lumen luminaire[lm]: 340

€ 325,76 € 325,76 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W green IP65 22st. grey

Karta produktu PDF

Electrico24 code: 70837 | LUG code: 140022.5L014.608 Lumen LED[lm]: 1080 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: green Efficacy[lm/W]: 47 Lumen luminaire[lm]: 800

€ 325,76 € 325,76 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W red IP65 10st. grey

Karta produktu PDF

Electrico24 code: 70833 | LUG code: 140022.5L013.607 Lumen LED[lm]: 540 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: red Efficacy[lm/W]: 24 Lumen luminaire[lm]: 400

€ 325,76 € 325,76 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W red IP65 22st. grey

Karta produktu PDF

Electrico24 code: 70834 | LUG code: 140022.5L013.608 Lumen LED[lm]: 540 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: red Efficacy[lm/W]: 24 Lumen luminaire[lm]: 400

€ 325,76 € 325,76 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W red IP65 45st. grey

Karta produktu PDF

Electrico24 code: 70832 | LUG code: 140022.5L013.604 Lumen LED[lm]: 540 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: red Efficacy[lm/W]: 24 Lumen luminaire[lm]: 400

€ 325,76 € 325,76 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W amber IP65 10st. grey

Karta produktu PDF

Electrico24 code: 70842 | LUG code: 140022.5L016.607 Lumen LED[lm]: 780 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: amber Efficacy[lm/W]: 34 Lumen luminaire[lm]: 580

€ 325,90 € 325,90 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W amber IP65 45st. grey

Karta produktu PDF

Electrico24 code: 70841 | LUG code: 140022.5L016.604 Lumen LED[lm]: 780 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: amber Efficacy[lm/W]: 33 Lumen luminaire[lm]: 560

€ 325,90 € 325,90 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W blue IP65 10st. grey

Karta produktu PDF

Electrico24 code: 70839 | LUG code: 140022.5L015.607 Lumen LED[lm]: 480 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: blue Efficacy[lm/W]: 21 Lumen luminaire[lm]: 360

€ 325,90 € 325,90 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W green IP65 10st. grey

Karta produktu PDF

Electrico24 code: 70836 | LUG code: 140022.5L014.607 Lumen LED[lm]: 1080 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: green Efficacy[lm/W]: 47 Lumen luminaire[lm]: 800

€ 325,90 € 325,90 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W green IP65 45st. grey

Karta produktu PDF

Electrico24 code: 70835 | LUG code: 140022.5L014.604 Lumen LED[lm]: 1080 Luminaire power [W]: 17 Power LED[W]: 2x6 Colour temperature [K]: green Efficacy[lm/W]: 46 Lumen luminaire[lm]: 780

€ 325,90 € 325,90 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W white 3000K IP65 45st. grey

Karta produktu PDF

Electrico24 code: 70826 | LUG code: 140022.5L011.604 Lumen LED[lm]: 1340 Luminaire power [W]: 17 Power LED[W]: 2x6 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 51 Lumen luminaire[lm]: 870

€ 325,90 € 325,90 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W white 6000K IP65 10st. grey

Karta produktu PDF

Electrico24 code: 70830 | LUG code: 140022.5L012.607 Lumen LED[lm]: 1660 Luminaire power [W]: 17 Power LED[W]: 2x6 CRI/Ra: > 60 Colour temperature [K]: 6000 Efficacy[lm/W]: 74 Lumen luminaire[lm]: 1260

€ 325,90 € 325,90 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W white 6000K IP65 22st. grey

Karta produktu PDF

Electrico24 code: 70831 | LUG code: 140022.5L012.608 Lumen LED[lm]: 1660 Luminaire power [W]: 17 Power LED[W]: 2x6 CRI/Ra: > 60 Colour temperature [K]: 6000 Efficacy[lm/W]: 74 Lumen luminaire[lm]: 1260

€ 325,90 € 325,90 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W white 6000K IP65 45st. grey

Karta produktu PDF

Electrico24 code: 70829 | LUG code: 140022.5L012.604 Lumen LED[lm]: 1660 Luminaire power [W]: 17 Power LED[W]: 2x6 CRI/Ra: > 60 Colour temperature [K]: 6000 Efficacy[lm/W]: 72 Lumen luminaire[lm]: 1220

€ 325,90 € 325,90 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W white 3000K IP65 10st. grey

Karta produktu PDF

Electrico24 code: 70827 | LUG code: 140022.5L011.607 Lumen LED[lm]: 1340 Luminaire power [W]: 17 Power LED[W]: 2x6 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 53 Lumen luminaire[lm]: 900

€ 325,92 € 325,92 ex. VAT

ROTUNDA 2 LED bracket ED 230V/50Hz 16,8W white 3000K IP65 22st. grey

Karta produktu PDF

Electrico24 code: 70828 | LUG code: 140022.5L011.608 Lumen LED[lm]: 1340 Luminaire power [W]: 17 Power LED[W]: 2x6 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 53 Lumen luminaire[lm]: 900

€ 325,92 € 325,92 ex. VAT

Description / FAQ Warranty

Technical Data
Body	high pressure die-cast aluminum
Mounting	surface mounted
Electrical Data
Electrical connection	3x2,5 mm² wire
Includes light source	yes
Power supply efficiency	>71%
General Data
Warranty	3 years + 2 years after project registration
Application	facades, hotels, shopping centers, museums, restaurants, metro, car showrooms
Additional Info
Lifetime	50 000 h

Wall luminaires being perfect solution for facade illumination - different beam angles and LED colors possible.

Code	Dimensions [mm] L W H D	Pallet quantity	Quantity in package	Net weight[kg]
140022.5L011.604	270 150 200 100	112	1	3,8
140022.5L011.607	270 150 200 100	112	1	3,8
140022.5L011.608	270 150 200 100	112	1	3,8
140022.5L012.604	270 150 200 100	112	1	3,8
140022.5L012.607	270 150 200 100	112	1	3,8
140022.5L012.608	270 150 200 100	112	1	3,8
140022.5L013.604	270 150 200 100	112	1	3,8
140022.5L013.607	270 150 200 100	112	1	3,8
140022.5L013.608	270 150 200 100	112	1	3,8
140022.5L014.604	270 150 200 100	112	1	3,8
140022.5L014.607	270 150 200 100	112	1	3,8
140022.5L014.608	270 150 200 100	112	1	3,8
140022.5L015.604	270 150 200 100	112	1	3,8
140022.5L015.607	270 150 200 100	112	1	3,8
140022.5L015.608	270 150 200 100	112	1	3,8
140022.5L016.604	270 150 200 100	112	1	3,8
140022.5L016.607	270 150 200 100	112	1	3,8
140022.5L016.608	270 150 200 100	112	1	3,8

Oznaczenia opraw:

HF - high frequency - luminaires with electronic ballast
IN - inductive - luminaires with magnetic ballast without compensation
IC - inductive compensated - luminaires with magnetic ballast with compensation
