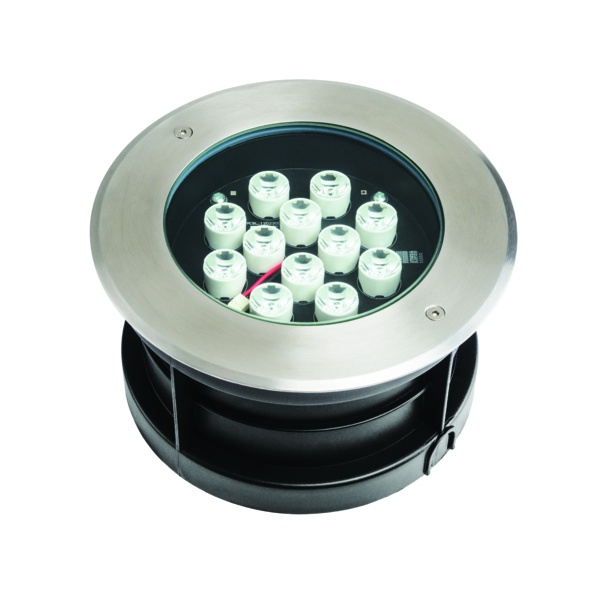

RUNA 3 LED LED Drive Over Luminaires

From € 222,01 incl. VAT
From € 222,01 ex. VAT

See variants (5)

Body high pressure die-cast aluminum
Mounting in the substrate
Electrical connection 2x2,5 mm² wire
Power supply efficiency >80%
Includes light source yes
Warranty 3 years + 2 years after project registration
Application pathways, shopping centers, parking areas, Railway stations, hotels
Lifetime 50 000 h
Other remarks lack of access to power feeders after installing the housing on solid surface (concrete, paving, etc.) without interfering with its structure

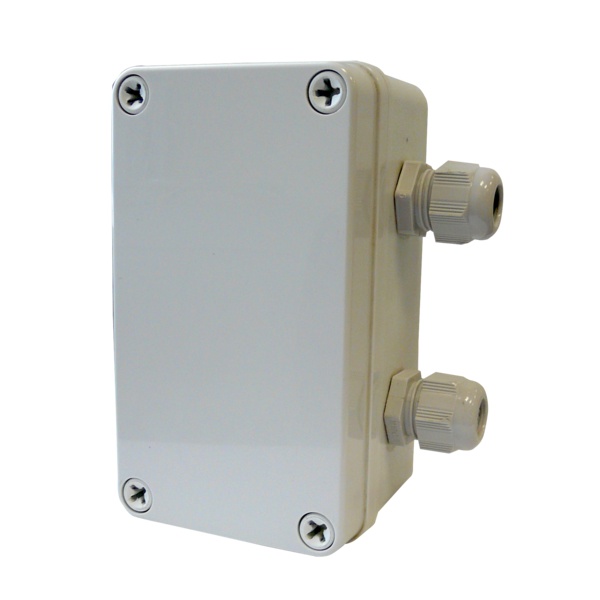

Additional equipment independent power supply cover (in a set)
▼ see full specification ▼

Ask for product Description / FAQ / Warranty CE Conformity Declaration Product sheet

Score

rate product

Select your product from the 5

RUNA LED 200 ED 12x1W white 6000K IP 10st. black

Karta produktu PDF

Electrico24 code: 71043 | LUG code: 140233.5L032.13 Lumen LED[lm]: 1620 Luminaire power [W]: 15 Power LED[W]: 12 CRI/Ra: > 80 Colour temperature [K]: 6000 Efficacy[lm/W]: 82 Lumen luminaire[lm]: 1230

€ 222,01 € 222,01 ex. VAT

RUNA LED 200 ED 12x1W red IP 10st. black

Karta produktu PDF

Electrico24 code: 71044 | LUG code: 140233.5L033.13 Lumen LED[lm]: 500 Luminaire power [W]: 15 Power LED[W]: 12 CRI/Ra: > 80 Colour temperature [K]: red Efficacy[lm/W]: 25 Lumen luminaire[lm]: 380

€ 224,54 € 224,54 ex. VAT

RUNA LED 200 ED 12x1W green IP 10st. black

Karta produktu PDF

Electrico24 code: 71045 | LUG code: 140233.5L034.13 Lumen LED[lm]: 1060 Luminaire power [W]: 15 Power LED[W]: 12 CRI/Ra: > 80 Colour temperature [K]: green Efficacy[lm/W]: 54 Lumen luminaire[lm]: 810

€ 225,00 € 225,00 ex. VAT

RUNA LED 200 ED 12x1W white 3000K IP 10st. black

Karta produktu PDF

Electrico24 code: 71042 | LUG code: 140233.5L031.13 Lumen LED[lm]: 1320 Luminaire power [W]: 15 Power LED[W]: 12 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 67 Lumen luminaire[lm]: 1000

€ 227,08 € 227,08 ex. VAT

RUNA LED 200 ED 12x1W blue IP 10st. black

Karta produktu PDF

Electrico24 code: 71046 | LUG code: 140233.5L035.13 Lumen LED[lm]: 460 Luminaire power [W]: 15 Power LED[W]: 12 CRI/Ra: > 80 Colour temperature [K]: blue Efficacy[lm/W]: 23 Lumen luminaire[lm]: 350

€ 231,45 € 231,45 ex. VAT

Description / FAQ Warranty

Technical Data
Body	high pressure die-cast aluminum
Mounting	in the substrate
Electrical Data
Electrical connection	2x2,5 mm² wire
Power supply efficiency	>80%
Includes light source	yes
General Data
Warranty	3 years + 2 years after project registration
Application	pathways, shopping centers, parking areas, Railway stations, hotels
Additional Info
Lifetime	50 000 h
Other remarks	lack of access to power feeders after installing the housing on solid surface (concrete, paving, etc.) without interfering with its structure
Additional equipment	independent power supply cover (in a set)

Code	Dimensions [mm] W H	Dimensions de découpe [mm] W H	Pallet quantity	Quantity in package	Net weight[kg]
140233.5L031.13	210 120	195 112	150	1	2,7
140233.5L031.43	210 120	195 112	150	1	2,7
140233.5L031.53	210 120	195 112	150	1	2,7
140233.5L032.13	210 120	195 112	150	1	2,7
140233.5L032.43	210 120	195 112	150	1	2,7
140233.5L032.53	210 120	195 112	150	1	2,7
140233.5L033.13	210 120	195 112	150	1	2,7
140233.5L033.43	210 120	195 112	150	1	2,7
140233.5L033.53	210 120	195 112	150	1	2,7
140233.5L034.13	210 120	195 112	150	1	2,7
140233.5L034.43	210 120	195 112	150	1	2,7
140233.5L034.53	210 120	195 112	150	1	2,7
140233.5L035.13	210 120	195 112	150	1	2,7
140233.5L035.43	210 120	195 112	150	1	2,7
140233.5L035.53	210 120	195 112	150	1	2,7
140233.5L031.33	210 120	210 -	-	-	2,2

Oznaczenia opraw:

HF - high frequency - luminaires with electronic ballast
IN - inductive - luminaires with magnetic ballast without compensation
IC - inductive compensated - luminaires with magnetic ballast with compensation
