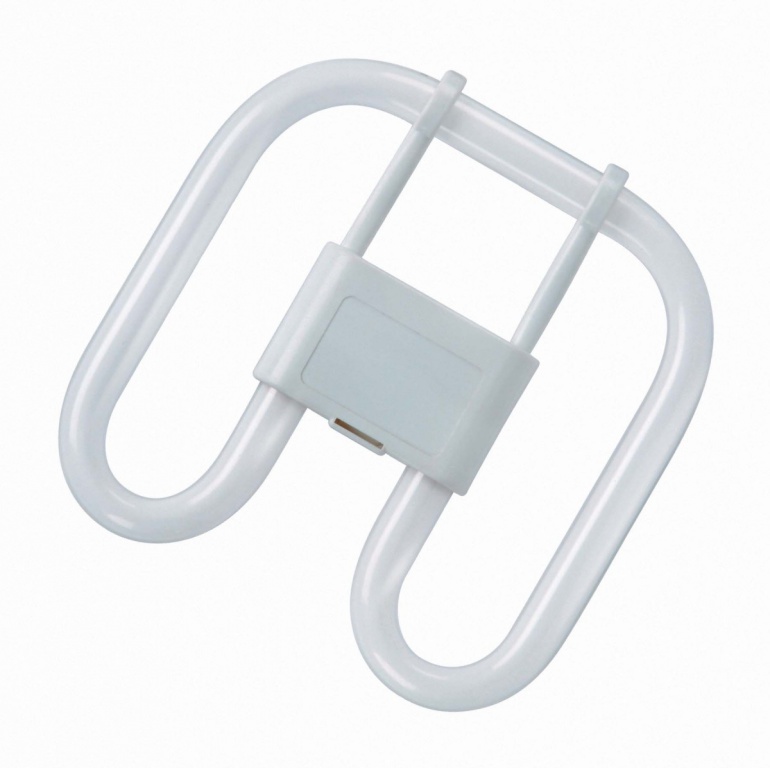

Fluorescent Lamp CFL SQUARE 2 pins Compact Fluorescent Lamps GR8 / GR10q

From € 8,06 incl. VAT
From € 8,06 ex. VAT

See variants (4)

Color rendering index Ra 8089
Color rendering group 1B
Rated LLMF at 4,000 h 0.78
Rated LLMF at 6,000 h 0.76
Rated LLMF at 8,000 h 0.75
Nominal lamp life time 10000 h
Rated lamp life time 10000 h
Lifespan 10000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.94
Rated lamp survival factor at 6,000 h 0.84
Service life 6000 h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

CFL SQUARE 16 W/827 GR8

Karta produktu PDF

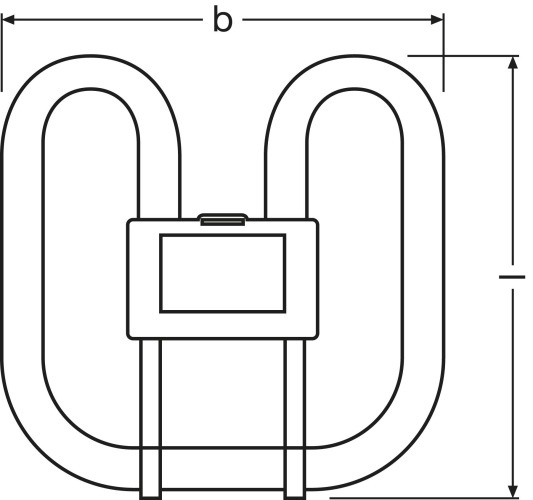

Electrico24 code: 56752 | Osram code: 4050300816852 Nominal wattage: 16.00 W Color temperature: 2700 K Nominal luminous flux: 1050 lm Rated luminous flux: 1050 lm Light color as per EN 12464-1: LUMILUX INTERNA Overall length: 138.0 mm Length: 138.0 mm Nominal lamp life time: 10000 h Rated lamp life time: 10000 h Base (standard designation): GR8 see more »

Appropriate disposal acc. to WEEE: Yes Energy efficiency class: B Color rendering index Ra: 8089 Lamp mercury content: 3.5 mg Energy consumption: 20 kWh/1000h ILCOS: FSS-16/827-I-GR8 Product weight: 71.00 g Lifespan: 10000 h Light color: 827 Color rendering group: 1B Luminous flux at 25 °C: 1050 lm Rated LLMF at 4,000 h: 0.78 Rated LLMF at 6,000 h: 0.76 Rated LLMF at 8,000 h: 0.75 Length acc. to IEC standard: 138 mm Rated lamp survival factor at 2,000 h: 0.99 Rated lamp survival factor at 4,000 h: 0.94 Rated lamp survival factor at 6,000 h: 0.84 Service life: 6000 h Operation mode LLMF/LSF: 50 Hz Rated lamp survival factor at 8,000 h: 0.69 Suitable for indoor: Yes Rated wattage: 16.00 W « hide more

€ 8,06 € 8,06 ex. VAT

CFL SQUARE 16 W/835 GR8

Karta produktu PDF

Electrico24 code: 55942 | Osram code: 4050300816838 Construction wattage [PICOS]: 16.00 W Nominal wattage: 16.00 W Color temperature: 3500 K Nominal luminous flux: 1050 lm Rated luminous flux: 1050 lm Light color as per EN 12464-1: LUMILUX White Overall length: 138.0 mm Length: 138.0 mm Energy efficiency class: B Energy consumption: 20 kWh/1000h see more »

ILCOS: FSS-16/835-I-GR8 Product weight: 71.00 g Light color: 835 Luminous flux at 25 °C: 1050 lm Length acc. to IEC standard: 138 mm « hide more

€ 8,06 € 8,06 ex. VAT

CFL SQUARE 28 W/827 GR8

Karta produktu PDF

Electrico24 code: 55944 | Osram code: 4050300816913 Construction wattage [PICOS]: 28.00 W Nominal wattage: 28.00 W Color temperature: 2700 K Nominal luminous flux: 2050 lm Rated luminous flux: 2050 lm Light color as per EN 12464-1: LUMILUX INTERNA Overall length: 205.0 mm Length: 205.0 mm Energy efficiency class: A Energy consumption: 34 kWh/1000h see more »

ILCOS: FSS-28/827-I-GR8 Product weight: 155.00 g Light color: 827 Luminous flux at 25 °C: 2050 lm Length acc. to IEC standard: 205 mm « hide more

€ 10,79 € 10,79 ex. VAT

CFL SQUARE 28 W/835 GR8

Karta produktu PDF

Electrico24 code: 55946 | Osram code: 4050300816937 Construction wattage [PICOS]: 28.00 W Nominal wattage: 28.00 W Color temperature: 3500 K Nominal luminous flux: 2050 lm Rated luminous flux: 2050 lm Light color as per EN 12464-1: LUMILUX White Overall length: 205.0 mm Length: 205.0 mm Energy efficiency class: A Energy consumption: 34 kWh/1000h see more »

ILCOS: FSS-28/835-I-GR8 Product weight: 155.00 g Light color: 835 Luminous flux at 25 °C: 2050 lm Length acc. to IEC standard: 205 mm « hide more

€ 10,79 € 10,79 ex. VAT

Description / FAQ Warranty

Photometrical data
Color rendering index Ra	8089
Color rendering group	1B
Rated LLMF at 4,000 h	0.78
Rated LLMF at 6,000 h	0.76
Rated LLMF at 8,000 h	0.75
Lifespan
Nominal lamp life time	10000 h
Rated lamp life time	10000 h
Lifespan	10000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.94
Rated lamp survival factor at 6,000 h	0.84
Service life	6000 h
Operation mode LLMF/LSF	50 Hz
Rated lamp survival factor at 8,000 h	0.69
Additional product data
Base (standard designation)	GR8
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	3.5 mg
Capabilities
Suitable for indoor	Yes

Product benefits

Square shape provides uniform distribution of light
No shadows at either end and no dark patches
Extremely low profile
Very economical
Good quality of light
Long service life

Areas of application

Low-profile wall and ceiling luminaires
Public buildings, reception areas, offices, corridors, etc.
Shops
Supermarkets and department stores
Hotels, restaurants
Industry

Product features

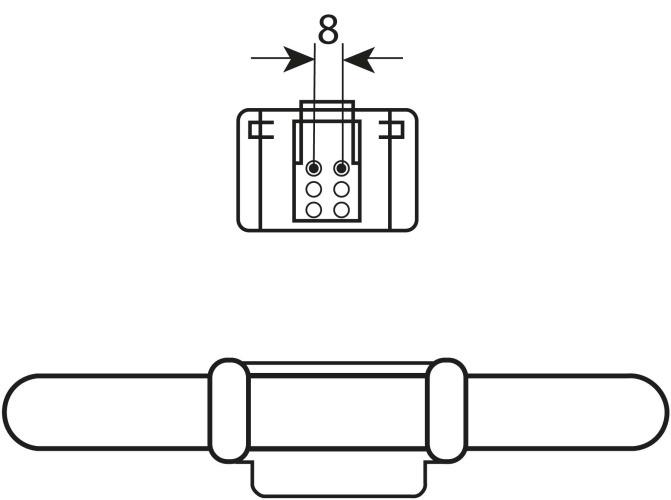

Single-ended two-pin plug-in GR8 base
Short and compact pin-base lamp with double-turn tubes
Color rendering index Ra: 80…89

Equipment / Accessories

Suitable for operation on conventional control gear

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp
