CV Power supplies 12V Power Supplies

Electrico24 code: 56979 | Osram code: 4052899905559

Price € 37,15 incl. VAT
€ 37,15 netto

Nominal voltage 220240 V
Power factor λ > 0.5
Nominal output power 15 W
Input voltage AC 198264 V
Mains frequency 5060 Hz
Nominal output voltage 12.5 V
Device power loss 3.0 W
ECG efficiency 80 %
Nominal current 0.18 A
Inrush current 20 A
Max. no. of ECGs on circuit breaker 10 A 32
Galvanic isolation primary/secondary 3.75 kV
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

OT 15/220...240/12 P

Karta produktu PDF

Electrico24 code: 56979 | Osram code: 4052899905559

€ 37,15 € 37,15 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	220240 V
Power factor λ	> 0.5
Nominal output power	15 W
Input voltage AC	198264 V
Mains frequency	5060 Hz
Nominal output voltage	12.5 V
Device power loss	3.0 W
ECG efficiency	80 %
Nominal current	0.18 A
Inrush current	20 A
Max. no. of ECGs on circuit breaker 10 A	32
Galvanic isolation primary/secondary	3.75 kV
Max. no. of ECGs on circuit breaker 16 A	51
Surge capability (L-N)	4 kV

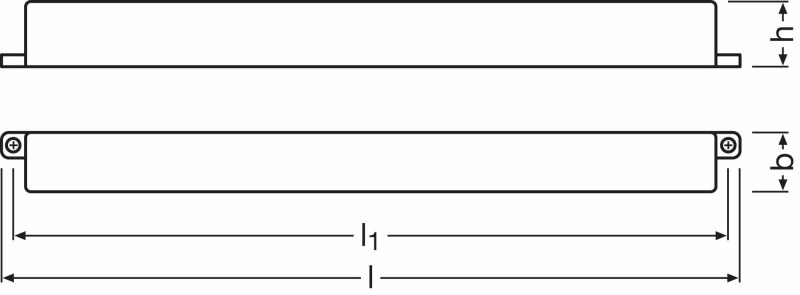

Dimensions & weight
Length	237.0 mm
Width	20.0 mm
Height	22.0 mm
Cable cross-section, input side	1.0 mm²
Product weight	170.00 g
Cable cross-section, output side	1.0 mm²
Wire preparation length, input side	10 mm
Lifespan
ECG lifetime	50000 h
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	II
Overheating protection	Automatic reversible
Max. cable length to lamp/LED module	10 m
No-load proof	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Certificates & standards
Approval marks approval	CE / ENEC 18 / CB / C-Tick
Standards	acc. to IEC 61347-1/acc. to IEC 61347-2-13/acc. to IEC 62384/acc. to CISPR 15/acc. to EN 61000-3-2/acc. to EN 61547
Type of protection	IP66
Colors & materials
Casing material	Plastic
Temperatures
Ambient temperature range	-25+55 °C
Maximum temperature at tc test point	80 °C
Temperature range at storage	-4085 °C
Max.housing temperature in case of fault	110 °C

Product benefits

Versatile scope of application due to output power range of up to 120 W
Very high efficiency and reliability
High IP protection (up to IP67)
High surge protection: up to 3 kV (L-N) / 6 kV (L/N-PE)

Areas of application

Suitable for indoor and outdoor installations
Ideal for mounting in very tight spaces
