CV Power supplies 24V LED Power Supplies

Electrico24 code: 56411 | Osram code: 4050300618111

Price € 23,04 incl. VAT
€ 23,04 netto

Power factor λ 0.80

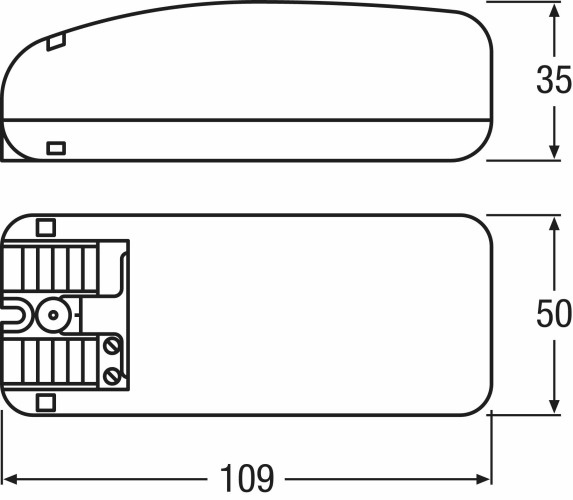

Length 109.0 mm
Nominal output power 20 W
Input voltage AC 198254 V
Device power loss 4.0 W
ECG efficiency 83 %
Nominal current 0.35 A
Inrush current 10 A
Max. no. of ECGs on circuit breaker 10 A 42
Galvanic isolation primary/secondary 3 kV
Max. no. of ECGs on circuit breaker 16 A 68
Surge capability (L-N) 1 kV
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

OT 20/200...240/24

Karta produktu PDF

Electrico24 code: 56411 | Osram code: 4050300618111 Power factor λ: 0.80 Length: 109.0 mm Nominal output power: 20 W Input voltage AC: 198254 V Device power loss: 4.0 W ECG efficiency: 83 % Nominal current: 0.35 A Inrush current: 10 A Max. no. of ECGs on circuit breaker 10 A: 42 Galvanic isolation primary/secondary: 3 kV see more »

Max. no. of ECGs on circuit breaker 16 A: 68 Surge capability (L-N): 1 kV Width: 50.0 mm Height: 35.0 mm Cable cross-section, input side: 0.751.5 mm² Product weight: 108.00 g Cable cross-section, output side: 0.51.5 mm² Casing material: Plastic Wire preparation length, input side: 10 mm Ambient temperature range: -20+45 °C Maximum temperature at tc test point: 70 °C ECG lifetime: 30000 h Max.housing temperature in case of fault: 90 °C Suitable for fixtures with prot. class: II Approval marks approval: CE / ENEC 10 / VDE / VDE-EMC / GOST / C-Tick Standards: Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to EN 55015/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Type of protection: IP20 « hide more

€ 23,04 € 23,04 ex. VAT

Description / FAQ Warranty

Power factor λ	0.80
Length	109.0 mm
Nominal output power	20 W
Input voltage AC	198254 V
Device power loss	4.0 W
ECG efficiency	83 %
Nominal current	0.35 A
Inrush current	10 A
Max. no. of ECGs on circuit breaker 10 A	42
Galvanic isolation primary/secondary	3 kV
Max. no. of ECGs on circuit breaker 16 A	68
Surge capability (L-N)	1 kV
Width	50.0 mm
Height	35.0 mm
Cable cross-section, input side	0.751.5 mm²
Product weight	108.00 g
Cable cross-section, output side	0.51.5 mm²
Casing material	Plastic
Wire preparation length, input side	10 mm
Ambient temperature range	-20+45 °C
Maximum temperature at tc test point	70 °C
ECG lifetime	30000 h
Max.housing temperature in case of fault	90 °C
Suitable for fixtures with prot. class	II
Approval marks approval	CE / ENEC 10 / VDE / VDE-EMC / GOST / C-Tick
Standards	Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to EN 55015/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Type of protection	IP20
Electrical data
Nominal voltage	220240 V
Mains frequency	5060 Hz
Nominal output voltage	24 V
Capabilities
Dimmable	Yes
Overheating protection	Automatic reversible
Max. cable length to lamp/LED module	10 m
No-load proof	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Temperatures
Temperature range at storage	-4085 °C

Product benefits

Very high efficiency and reliability
Versatile scope of application due to output power range of up to 240 W
Constant luminous flux for very low and high temperatures due to Smart Power Supply

Areas of application

Suitable for indoor and outdoor SELV installations
Suitable for use in tight, flat luminaires or installation in suspended ceilings
Outdoor applications only in suitable luminaires
