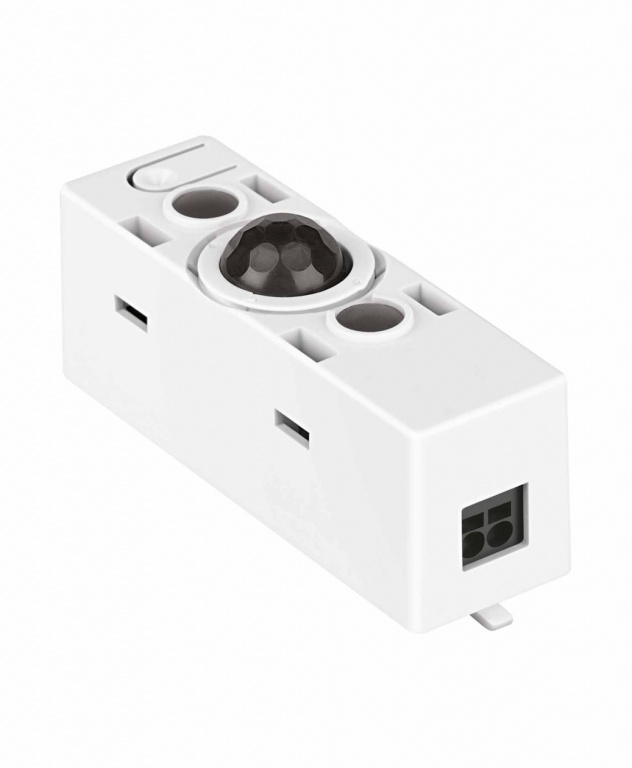

DALI LS/PD LI Movement Detectors

Electrico24 code: 57078 | Osram code: 4052899043954
Price € 80,06 incl. VAT
€ 80,06 netto
pc(s)
pc(s)
  • Length 48.0 mm
  • Width 15.0 mm
  • Height 17.0 mm
  • Product weight 10.00 g
  • Type of installation Ceiling integration/Luminaire integration
  • Detection angle 80 °
  • Detection area 6 m²
  • Maximum installation height 5 m
  • Operating range, light sensor 20…800 lx
  • Type of protection IP20
  • Product color Grey
  • Ambient temperature range 0…+50 °C
  • ▼ see full specification ▼
Ask for product Description / FAQ / Warranty

Score

* * * * *

rate product

1 variant available

DALI LS/PD LI
DALI LS/PD LI
Karta produktu PDF
Electrico24 code: 57078 | Osram code: 4052899043954
€ 80,06 € 80,06 ex. VAT
pc(s)
pc(s)

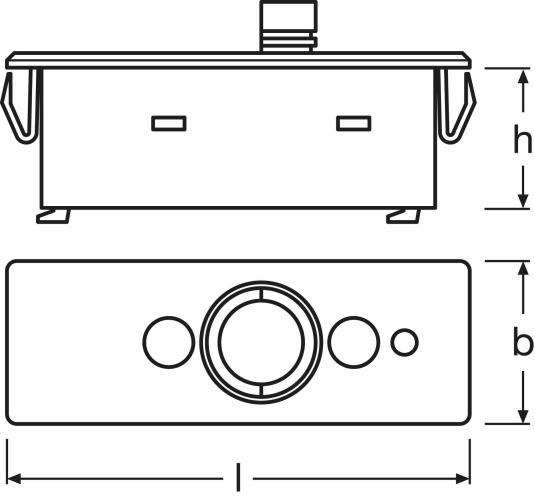

Dimensions & weight
Length 48.0 mm
Width 15.0 mm
Height 17.0 mm
Product weight 10.00 g

Capabilities
Type of installation Ceiling integration/Luminaire integration
Detection angle 80 °
Detection area 6 m²
Maximum installation height 5 m
Operating range, light sensor 20…800 lx

Certificates & standards
Type of protection IP20

Colors & materials
Product color Grey

Temperatures
Ambient temperature range 0…+50 °C

Product benefits

  • Small housing design
  • Presence detection angle adjustable between 40…90° via integrated shutters
  • Can be addressed via DALI
  • Compact housing for luminaire installation
  • Daylight-dependent control with automatic shutdown in aquate daylight
  • Slim housing design and flexible mounting concept
  • Power supply from DALI
  • DALI based light management system integrable into building management systems

Areas of application

  • Installation in industry and office  luminaires
  • Ceiling installation via LS/PD CI KIT or LS/PD AP KIT possible
  • Classrooms
  • Conference rooms
  • Corridors
  • Individual offices
  • Suspended luminaires
  • Suitable for indoor applications

Product features

  • Direct connection to DALI
  • Light and presence sensor for luminaire installation
  • Presence detection via passive IR element
  • Light sensor working range: 20…800 lx (measured at sensor)
  • Function indicator with two-color LED
  • Flame-resistant, halogen free polycarbonate plastic housing
  • Mounting height: 2…5 m

Equipment / Accessories

  • Suitable for DALI Professional and DALIeco Control unit
