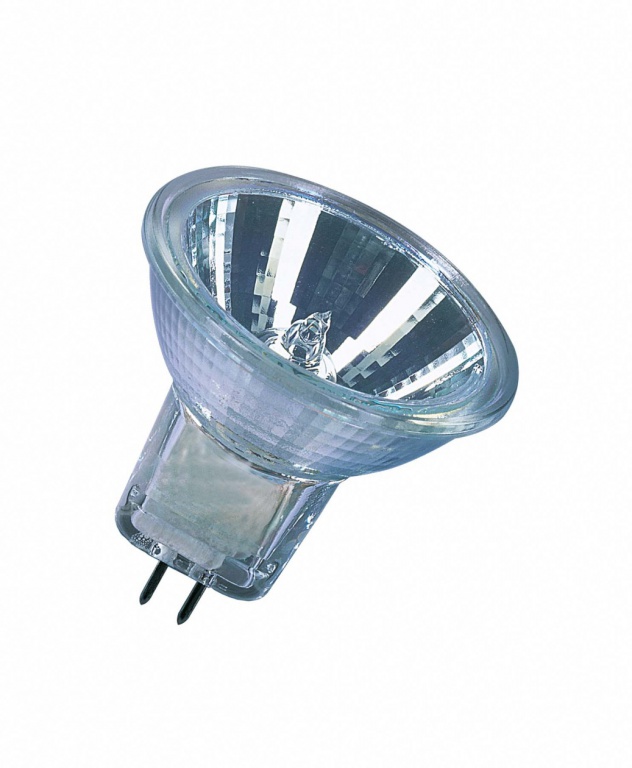

Halogen lamp DECOSTAR 35 TITAN Halogen Lamps GU4

Osram DECOSTAR 35 TITAN 20 W 12 V 36° GU4

From € 4,13 incl. VAT
From € 4,13 ex. VAT

See variants (4)

Power factor λ 1.00
Color temperature 3000 K
Light color as per EN 12464-1 Warm White
Color rendering index Ra 100
Starting time 0.0 s
Warm-up time (60 %) 0.00 s
Overall length 42.0 mm
Diameter 35.0 mm
Length 40.0 mm
Maximum diameter 35.0 mm
Nominal lamp life time 4000 h
Rated lamp life time 4000 h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

DECOSTAR 35 TITAN 20 W 12 V 10° GU4

Karta produktu PDF

Electrico24 code: 56714 | Osram code: 4050300529301 Nominal voltage: 12.0 V Nominal wattage: 20.00 W Color temperature: 3000 K Power factor λ: 1.00 Light color as per EN 12464-1: Warm White Rated useful luminous flux 90°: 220 lm Beam angle: 10 ° Starting time: 0.0 s Warm-up time (60 %): 0.00 s Overall length: 42.0 mm see more »

Diameter: 35.0 mm Length: 40.0 mm Outer bulb: MR35 Nominal lamp life time: 4000 h Rated lamp life time: 4000 h Base (standard designation): GU4 Mercury-free: Yes Number of switching cycles: 100000 Dimmable: Yes Energy efficiency class: B Order reference: 46890 SP 20W 12 Color rendering index Ra: 100 Luminous intensity: 3500 cd Nominal useful luminous flux 90°: 220 lm Lumen main.fact.at end of nom.life time: 0.75 Maximum diameter: 35.0 mm Lamp mercury content: 0.0 mg Energy consumption: 22 kWh/1000h ILCOS: HRGS//UB-20-12-GU4-35/10 Burning position: Any Rated wattage: 20.00 W « hide more

€ 4,13 € 4,13 ex. VAT

DECOSTAR 35 TITAN 20 W 12 V 36° GU4

Karta produktu PDF

Electrico24 code: 55759 | Osram code: 4050300529325 Construction wattage [PICOS]: 20.00 W Nominal voltage: 12 V Nominal wattage: 20.00 W Rated useful luminous flux 90°: 220 lm Beam angle: 36 ° Outer bulb: MR35 Number of switching cycles: 100000 Order reference: 46890 WFL 20W 1 Luminous intensity: 700 cd Nominal useful luminous flux 90°: 220 lm Energy consumption: 22 kWh/1000h ILCOS: HRGS//UB-20-12-GU4-35/36

€ 4,13 € 4,13 ex. VAT

DECOSTAR 35 TITAN 35 W 12 V 36° GU4

Karta produktu PDF

Electrico24 code: 55761 | Osram code: 4050300529363 Construction wattage [PICOS]: 35.00 W Nominal voltage: 12.0 V Nominal wattage: 35.00 W Rated useful luminous flux 90°: 480 lm Beam angle: 36 ° Outer bulb: T9 Number of switching cycles: 100000 Order reference: 46892 WFL 35W 1 Luminous intensity: 1400 cd Nominal useful luminous flux 90°: 480 lm Energy consumption: 38 kWh/1000h ILCOS: HRGS//UB-35-12-GU4-35/36

€ 4,13 € 4,13 ex. VAT

DECOSTAR 35 TITAN 35 W 12 V 10° GU4

Karta produktu PDF

Electrico24 code: 55760 | Osram code: 4050300529349 Construction wattage [PICOS]: 35.00 W Nominal voltage: 12.0 V Nominal wattage: 35.00 W Rated useful luminous flux 90°: 480 lm Beam angle: 10 ° Outer bulb: T9 Number of switching cycles: 1000000 Order reference: 46892 SP 35W 12 Luminous intensity: 6200 cd Nominal useful luminous flux 90°: 480 lm Energy consumption: 38 kWh/1000h ILCOS: HRGS//UB-35-12-GU4-35/10

€ 5,15 € 5,15 ex. VAT

Description / FAQ Warranty

Electrical data
Power factor λ	1.00
Photometrical data
Color temperature	3000 K
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Starting time	0.0 s
Warm-up time (60 %)	0.00 s

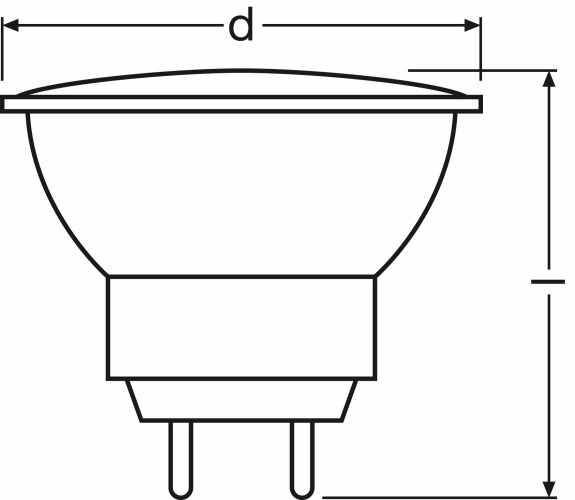

Dimensions & weight
Overall length	42.0 mm
Diameter	35.0 mm
Length	40.0 mm
Maximum diameter	35.0 mm
Lifespan
Nominal lamp life time	4000 h
Rated lamp life time	4000 h
Lumen main.fact.at end of nom.life time	0.75
Additional product data
Base (standard designation)	GU4
Mercury-free	Yes
Lamp mercury content	0.0 mg
Capabilities
Dimmable	Yes
Burning position	Any
Certificates & standards
Energy efficiency class	B

Product benefits

Brilliant accent light
Constant bluish appearance of the light escaping at the back of the reflector
Dichroic reflector reduces the heat in the light beam by up to 66 %
Constant luminous intensity and constant color location throughout
Flat clear shield
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Contains no mercury

Areas of application

General illumination
Shops
Restaurants, hotels and similar prestigious applications
Offices, public buildings

Product features

Average life: 4,000 h
Dimmable
Color rendering index Ra: 100
Color temperature: 3,000 K
