Electrical data |
|
| Construction wattage [PICOS] | 24.00 W |
| Nominal wattage | 24.00 W |
| Rated wattage | 18.00 W |

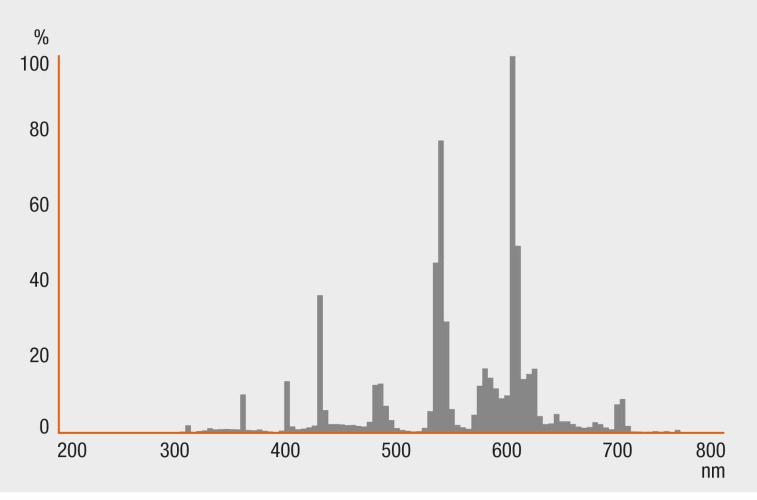

Photometrical data |
|
| Color temperature | 3000 K |
| Nominal luminous flux | 1675 lm |
| Rated luminous flux | 1675 lm |
| Light color as per EN 12464-1 | LUMILUX Warm White |
| Color rendering index Ra | 80 89 |
| Light color | 830 |
| Luminous flux at 25 °C | 1800 lm |
| Rated LLMF at 4,000 h | 0.90 |
| Rated LLMF at 6,000 h | 0.88 |
| Rated LLMF at 8,000 h | 0.86 |
| Rated LLMF at 12,000 h | 0.84 |
| Luminance | 2.1 cd/cm² |
| Rated LLMF at 16,000 h | 0.81 |
| Rated LLMF at 20,000 h | 0.80 |

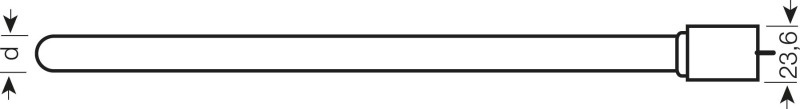

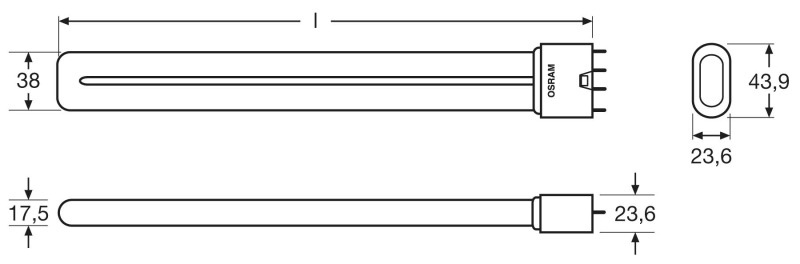

Dimensions & weight |
|
| Overall length | 309.0 mm |
| Length | 309.0 mm |
| Product weight | 75.00 g |
| Tube diameter | 17.5 mm |
| Length with base excl. base pins/connection | 309.00 mm |
Lifespan |
|
| Nominal lamp life time | 20000 h |
| Rated lamp life time | 20000 h |
| Lifespan | 20000 h |
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.99 |
| Rated lamp survival factor at 6,000 h | 0.99 |
| Service life | 13000 h |
| Operation mode LLMF/LSF | HF |
| Rated lamp survival factor at 8,000 h | 0.99 |
| Rated lamp survival factor at 12,000 h | 0.95 |
| Rated lamp survival factor at 16,000 h | 0.81 |
| Rated lamp survival factor at 20,000 h | 0.50 |
Additional product data |
|

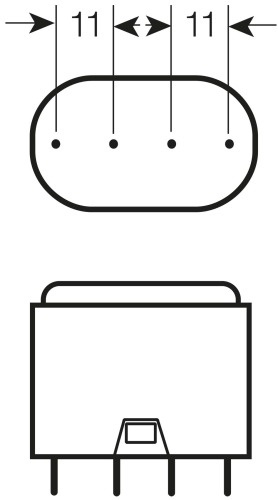

| Base (standard designation) | 2G11 |
| Appropriate disposal acc. to WEEE | Yes |
| Lamp mercury content | 1.7 mg |
Capabilities |
|
| Suitable for indoor | Yes |
Certificates & standards |
|
| Energy efficiency class | A |
| Energy consumption | 27 kWh/1000h |
Country specific categorizations |
|
| ILCOS | FSD//L-24/830-E-2G11-43,9/309 |
Temperatures |
|
| Rated ambient temp.w.max.luminous flux | 5.0 °C |
Product benefits
Areas of application
Product features
Equipment / Accessories
Safety advice
In case of lamp breakage: www.osram.com/brokenlamp
Osram https://www.electrico24.eu/uploads/producer_logos/d83bdb510944b8ad8743f3d191f9d801.png

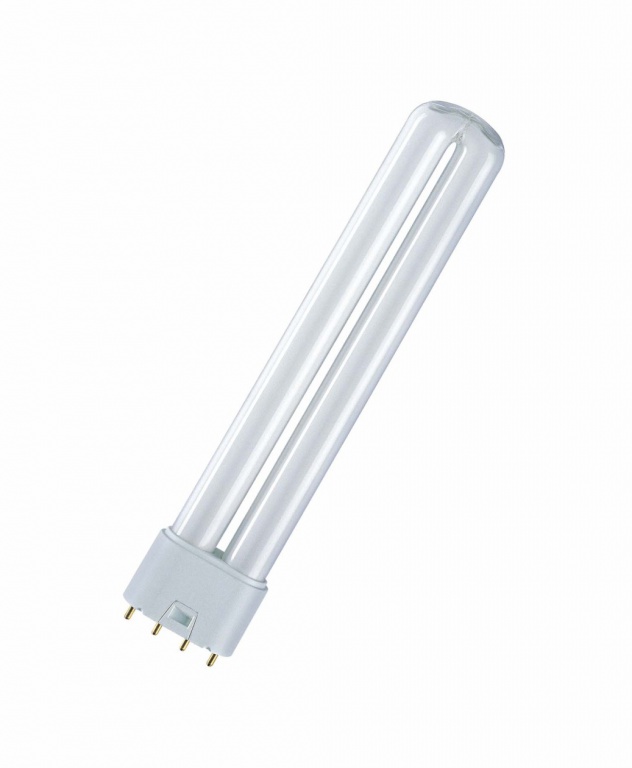

Fluorescent Lamp DULUX L SP
