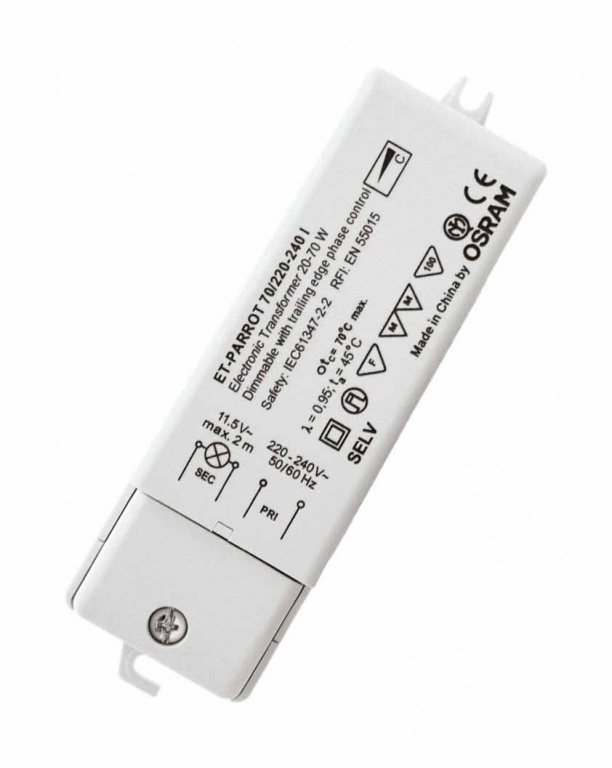

ET-PARROT Electronic transformers for low-voltage halogen lamps Transformers for Halogen Lamps

Unavailable

Operating frequency 40 kHz
Power factor λ 0.95
Input voltage AC 220240 V
Mains frequency 5060 Hz
Nominal output voltage 11.7 / 11.9 V
ECG efficiency 94 %
Inrush current 0.8 A
Max. no. of ECGs on circuit breaker 10 A 16
Galvanic isolation primary/secondary 4.00 kV
Max. no. of ECGs on circuit breaker 16 A 26
Input voltage range AC 198254 V
Lamp wattage 50150 W
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Electrical data
Operating frequency	40 kHz
Power factor λ	0.95
Input voltage AC	220240 V
Mains frequency	5060 Hz
Nominal output voltage	11.7 / 11.9 V
ECG efficiency	94 %
Inrush current	0.8 A
Max. no. of ECGs on circuit breaker 10 A	16
Galvanic isolation primary/secondary	4.00 kV
Max. no. of ECGs on circuit breaker 16 A	26
Input voltage range AC	198254 V
Lamp wattage	50150 W
Line current	0.65 A
System wattage	159.00 W

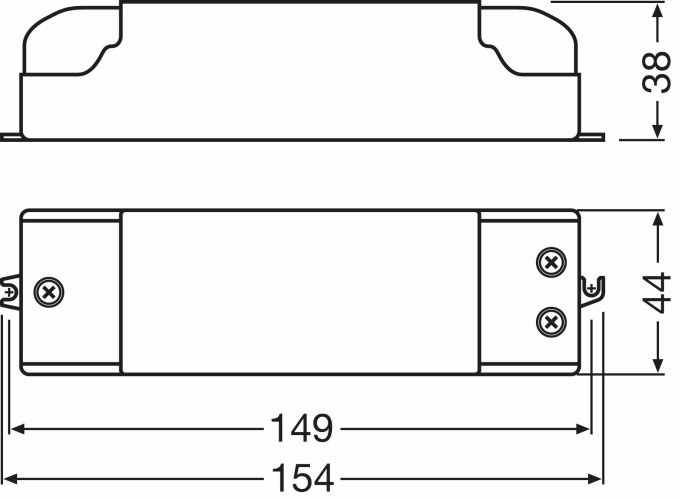

Dimensions & weight
Length	154.0 mm
Width	44.0 mm
Height	38.0 mm
Mounting hole spacing, length	149.0 mm
Cable cross-section, input side	0.75 mm²
Product weight	180.00 g
Cable cross-section, output side	1.5 mm²
Wire preparation length, input side	12 / 6.0 mm
Wire preparation length, output side	12 / 6.0 mm
Additional product data
Design / version	Compact
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	II
Overheating protection	Automatic reversible
Max. cable length to lamp/LED module	2.0 m
No-load proof	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Dimming range	0100 %
Cable types, input side	H03VV-F 2x0.50 / H03VV-F 2x0.75 mm²
Cable types, output side	H03VV-F 2x0.75 / H05VVH2-F 2x0.75 / H05VV-F 2x1.5 mm²
Dimming method	Trailing-edge phase control
Certificates & standards
Approval marks approval	VDE / GOST
Standards	acc. to EN 61347/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547
Type of protection	IP20
Temperatures
Ambient temperature range	0+40 °C
Maximum temperature at tc test point	85 °C

Product benefits

Trailing-edge phase dimming
Very low power loss thanks to high efficacy
Protective operation throughout the entire partial-load range for long lamp life

Areas of application

Effect and accent lighting
Living rooms
Object lighting
Conference rooms
Restaurants
Recessed and surface-mounted furniture fixtures
Shop lighting
Event rooms

Product features

Line frequency: 50…60 Hz
RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547
Energy efficiency: ≥ 91 % (according to ErP regulation 2012/1194/EC)
Safety: to EN 61347
Short-circuit protection, overload protection, overtemperature protection: electronically reversible
Electrical isolation between the primary side and the secondary side
Switching between electronic transformer and lamp not permitted
