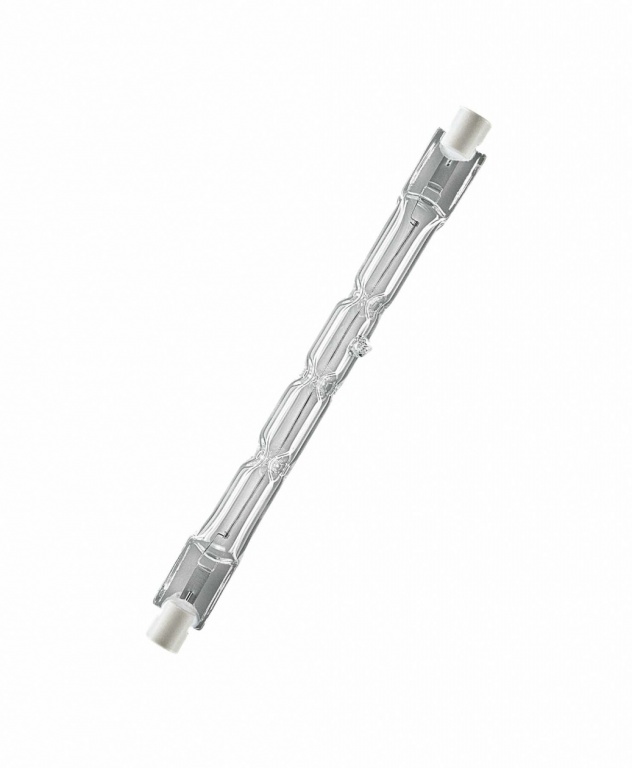

Lamp HALOLINE ECO Halogen Lamps R7s

From € 4,71 incl. VAT
From € 4,71 ex. VAT

See variants (6)

Nominal voltage 230 V
Power factor λ 1.00
Light color as per EN 12464-1 Warm White
Color rendering index Ra 100
Starting time 0.0 s
Warm-up time (60 %) 0.00 s
Diameter 12.0 mm
Outer bulb T12
Nominal lamp life time 2000 h
Rated lamp life time 2000 h
Number of switching cycles 50000
Lumen main.fact.at end of nom.life time 0.80
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 6

HALOLINE ECO 120 W 230 V R7S

Karta produktu PDF

Electrico24 code: 55818 | Osram code: 4008321928092 Construction wattage [PICOS]: 120.00 W Claimed equiv. conventional lamp power: 150 W Nominal wattage: 120.00 W Color temperature: 2950 K Nominal luminous flux: 2250 lm Rated luminous flux: 2250 lm Overall length: 74.9 mm Length: 80.3 mm Energy efficiency class: C Order reference: 64695 ECO 120W see more »

Energy consumption: 120 kWh/1000h ILCOS: HDG-120-230-R7s-74,9 Product remark: Fuse protection with indicated values recommended acc. to IEC60357, EN60357/For outdoor applications and operation in damp locations special approved fixtures are required « hide more

€ 4,71 € 4,71 ex. VAT

HALOLINE ECO 48 W 230 V R7S

Karta produktu PDF

Electrico24 code: 56730 | Osram code: 4008321977595 Claimed equiv. conventional lamp power: 60 W Nominal voltage: 230 V Nominal wattage: 48.00 W Color temperature: 2800 K Nominal luminous flux: 750 lm Power factor λ: 1.00 Rated luminous flux: 750 lm Light color as per EN 12464-1: Warm White Starting time: 0.0 s Warm-up time (60 %): 0.00 s see more »

Overall length: 74.9 mm Diameter: 12.0 mm Length: 74.9 mm Outer bulb: T12 Nominal lamp life time: 2000 h Rated lamp life time: 2000 h Base (standard designation): R7s Mercury-free: Yes Number of switching cycles: 50000 Dimmable: Yes Energy efficiency class: C Order reference: 64684 ECO 48W 2 Color rendering index Ra: 100 Lumen main.fact.at end of nom.life time: 0.80 Lamp mercury content: 0.0 mg Energy consumption: 48 kWh/1000h ILCOS: HDG-48-230-R7s-74,9 Burning position: Any Fuse, quick-acting: 2.0 A Product remark: Fuse protection with indicated values recommended acc. to IEC60357, EN60357/For outdoor applications and operation in damp locations special approved fixtures are required/Technical and light values are subject to be changed Rated wattage: 48.00 W « hide more

€ 4,71 € 4,71 ex. VAT

HALOLINE ECO 80 W 230 V R7S

Karta produktu PDF

Electrico24 code: 55817 | Osram code: 4008321928078 Construction wattage [PICOS]: 80.00 W Claimed equiv. conventional lamp power: 100 W Nominal wattage: 80.00 W Color temperature: 2950 K Nominal luminous flux: 1400 lm Rated luminous flux: 1400 lm Overall length: 74.9 mm Length: 80.3 mm Energy efficiency class: D Order reference: 64690 ECO 80W 2 see more »

Energy consumption: 80 kWh/1000h ILCOS: HDG-80-230-R7s-74,9 Product remark: Fuse protection with indicated values recommended acc. to IEC60357, EN60357/For outdoor applications and operation in damp locations special approved fixtures are required « hide more

€ 4,71 € 4,71 ex. VAT

HALOLINE ECO 120 W 230 V R7S

Karta produktu PDF

Electrico24 code: 55819 | Osram code: 4008321977670 Construction wattage [PICOS]: 120.00 W Claimed equiv. conventional lamp power: 150 W Nominal wattage: 120.00 W Color temperature: 2900 K Nominal luminous flux: 2250 lm Rated luminous flux: 2250 lm Overall length: 114.2 mm Length: 114.2 mm Energy efficiency class: D Order reference: 64696 ECO 120W see more »

Energy consumption: 120 kWh/1000h ILCOS: HDG-120-230-R7s-114,2 Product remark: Fuse protection with indicated values recommended acc. to IEC60357, EN60357/For outdoor applications and operation in damp locations special approved fixtures are required/Technical and light values are subject to be changed « hide more

€ 5,38 € 5,38 ex. VAT

HALOLINE ECO 230 W 230 V R7S

Karta produktu PDF

Electrico24 code: 55820 | Osram code: 4008321207692 Construction wattage [PICOS]: 230.00 W Claimed equiv. conventional lamp power: 300 W Nominal wattage: 230.00 W Color temperature: 2950 K Nominal luminous flux: 5000 lm Rated luminous flux: 5000 lm Overall length: 114.2 mm Length: 119.6 mm Energy efficiency class: C Order reference: 64701 ECO 230W see more »

Energy consumption: 230 kWh/1000h ILCOS: HDG-230-230-R7s-114,2 Product remark: Fuse protection with indicated values recommended acc. to IEC60357, EN60357/For outdoor applications and operation in damp locations special approved fixtures are required « hide more

€ 5,38 € 5,38 ex. VAT

HALOLINE ECO 400 W 230 V R7S

Karta produktu PDF

Electrico24 code: 55821 | Osram code: 4008321207715 Construction wattage [PICOS]: 400.00 W Claimed equiv. conventional lamp power: 500 W Nominal wattage: 400.00 W Color temperature: 3000 K Nominal luminous flux: 9000 lm Rated luminous flux: 9000 lm Overall length: 114.2 mm Length: 119.6 mm Energy efficiency class: C Order reference: 64702 ECO 400W see more »

Energy consumption: 400 kWh/1000h ILCOS: HDG-400-230-R7s-114,2 Product remark: Fuse protection with indicated values recommended acc. to IEC60357, EN60357/For outdoor applications and operation in damp locations special approved fixtures are required « hide more

€ 5,38 € 5,38 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	230 V
Power factor λ	1.00
Photometrical data
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Starting time	0.0 s
Warm-up time (60 %)	0.00 s

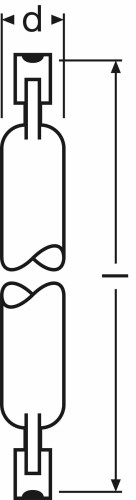

Dimensions & weight
Diameter	12.0 mm
Outer bulb	T12
Lifespan
Nominal lamp life time	2000 h
Rated lamp life time	2000 h
Number of switching cycles	50000
Lumen main.fact.at end of nom.life time	0.80
Additional product data
Base (standard designation)	R7s
Mercury-free	Yes
Lamp mercury content	0.0 mg
Capabilities
Dimmable	Yes
Burning position	Any
Fuse, quick-acting	2.0 A

Product benefits

Brilliant ECO accent lighting
Direct replacement for standard tubular halogen lamps
Significantly lower CO2 emissions
Lower thermal output (compared with the standard reference product)
No transformer required
Contains no mercury

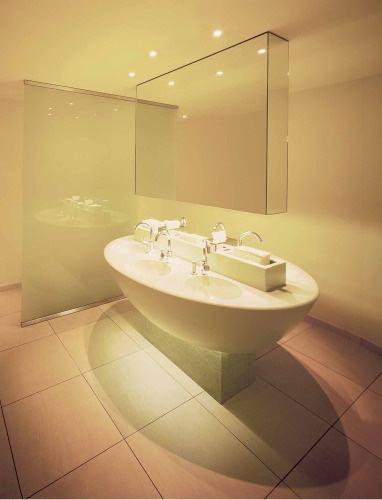

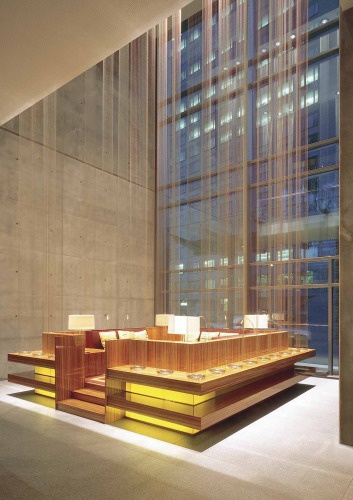

Areas of application

General illumination
Entrance lighting
Pathway lighting
Outdoor applications only in suitable luminaires
Traffic areas
Shops
Restaurants, hotels and similar prestigious applications
Offices, public buildings

Product features

Average life: 2,000 h
Dimmable
Color rendering index Ra: 100
