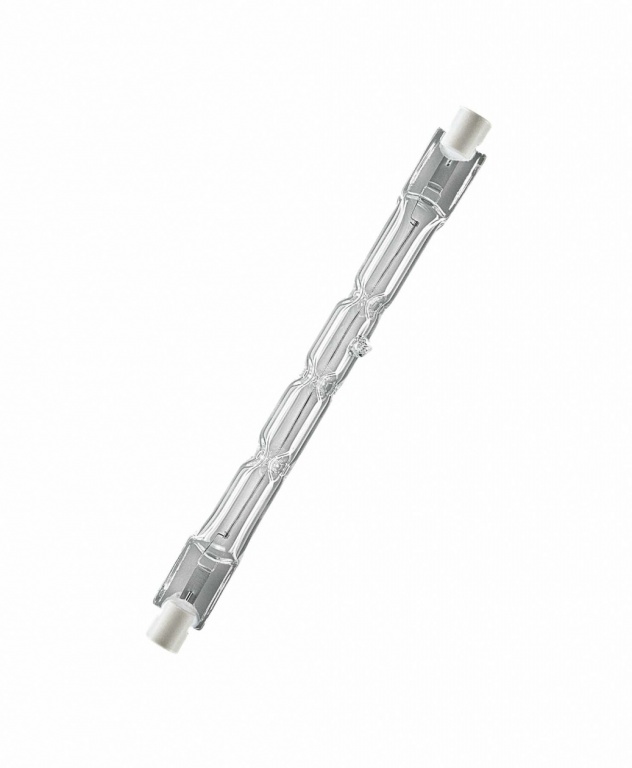

Halogen lamp HALOLINE Standard Halogen Lamps R7s

From € 10,38 incl. VAT
From € 10,38 ex. VAT

See variants (4)

Nominal voltage 230 V
Power factor λ 1.00
Color temperature 2900 K
Light color as per EN 12464-1 Warm White
Color rendering index Ra 100
Starting time 0.0 s
Warm-up time (60 %) 0.00 s
Diameter 12.0 mm
Outer bulb T12
Nominal lamp life time 2000 h
Rated lamp life time 2000 h
Number of switching cycles 50000
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

HALOLINE 1000 W 230 V R7S

Karta produktu PDF

Electrico24 code: 55717 | Osram code: 4050300004174 Construction wattage [PICOS]: 1000.00 W Claimed equiv. conventional lamp power: 1000 W Nominal wattage: 1000.00 W Nominal luminous flux: 22000 lm Rated luminous flux: 22000 lm Overall length: 185.7 mm Length: 191.1 mm Base (standard designation): R7s Order reference: 64740 1000W 230 Energy consumption: 1000 kWh/1000h ILCOS: HDG-1000-230-R7s-191,1 Fuse, quick-acting: 6.3 A

€ 10,38 € 10,38 ex. VAT

HALOLINE 1500 W 230 V R7S

Karta produktu PDF

Electrico24 code: 55718 | Osram code: 4050300004181 Construction wattage [PICOS]: 1500.00 W Claimed equiv. conventional lamp power: 1500 W Nominal wattage: 1500.00 W Nominal luminous flux: 33000 lm Rated luminous flux: 33000 lm Overall length: 250.7 mm Length: 256.1 mm Base (standard designation): R7s Order reference: 64760 1500W 230 Energy consumption: 1500 kWh/1000h ILCOS: HDG-1500-230-R7s-256,1 Fuse, quick-acting: 10.0 A

€ 10,38 € 10,38 ex. VAT

HALOLINE 750 W 230 V R7S

Karta produktu PDF

Electrico24 code: 56729 | Osram code: 4050300004167 Claimed equiv. conventional lamp power: 750 W Nominal voltage: 230 V Nominal wattage: 750.00 W Color temperature: 2900 K Nominal luminous flux: 16500 lm Power factor λ: 1.00 Rated luminous flux: 16500 lm Light color as per EN 12464-1: Warm White Starting time: 0.0 s Warm-up time (60 %): 0.00 s see more »

Overall length: 185.7 mm Diameter: 12.0 mm Length: 191.1 mm Outer bulb: T12 Nominal lamp life time: 2000 h Rated lamp life time: 2000 h Base (standard designation): R7s Mercury-free: Yes Number of switching cycles: 50000 Dimmable: Yes Energy efficiency class: C Order reference: 64560 750W 230V Color rendering index Ra: 100 Lumen main.fact.at end of nom.life time: 0.80 Lamp mercury content: 0.0 mg Energy consumption: 750 kWh/1000h ILCOS: HDG-750-230-R7s-191,1 Burning position: p15 Fuse, quick-acting: 6.3 A Product remark: Fuse protection with indicated values recommended acc. to IEC60357, EN60357/For outdoor applications and operation in damp locations special approved fixtures are required Non-standard conditions: P 15 Rated wattage: 750.00 W « hide more

€ 10,38 € 10,38 ex. VAT

HALOLINE 2000 W 230 V R7S

Karta produktu PDF

Electrico24 code: 55720 | Osram code: 4050300004204 Construction wattage [PICOS]: 2000.00 W Claimed equiv. conventional lamp power: 2000 W Nominal wattage: 2000.00 W Nominal luminous flux: 44000 lm Rated luminous flux: 44000 lm Overall length: 327.4 mm Length: 333.0 mm Base (standard designation): R7s Order reference: 64784 2000W 230 Energy consumption: 2000 kWh/1000h ILCOS: HDG-2000-230-R7s-333 Fuse, quick-acting: 10.0 A

€ 17,50 € 17,50 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	230 V
Power factor λ	1.00
Photometrical data
Color temperature	2900 K
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Starting time	0.0 s
Warm-up time (60 %)	0.00 s
Dimensions & weight

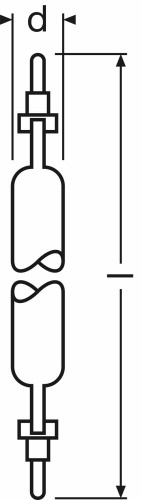

Diameter	12.0 mm
Outer bulb	T12
Lifespan
Nominal lamp life time	2000 h
Rated lamp life time	2000 h
Number of switching cycles	50000
Lumen main.fact.at end of nom.life time	0.80
Additional product data
Mercury-free	Yes
Lamp mercury content	0.0 mg
Product remark	Fuse protection with indicated values recommended acc. to IEC60357, EN60357/For outdoor applications and operation in damp locations special approved fixtures are required
Capabilities
Dimmable	Yes
Burning position	p15
Non-standard conditions	P 15
Certificates & standards
Energy efficiency class	C

Product benefits

Brilliant accent light
No transformer required
Contains no mercury

Areas of application

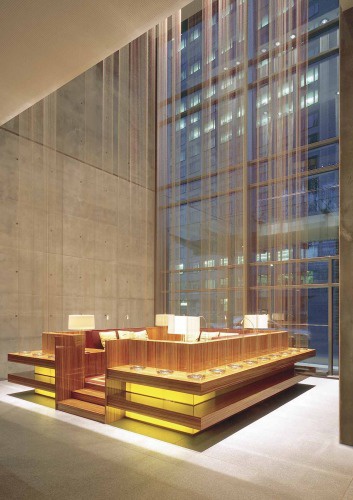

Ideal for emphasizing and accentuating buildings
General illumination
Entrance lighting
Pathway lighting
Garden lighting
Traffic areas
Shops
Restaurants, hotels and similar prestigious applications

Product features

Average life: 2,000 h
100 % dimmable
Color rendering index Ra: 100
Color temperature: 3,000 K
Burning position: p15
