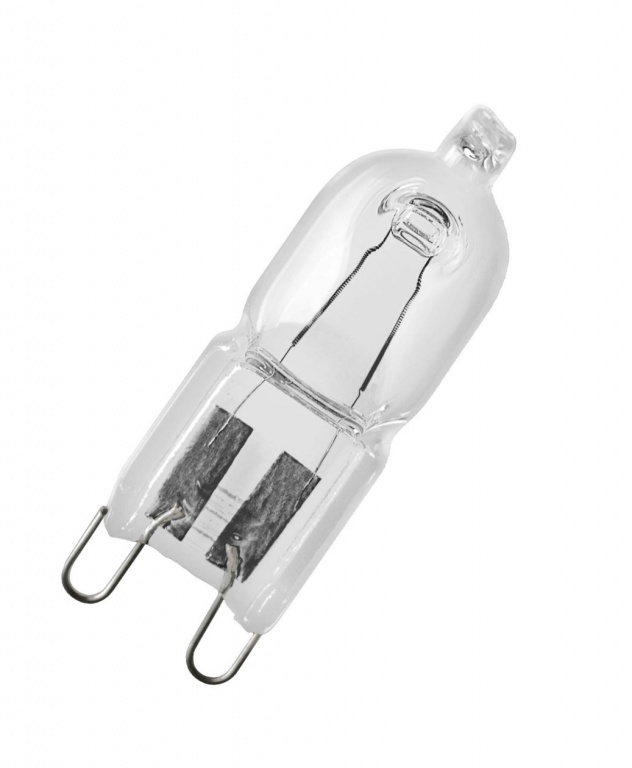

Halogen lamp HALOPIN ECO Halogen Lamps G9

Price € 4,54 € 4,54 ex. VAT

See variants (4)

Light color as per EN 12464-1 Warm White
Color rendering index Ra 100
Starting time 0.0 s
Outer bulb T13,3
Light center length (LCL) 22.0 mm
Nominal lamp life time 2000 h
Rated lamp life time 2000 h
Number of switching cycles 50000
Base (standard designation) G9
Mercury-free Yes
Lamp mercury content 0.0 mg
Dimmable Yes
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

HALOPIN ECO 20 W 230 V G9

Karta produktu PDF

Electrico24 code: 56738 | Osram code: 4008321945273 Claimed equiv. conventional lamp power: 25 W Nominal voltage: 230.0 V Nominal wattage: 20.00 W Color temperature: 2700 K Nominal luminous flux: 235 lm Power factor λ: 1.00 Rated luminous flux: 235 lm Light color as per EN 12464-1: Warm White Starting time: 0.0 s Warm-up time (60 %): 0.00 s see more »

Overall length: 43.0 mm Diameter: 14.0 mm Length: 43.0 mm Outer bulb: T13,3 Nominal lamp life time: 2000 h Rated lamp life time: 2000 h Base (standard designation): G9 Mercury-free: Yes Number of switching cycles: 50000 Dimmable: Yes Energy efficiency class: D Order reference: 66720 ECO 20W 2 Color rendering index Ra: 100 Lumen main.fact.at end of nom.life time: 0.80 Lamp mercury content: 0.0 mg Energy consumption: 20 kWh/1000h ILCOS: HSGST/C/UB-20-230-G9-22 Light center length (LCL): 22.0 mm Burning position: Any Rated wattage: 20.00 W « hide more

€ 4,54 € 4,54 ex. VAT

HALOPIN ECO 33 W 230 V G9

Karta produktu PDF

Electrico24 code: 55837 | Osram code: 4008321208668 Construction wattage [PICOS]: 33.00 W Claimed equiv. conventional lamp power: 40 W Nominal voltage: 230.0 V Nominal wattage: 33.00 W Color temperature: 2700 K Nominal luminous flux: 460 lm Overall length: 43.0 mm Diameter: 14.0 mm Length: 43.0 mm Order reference: 66733 ECO 33W 2 Energy consumption: 33 kWh/1000h ILCOS: HSGST/C/UB-33-230-G9-22

€ 4,54 € 4,54 ex. VAT

HALOPIN ECO 48 W 230 V G9

Karta produktu PDF

Electrico24 code: 55838 | Osram code: 4008321945334 Construction wattage [PICOS]: 48.00 W Claimed equiv. conventional lamp power: 60 W Nominal voltage: 230 V Nominal wattage: 48.00 W Color temperature: 2800 K Nominal luminous flux: 740 lm Rated luminous flux: 740 lm Overall length: 46.1 mm Diameter: 13.3 mm Length: 46.1 mm see more »

Order reference: 66748 ECO 48W 2 Energy consumption: 48 kWh/1000h ILCOS: HSGST/C/UB-48-230-G9-22 « hide more

€ 4,54 € 4,54 ex. VAT

HALOPIN ECO 60 W 230 V G9

Karta produktu PDF

Electrico24 code: 55839 | Osram code: 4008321945372 Construction wattage [PICOS]: 60.00 W Claimed equiv. conventional lamp power: 75 W Nominal voltage: 230 V Nominal wattage: 60.00 W Color temperature: 2800 K Nominal luminous flux: 980 lm Power factor λ: 1.00 Rated luminous flux: 980 lm Warm-up time (60 %): 0.00 s Overall length: 46.0 mm see more »

Diameter: 14.0 mm Length: 51.0 mm Order reference: 66760 ECO 60W 2 Lumen main.fact.at end of nom.life time: 0.80 Energy consumption: 60 kWh/1000h ILCOS: HSGST/C/UB-60-230-G9-22 « hide more

€ 4,54 € 4,54 ex. VAT

Description / FAQ Warranty

Photometrical data
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Starting time	0.0 s

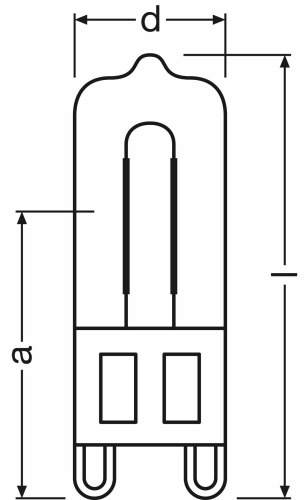

Dimensions & weight
Outer bulb	T13,3
Light center length (LCL)	22.0 mm
Lifespan
Nominal lamp life time	2000 h
Rated lamp life time	2000 h
Number of switching cycles	50000
Additional product data
Base (standard designation)	G9
Mercury-free	Yes
Lamp mercury content	0.0 mg
Capabilities
Dimmable	Yes
Burning position	Any
Certificates & standards
Energy efficiency class	D

Product benefits

Brilliant ECO accent lighting
Incredibly small dimensions for revolutionary new luminaire designs
Robust filament design thanks to innovative, unique bulb pinch technology
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Complies with IEC 60432-2 thanks to integrated fuse function
Lower thermal output (compared with the standard reference product)

Areas of application

General illumination
Workplace lighting
Lighting for reading
Dining table lighting
Mirror lighting
Accent lighting
Mood lighting

Product features

Average life: 2,000 h
Dimmable
Color rendering index Ra: 100
