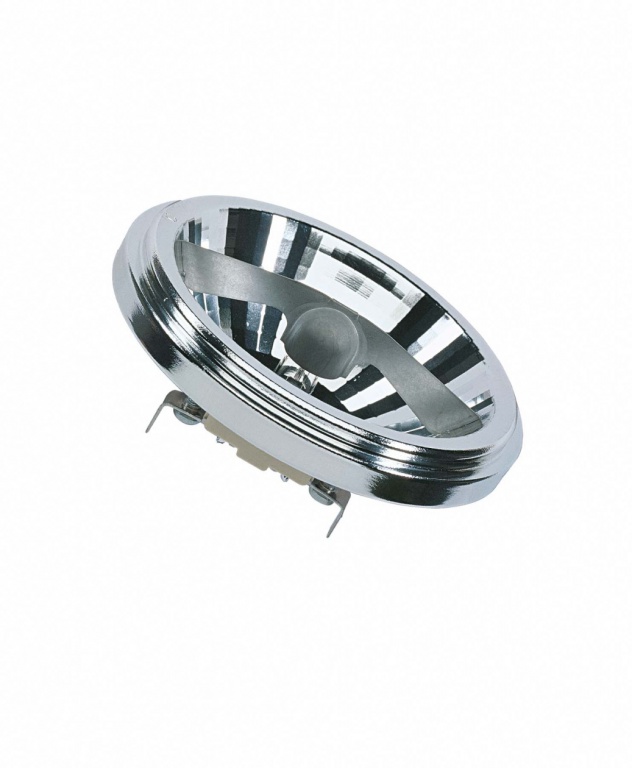

HALOSPOT 111 50 W 12 V 45° G53 Halogen Lamps G53 / AR111

Electrico24 code: 55726 | Osram code: 4008321909213

Price € 7,57 incl. VAT
€ 7,57 netto

Construction wattage [PICOS] 50.00 W
Nominal wattage 50.00 W
Color temperature 2900 K
Rated useful luminous flux 90° 510 lm
Beam angle 40 °
Overall length 61.0 mm
Energy efficiency class C
Order reference 41835 WFL 50W 1
Luminous intensity 1400 cd
Nominal useful luminous flux 90° 510 lm
Energy consumption 53 kWh/1000h
ILCOS HMGS//UB-50-12-G53-111/40
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 13

HALOSPOT 111 35 W 12 V 24° G53

Karta produktu PDF

Electrico24 code: 55721 | Osram code: 4050300335766 Construction wattage [PICOS]: 35.00 W Nominal wattage: 35.00 W Color temperature: 2800 K Rated useful luminous flux 90°: 320 lm Beam angle: 24 ° Overall length: 60.0 mm Energy efficiency class: C Order reference: 41832 FL 35W 12 Luminous intensity: 2500 cd Nominal useful luminous flux 90°: 320 lm Energy consumption: 38 kWh/1000h ILCOS: HMGS//UB-35-12-G53-111/24

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 35 W 12 V 4° G53

Karta produktu PDF

Electrico24 code: 55722 | Osram code: 4050300335728 Construction wattage [PICOS]: 35.00 W Nominal wattage: 35.00 W Color temperature: 3000 K Rated useful luminous flux 90°: 320 lm Beam angle: 4 ° Overall length: 60.0 mm Energy efficiency class: B Order reference: 41832 SSP 35W 1 Luminous intensity: 30000 cd Nominal useful luminous flux 90°: 320 lm Energy consumption: 38 kWh/1000h ILCOS: HMGS//UB-35-12-G53-111/4

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 35 W 6 V 4° G53

Karta produktu PDF

Electrico24 code: 56701 | Osram code: 4050300011141 Nominal voltage: 6 V Nominal wattage: 35.00 W Color temperature: 3000 K Power factor λ: 1.00 Light color as per EN 12464-1: Warm White Rated useful luminous flux 90°: 320 lm Beam angle: 4 ° Starting time: 0.0 s Warm-up time (60 %): 0.00 s Overall length: 60.0 mm see more »

Diameter: 111.0 mm Length: 67.0 mm Outer bulb: AR111 Nominal lamp life time: 3000 h Rated lamp life time: 3000 h Base (standard designation): G53 Mercury-free: Yes Number of switching cycles: 75000 Dimmable: Yes Energy efficiency class: C Order reference: 41830 SSP 35W 6 Color rendering index Ra: 100 Luminous intensity: 30000 cd Nominal useful luminous flux 90°: 320 lm Lumen main.fact.at end of nom.life time: 0.75 Maximum diameter: 111.0 mm Lamp mercury content: 0.0 mg Energy consumption: 38 kWh/1000h ILCOS: HMGS//UB-35-6-G53-111/4 Burning position: Any Product remark: If connectors are used, an additional holder is required at the rim of the reflector/May produce noise in combination with some dimmers. Recommended solution: use OSRAM HTi DALI 150/230-240 DIM with OSRAM DALI MCU Rated wattage: 35.00 W « hide more

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 50 W 12 V 24° G53

Karta produktu PDF

Electrico24 code: 55723 | Osram code: 4050300011769 Construction wattage [PICOS]: 50.00 W Nominal wattage: 50.00 W Color temperature: 2900 K Rated useful luminous flux 90°: 510 lm Beam angle: 24 ° Overall length: 61.0 mm Energy efficiency class: C Order reference: 41835 FL 50W 12 Luminous intensity: 4000 cd Nominal useful luminous flux 90°: 510 lm Energy consumption: 53 kWh/1000h ILCOS: HMGS//UB-50-12-G53-111/24

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 50 W 12 V 45° G53 (currently dislayed)

Karta produktu PDF

Electrico24 code: 55726 | Osram code: 4008321909213 Construction wattage [PICOS]: 50.00 W Nominal wattage: 50.00 W Color temperature: 2900 K Rated useful luminous flux 90°: 510 lm Beam angle: 40 ° Overall length: 61.0 mm Energy efficiency class: C Order reference: 41835 WFL 50W 1 Luminous intensity: 1400 cd Nominal useful luminous flux 90°: 510 lm Energy consumption: 53 kWh/1000h ILCOS: HMGS//UB-50-12-G53-111/40

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 50 W 12 V 4° G53

Karta produktu PDF

Electrico24 code: 55725 | Osram code: 4050300011165 Construction wattage [PICOS]: 50.00 W Nominal wattage: 50.00 W Color temperature: 2900 K Rated useful luminous flux 90°: 510 lm Beam angle: 4 ° Overall length: 60.0 mm Energy efficiency class: B Order reference: 41835 SSP 50W 1 Luminous intensity: 40000 cd Nominal useful luminous flux 90°: 510 lm Energy consumption: 53 kWh/1000h ILCOS: HMGS//UB-50-12-G53-111/4

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 50 W 12 V 6° G53

Karta produktu PDF

Electrico24 code: 55724 | Osram code: 4050300011752 Construction wattage [PICOS]: 50.00 W Nominal wattage: 50.00 W Color temperature: 3000 K Rated useful luminous flux 90°: 510 lm Beam angle: 6 ° Overall length: 60.0 mm Energy efficiency class: B Order reference: 41835 SP 50W 12 Luminous intensity: 17000 cd Nominal useful luminous flux 90°: 510 lm Energy consumption: 53 kWh/1000h ILCOS: HMGS//UB-50-12-G53-111/6

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 75 W 12 V 24° G53

Karta produktu PDF

Electrico24 code: 55727 | Osram code: 4050300011783 Construction wattage [PICOS]: 75.00 W Nominal wattage: 75.00 W Color temperature: 3000 K Rated useful luminous flux 90°: 850 lm Beam angle: 24 ° Overall length: 61.0 mm Energy efficiency class: B Order reference: 41840 FL ND 75W Luminous intensity: 5300 cd Nominal useful luminous flux 90°: 850 lm Energy consumption: 80 kWh/1000h ILCOS: HMGS//UB-75-12-G53-111/24

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 75 W 12 V 45° G53

Karta produktu PDF

Electrico24 code: 55729 | Osram code: 4050300011790 Construction wattage [PICOS]: 75.00 W Nominal wattage: 75.00 W Color temperature: 3000 K Rated useful luminous flux 90°: 850 lm Beam angle: 40 ° Overall length: 60.0 mm Energy efficiency class: B Order reference: 41840 WFL ND 75 Luminous intensity: 2000 cd Nominal useful luminous flux 90°: 850 lm Energy consumption: 80 kWh/1000h ILCOS: HMGS//UB-75-12-G53-111/40

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 75 W 12 V 6° G53

Karta produktu PDF

Electrico24 code: 55728 | Osram code: 4050300011776 Construction wattage [PICOS]: 75.00 W Nominal wattage: 75.00 W Color temperature: 3000 K Rated useful luminous flux 90°: 850 lm Beam angle: 6 ° Overall length: 60.0 mm Energy efficiency class: B Order reference: 41840 SP ND 75W Luminous intensity: 30000 cd Nominal useful luminous flux 90°: 850 lm Energy consumption: 80 kWh/1000h ILCOS: HMGS//UB-75-12-G53-111/6

€ 7,57 € 7,57 ex. VAT

HALOSPOT 111 100 W 12 V 24° G53

Karta produktu PDF

Electrico24 code: 55730 | Osram code: 4050300358628 Construction wattage [PICOS]: 100.00 W Nominal wattage: 100.00 W Color temperature: 3000 K Rated useful luminous flux 90°: 1200 lm Beam angle: 24 ° Overall length: 61.0 mm Energy efficiency class: B Order reference: 41850 FL ND 100 Luminous intensity: 8500 cd Nominal useful luminous flux 90°: 1200 lm Energy consumption: 106 kWh/1000h ILCOS: HMGS//UB-100-12-G53-111/24

€ 10,08 € 10,08 ex. VAT

HALOSPOT 111 100 W 12 V 45° G53

Karta produktu PDF

Electrico24 code: 55732 | Osram code: 4050300358642 Construction wattage [PICOS]: 100.00 W Nominal wattage: 100.00 W Color temperature: 3000 K Rated useful luminous flux 90°: 1200 lm Beam angle: 40 ° Overall length: 60.0 mm Energy efficiency class: C Order reference: 41850 WFL ND 10 Luminous intensity: 2800 cd Nominal useful luminous flux 90°: 1200 lm Energy consumption: 106 kWh/1000h ILCOS: HMGS//UB-100-12-G53-111/40

€ 12,10 € 12,10 ex. VAT

HALOSPOT 111 100 W 12 V 6° G53

Karta produktu PDF

Electrico24 code: 55731 | Osram code: 4050300358604 Construction wattage [PICOS]: 100.00 W Nominal wattage: 100.00 W Color temperature: 3000 K Rated useful luminous flux 90°: 1200 lm Beam angle: 6 ° Overall length: 60.0 mm Energy efficiency class: B Order reference: 41850 SP ND 100 Luminous intensity: 48000 cd Nominal useful luminous flux 90°: 1200 lm Energy consumption: 106 kWh/1000h ILCOS: HMGS//UB-100-12-G53-111/6

€ 12,10 € 12,10 ex. VAT

Description / FAQ Warranty

Construction wattage [PICOS]	50.00 W
Nominal wattage	50.00 W
Color temperature	2900 K
Rated useful luminous flux 90°	510 lm
Beam angle	40 °
Overall length	61.0 mm
Energy efficiency class	C
Order reference	41835 WFL 50W 1
Luminous intensity	1400 cd
Nominal useful luminous flux 90°	510 lm
Energy consumption	53 kWh/1000h
ILCOS	HMGS//UB-50-12-G53-111/40
Electrical data
Nominal voltage	12 V
Power factor λ	1.00
Photometrical data
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Starting time	0.0 s
Warm-up time (60 %)	0.00 s
Dimensions & weight
Diameter	111.0 mm
Length	67.0 mm
Outer bulb	AR111
Maximum diameter	111.0 mm
Lifespan
Nominal lamp life time	3000 h
Rated lamp life time	3000 h
Number of switching cycles	75000
Lumen main.fact.at end of nom.life time	0.75
Additional product data
Base (standard designation)	G53
Mercury-free	Yes
Lamp mercury content	0.0 mg
Product remark	If connectors are used, an additional holder is required at the rim of the reflector/May produce noise in combination with some dimmers. Recommended solution: use OSRAM HTi DALI 150/230-240 DIM with OSRAM DALI MCU
Capabilities
Dimmable	Yes
Burning position	Any

Product benefits

Brilliant accent light
Cap for reduced glare and ease of handling
Burner with axial filament for optimum distribution of light
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Drastically reduced thermal load in fixture thanks to aluminum-coated reflector
Contains no mercury

Areas of application

General illumination
Shops
Restaurants, hotels and similar prestigious applications
Offices, public buildings
Entrance lighting

Product features

Average life: 3,000 h
100 % dimmable
Color rendering index Ra: 100
Diameter: 111 mm
