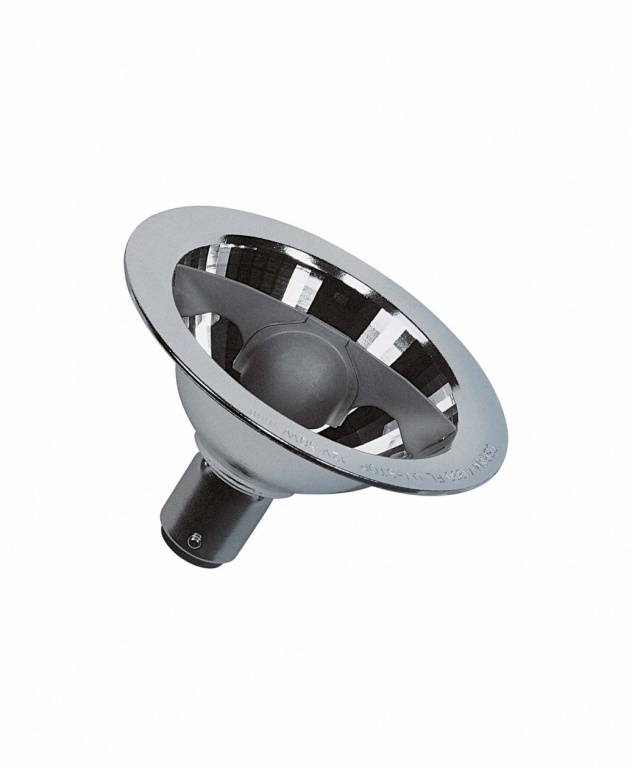

Halogen bulb HALOSPOT 70 Halogen Lamps 12V

From € 7,83 incl. VAT
From € 7,83 ex. VAT

See variants (2)

Nominal voltage 12 V
Power factor λ 1.00
Color temperature 3000 K
Light color as per EN 12464-1 Warm White
Color rendering index Ra 100
Starting time 0.0 s
Warm-up time (60 %) 0.00 s
Overall length 45.6 mm
Diameter 70.5 mm
Length 50.0 mm
Outer bulb AR70
Maximum diameter 71.0 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

HALOSPOT 70 50 W 12 V 24° BA15D

Karta produktu PDF

Electrico24 code: 55737 | Osram code: 4050300004020 Construction wattage [PICOS]: 50.00 W Nominal wattage: 50.00 W Rated useful luminous flux 90°: 510 lm Beam angle: 24 ° Nominal lamp life time: 2000 h Rated lamp life time: 2000 h Energy efficiency class: C Order reference: 41990 FL 50W 12 Luminous intensity: 2600 cd Nominal useful luminous flux 90°: 510 lm Energy consumption: 53 kWh/1000h ILCOS: HMGS//UB-50-12-BA15D-70/24

€ 7,83 € 7,83 ex. VAT

HALOSPOT 70 20 W 12 V 24° BA15D

Karta produktu PDF

Electrico24 code: 55736 | Osram code: 4050300011110 Construction wattage [PICOS]: 20.00 W Nominal wattage: 20.00 W Rated useful luminous flux 90°: 150 lm Beam angle: 24 ° Nominal lamp life time: 3000 h Rated lamp life time: 3000 h Energy efficiency class: C Order reference: 41970 FL 20W 12 Luminous intensity: 900 cd Nominal useful luminous flux 90°: 150 lm Energy consumption: 22 kWh/1000h ILCOS: HMGS//UB-20-12-BA15D-70/24

€ 8,17 € 8,17 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	12 V
Power factor λ	1.00
Photometrical data
Color temperature	3000 K
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Starting time	0.0 s
Warm-up time (60 %)	0.00 s

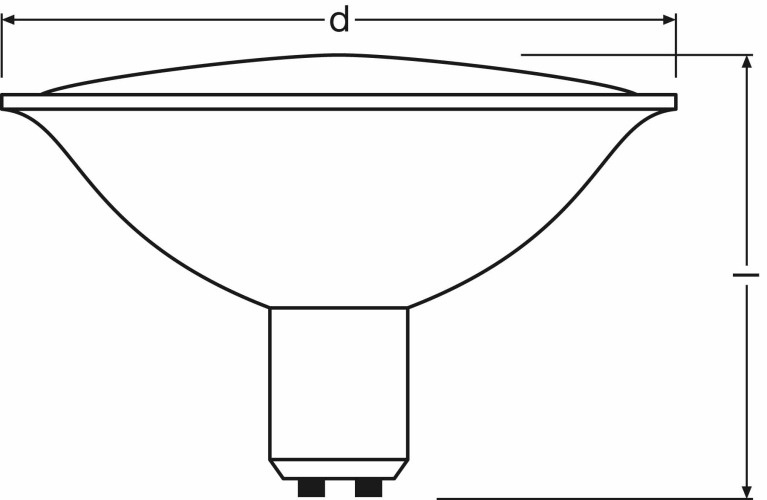

Dimensions & weight
Overall length	45.6 mm
Diameter	70.5 mm
Length	50.0 mm
Outer bulb	AR70
Maximum diameter	71.0 mm
Lifespan
Number of switching cycles	75000
Lumen main.fact.at end of nom.life time	0.75
Additional product data
Base (standard designation)	BA15d
Mercury-free	Yes
Lamp mercury content	0.0 mg
Capabilities
Dimmable	Yes
Burning position	Any

Product benefits

Brilliant accent light
Cap for reduced glare and ease of handling
Excellent distribution of light thanks to facetted reflector
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Drastically reduced thermal load in fixture thanks to aluminum-coated reflector
Contains no mercury

Areas of application

General illumination
Shops
Restaurants, hotels and similar prestigious applications
Offices, public buildings

Product features

Average life: 3,000 h
Dimmable
Color rendering index Ra: 100
Color temperature: 3,000 K
