Halogen lamp HALOSTAR OVEN Halogen Lamps G4

From € 2,49 incl. VAT
From € 2,49 ex. VAT

See variants (2)

Nominal voltage 12 V
Power factor λ 1.00
Color temperature 2800 K
Light color as per EN 12464-1 Warm White
Color rendering index Ra 100
Starting time 0.0 s
Overall length 31.0 mm
Diameter 10.0 mm
Length 33.0 mm
Outer bulb T10
Nominal lamp life time 2000 h
Rated lamp life time 2000 h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

HALOSTAR OVEN 10 W 12 V G4

Karta produktu PDF

Electrico24 code: 55784 | Osram code: 4050300308081 Construction wattage [PICOS]: 10.00 W Nominal wattage: 10.00 W Nominal luminous flux: 140 lm Rated luminous flux: 140 lm Order reference: 64418 10W 12V G ILCOS: HSGT/C/UB-10-12-G4-10/21,5 Light center length (LCL): 21.5 mm

€ 2,49 € 2,49 ex. VAT

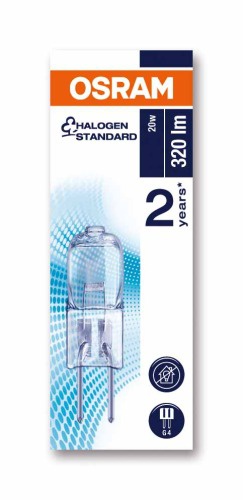

HALOSTAR OVEN 20 W 12 V G4

Karta produktu PDF

Electrico24 code: 55788 | Osram code: 4050300308050 Construction wattage [PICOS]: 20.00 W Nominal wattage: 20.00 W Nominal luminous flux: 320 lm Rated luminous flux: 320 lm Order reference: 64428 20W 12V G ILCOS: HSGST/C/UB-20-12-G4-10/22 Light center length (LCL): 22.0 mm

€ 2,85 € 2,85 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	12 V
Power factor λ	1.00
Photometrical data
Color temperature	2800 K
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Starting time	0.0 s

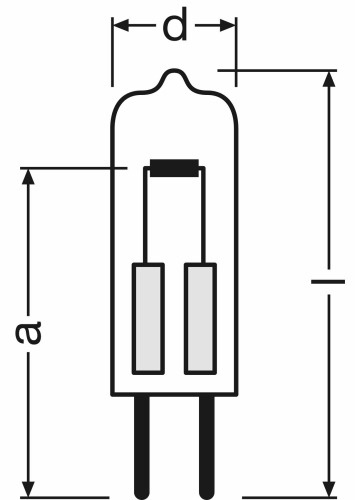

Dimensions & weight
Overall length	31.0 mm
Diameter	10.0 mm
Length	33.0 mm
Outer bulb	T10
Lifespan
Nominal lamp life time	2000 h
Rated lamp life time	2000 h
Number of switching cycles	50000
Lumen main.fact.at end of nom.life time	0.80
Additional product data
Base (standard designation)	G4
Mercury-free	Yes
Lamp mercury content	0.0 mg
Product remark	Lamp suitable for oven with high temperature self cleaning (Lamps must be switched off! Max. ambient temperature 450 °C)/For use in shielded luminaires only
Capabilities
Dimmable	Yes
Burning position	Any
Certificates & standards
Energy efficiency class	C

Product benefits

Two to three times the luminous efficiency of conventional oven lighting
Optimum halogen content for high temperatures
Tempered pins for reliable contact at high temperatures
Suitable for pyrolysis (permissible ambient temperature 450 °C)
Contains no mercury

Areas of application

Baking ovens
