HALOTRONIC-COMPACT HTM, HTN Transformers for Halogen Lamps

From € 13,39 incl. VAT
From € 13,39 ex. VAT

See variants (4)

Input voltage AC 230240 V
Mains frequency 5060 Hz
ECG efficiency 95 %
Galvanic isolation primary/secondary 4.00 kV
Dimmable Yes
Suitable for fixtures with prot. class II
Overheating protection Automatic reversible
Max. cable length to lamp/LED module 2.0 m
No-load proof Yes
Overload protection Automatic reversible
Short-circuit protection Automatic reversible
Dimming range 0100 %
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

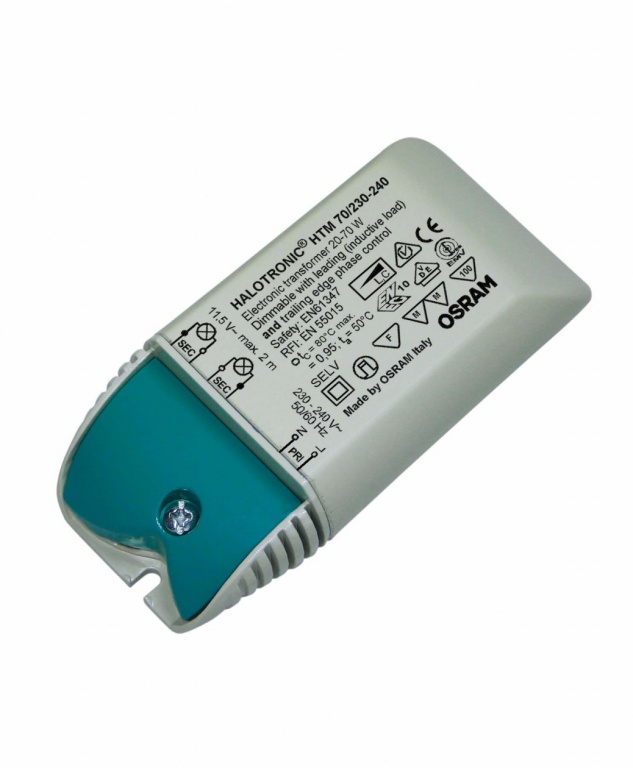

HTM 70/230...240

Karta produktu PDF

Electrico24 code: 56902 | Osram code: 4050300442310 Operating frequency: 52 kHz Power factor λ: 0.99 Length: 108.0 mm Dimmable: Yes Input voltage AC: 230240 V Mains frequency: 5060 Hz Nominal output voltage: 11.2 / 11.2 V ECG efficiency: 95 % Inrush current: 0.3 A Max. no. of ECGs on circuit breaker 10 A: 37 see more »

Galvanic isolation primary/secondary: 4.00 kV Max. no. of ECGs on circuit breaker 16 A: 59 Width: 52.0 mm Height: 33.0 mm Mounting hole spacing, length: - Mounting hole spacing, width: - Cable cross-section, input side: 2.5 mm² Product weight: 110.00 g Cable cross-section, output side: 2.5 mm² Wire preparation length, input side: 12 / 7.0 mm Ambient temperature range: 0+50 °C Maximum temperature at tc test point: 80 °C Suitable for fixtures with prot. class: II Overheating protection: Automatic reversible Max. cable length to lamp/LED module: 2.0 m No-load proof: Yes Overload protection: Automatic reversible Short-circuit protection: Automatic reversible Approval marks approval: VDE / VDE-EMC / E1 approval / GOST Standards: Acc. to EN 61347/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 61047 Type of protection: IP20 Dimming range: 0100 % Design / version: Compact with cable clamp Input voltage range AC: 207264 V Wire preparation length, output side: 12 / 7.0 mm Lamp wattage: 2070 W Line current: 0.27 A System wattage: 74.00 W Cable types, input side: NYM 3x1.5 / H05VV-F 3x0.75 / H05VV-F 3x1.0 / H05VV-F 3x1.5 / H05VV-F 2x0.75 / H05VV-F 2x1.5 / H05VVH2-F 2x0.75 / H05VVH2-F 2x1.5 mm² Cable types, output side: NYM 3x1.5 / H05VV-F 3x0.75 / H05VV-F 3x1.5 / H05VV-F 3x1.5 / H05VV-F 2x0.75 / H05VV-F 2x1.5 / H05VVH2-F 2x0.75 mm² Dimming method: Trailing- or leading-edge phase control for inductive load dimmers « hide more

€ 13,39 € 13,39 ex. VAT

HTM 105/230...240

Karta produktu PDF

Electrico24 code: 56598 | Osram code: 4050300442334 Operating frequency: 43 kHz Power factor λ: 0.99 Length: 108.0 mm Nominal output voltage: 11.3 / 11.4 V Inrush current: 1 A Max. no. of ECGs on circuit breaker 10 A: 23 Max. no. of ECGs on circuit breaker 16 A: 38 Width: 52.0 mm Height: 33.0 mm Mounting hole spacing, length: - see more »

Mounting hole spacing, width: - Cable cross-section, input side: 2.5 mm² Product weight: 125.00 g Cable cross-section, output side: 2.5 mm² Wire preparation length, input side: 12 / 7.0 mm Ambient temperature range: 0+45 °C Maximum temperature at tc test point: 85 °C Design / version: Compact with cable clamp Input voltage range AC: 207264 V Wire preparation length, output side: 12 / 7.0 mm Lamp wattage: 35105 W Line current: 0.41 A System wattage: 111.00 W Cable types, input side: NYM 3x1.5 / H05VV-F 3x0.75 / H05VV-F 3x1.0 / H05VV-F 3x1.5 / H05VV-F 2x0.75 / H05VV-F 2x1.0 / H05VV-F 2x1.5 / H05VVH2-F 2x0.75 / H05VVH2-F 2x1.5 mm² Cable types, output side: NYM 3x1.5 / H05VV-F 3x0.75 / H05VV-F 3x1.5 / H05VV-F 3x1.5 / H05VV-F 2x0.75 / H05VV-F 2x1.5 / H05VVH2-F 2x0.75 mm² Dimming method: Trailing- or leading-edge phase control for inductive load dimmers « hide more

€ 15,26 € 15,26 ex. VAT

HTN 75/230...240 I

Karta produktu PDF

Electrico24 code: 56600 | Osram code: 4008321073037 Operating frequency: 50 kHz Power factor λ: 0.95 Length: 104.0 mm Nominal output voltage: 11.5 / 11.7 V Inrush current: 0.37 A Width: 33.0 mm Height: 22.0 mm Mounting hole spacing, length: 98.0 mm Mounting hole spacing, width: - Cable cross-section, input side: 1.5 mm² see more »

Product weight: 68.00 g Cable cross-section, output side: 1.5 mm² Wire preparation length, input side: 10 / 6.0 mm Ambient temperature range: 0+50 °C Maximum temperature at tc test point: 85 °C Design / version: Very small with cable clamp Input voltage range AC: 207254 V Wire preparation length, output side: 10 / 6.0 mm Lamp wattage: 2075 W Line current: 0.32 A System wattage: 79.00 W Cable types, input side: NYM 3x1.5 / H05VV-F 2x0.75 / H03VV-F 2x0.75 / H03VVH2-F 2x0.75 mm² Cable types, output side: NYM 3x1.5 / H05VV-F 2x0.75 / H03VV-F 2x0.75 mm² Dimming method: Trailing-edge phase control « hide more

€ 16,99 € 16,99 ex. VAT

HTM 150/230...240

Karta produktu PDF

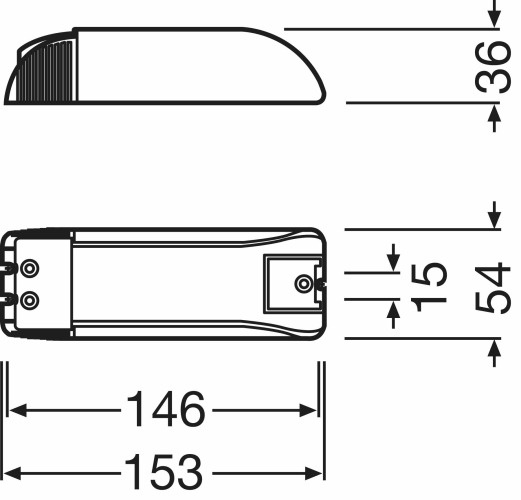

Electrico24 code: 56599 | Osram code: 4050300581415 Operating frequency: 40 kHz Power factor λ: 0.99 Length: 153.0 mm Nominal output voltage: 11.4 / 11.5 V Inrush current: 1.1 A Max. no. of ECGs on circuit breaker 10 A: 16 Max. no. of ECGs on circuit breaker 16 A: 26 Width: 54.0 mm Height: 36.0 mm Mounting hole spacing, length: 146.0 mm see more »

Mounting hole spacing, width: 15.0 mm Cable cross-section, input side: 1.5 mm² Product weight: 185.00 g Cable cross-section, output side: 2.5 mm² Wire preparation length, input side: 12 / 8.0 mm Ambient temperature range: 0+45 °C Maximum temperature at tc test point: 80 °C Design / version: Compact with cable clamp Input voltage range AC: 207264 V Wire preparation length, output side: 12 / 8.0 mm Lamp wattage: 50150 W Line current: 0.57 A System wattage: 157.00 W Cable types, input side: NYM 3x1.5 / H05VV-F 3x1.0 / H03VV-F 3x1.5 mm² Cable types, output side: NYM 3x1.5 / H05VV-F 2x0.75 / H05VV-F 2x1.0 / H05VV-F 2x1.5 / H03VV-F 2x0.75 / H03VV-F 2x1.5 mm² Dimming method: Trailing- or leading-edge phase control for inductive load dimmers « hide more

€ 23,90 € 23,90 ex. VAT

Description / FAQ Warranty

Electrical data
Input voltage AC	230240 V
Mains frequency	5060 Hz
ECG efficiency	95 %
Galvanic isolation primary/secondary	4.00 kV
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	II
Overheating protection	Automatic reversible
Max. cable length to lamp/LED module	2.0 m
No-load proof	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Dimming range	0100 %
Certificates & standards
Approval marks approval	VDE / VDE-EMC / E1 approval / GOST
Standards	acc. to EN 61347/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547/acc. to EN 61047
Type of protection	IP20

Product benefits

Dimmable on the leading edge (without HTN) and trailing edge
Very low power loss thanks to high efficacy
Strain relief suitable for different cable types (HTM)

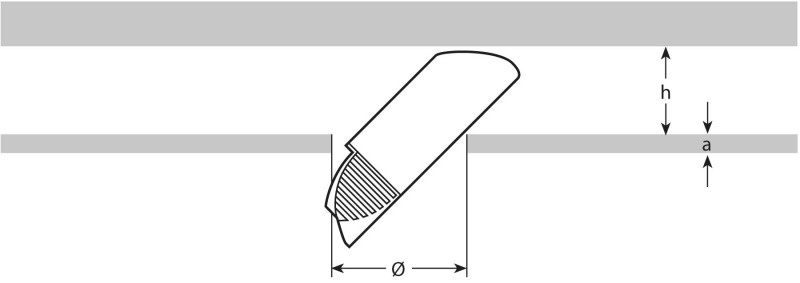

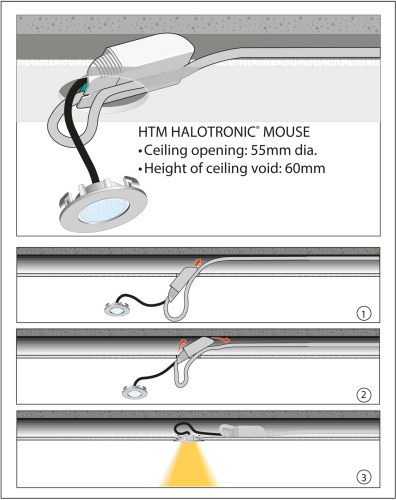

Suitable for space-critical installation thanks to compact functional design
Extremely compact transformer for highly space-critical installation conditions (HTN)
Protective operation throughout the entire partial-load range for long lamp life

Areas of application

Effect and accent lighting
Living rooms
Object lighting
Conference rooms
Restaurants
Recessed and surface-mounted furniture fixtures
Shop lighting
Event rooms

Product features

Line frequency: 50…60 Hz
RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547
Safety: to EN 61347
Short-circuit protection, overload protection, overtemperature protection: electronically reversible
Electrical isolation between the primary side and the secondary side
Switching between electronic transformer and lamp not permitted
Energy efficiency: ≥ 91 % (according to ErP regulation 2012/1194/EC)
