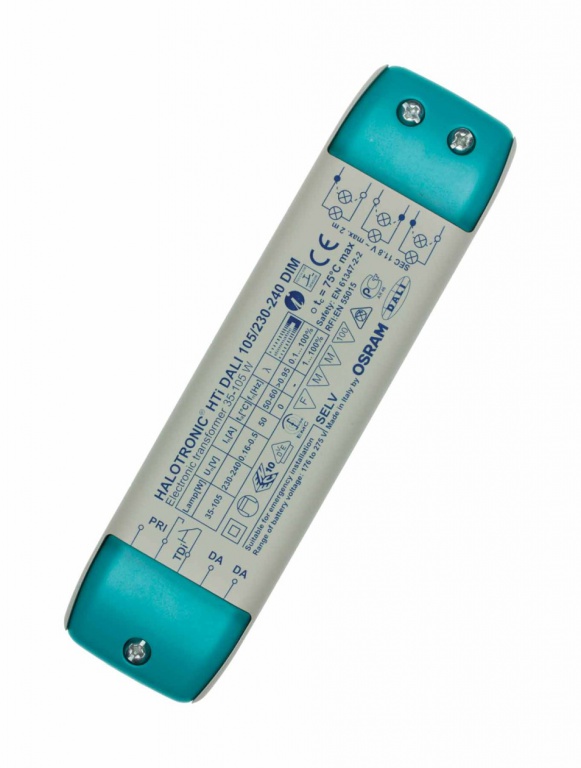

HALOTRONIC-PROFESSIONAL HTL Transformers for Halogen Lamps

Unavailable

Operating frequency 50 kHz
Power factor λ 0.95
Input voltage AC 230240 V
Mains frequency 5060 Hz
Nominal output voltage 11.6 / 11.7 V
ECG efficiency 95 %
Inrush current 1.5 A
Max. no. of ECGs on circuit breaker 10 A 11
Galvanic isolation primary/secondary 4.00 kV
Max. no. of ECGs on circuit breaker 16 A 18
Input voltage DC 176275 V
Input voltage range AC 207264 V
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Operating frequency	50 kHz
Power factor λ	0.95
Input voltage AC	230240 V
Mains frequency	5060 Hz
Nominal output voltage	11.6 / 11.7 V
ECG efficiency	95 %
Inrush current	1.5 A
Max. no. of ECGs on circuit breaker 10 A	11
Galvanic isolation primary/secondary	4.00 kV
Max. no. of ECGs on circuit breaker 16 A	18
Input voltage DC	176275 V
Input voltage range AC	207264 V
Lamp wattage	50225 W
Line current	0.90 A
System wattage	230.00 W

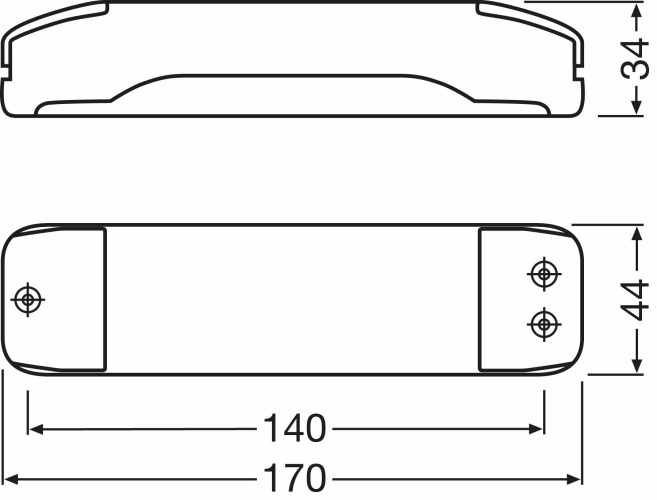

Dimensions & weight
Length	170.0 mm
Width	44.0 mm
Height	34.0 mm
Mounting hole spacing, length	140.0 mm
Cable cross-section, input side	2.5 mm²
Product weight	225.00 g
Cable cross-section, output side	4.0 mm²
Wire preparation length, input side	14 / 8.0 mm
Wire preparation length, output side	14 / 8.0 mm
Additional product data
Design / version	Long with cable clamp
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	II
Overheating protection	Automatic switch off, reversible
Max. cable length to lamp/LED module	2.0 m
No-load proof	Yes
Overload protection	Automatic switch off, reversible
Short-circuit protection	Automatic switch-off, reversible
Dimming range	0100 %
Cable types, input side	H03VV-F 2x0.50 / H03VV-F 2x0.75 / H03VVH2-F 2x0.75 / H05VVH2-F 2x0.75 / H05VV-F 2x2.5 / NYM-O 2x1.5 / NYM-J 3x1.5 mm²
Cable types, output side	H03VV-F 2x0.75 / H05VVH2-F 2x0.75 / H05VV-F 2x1.5 / H05VV-F 2x2.5 / NYM-O 2x1.5 / NYM-J 3x1.5 / NYM-J 3x2.5 mm²
Dimming method	Trailing- or leading-edge phase control for inductive load dimmers
Suitable for emergency lighting	Yes
Certificates & standards
Approval marks approval	ENEC 10 / VDE / VDE-EMC / GOST
Standards	acc. to EN 61347/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547/acc. to EN 61047
Type of protection	IP20
Temperatures
Ambient temperature range	-20+50 °C
Maximum temperature at tc test point	80 °C

Product benefits

Dimmable on the leading edge and trailing edge
Very low power loss thanks to high efficacy
Through-wiring possible on the primary side
Large temperature range
Protective operation throughout the entire partial-load range for long lamp life
High efficiency and reliability

Areas of application

Effect and accent lighting
Living rooms
Object lighting
Conference rooms
Restaurants
Recessed and surface-mounted furniture fixtures
Shop lighting
Event rooms

Product features

Line frequency: 50…60 Hz
RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547
Safety: to EN 61347
Short-circuit protection, overload protection, overtemperature protection: electronically reversible
Electrical isolation between the primary side and the secondary side
Switching between electronic transformer and lamp not permitted
Energy efficiency: ≥ 91 % (according to ErP regulation 2012/1194/EC)
