Electrical data |
|
| Nominal voltage | 115 V |
| Nominal wattage | 80.00 W |
| Rated lamp efficacy (standard condition) | 43 lm/W |
| Lamp current | 0.80000 A |
| Ignition voltage | 0.198 kVp |
| Rated wattage | 80.00 W |
Photometrical data |
|
| Color temperature | 3400 K |
| Rated luminous flux | 3400 lm |
| Color rendering index Ra | 56 |
| Rated LLMF at 4,000 h | 0.84 |
| Rated LLMF at 6,000 h | 0.80 |
| Rated LLMF at 8,000 h | 0.75 |
| Rated LLMF at 12,000 h | 0.70 |
| Rated LLMF at 16,000 h | 0.63 |
| Rated LLMF at 2,000 h | 0.90 |

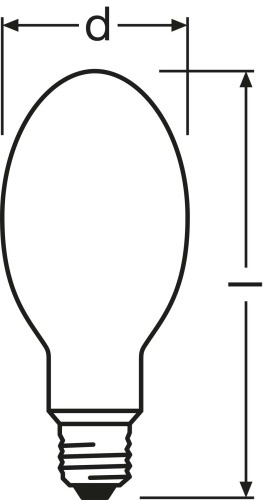

Dimensions & weight |
|
| Diameter | 71.0 mm |
| Length | 155.0 mm |
| Product weight | 56.00 g |
Lifespan |
|
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.99 |
| Rated lamp survival factor at 6,000 h | 0.99 |
| Operation mode LLMF/LSF | 50 Hz |
| Rated lamp survival factor at 8,000 h | 0.99 |
| Rated lamp survival factor at 12,000 h | 0.97 |
| Rated lamp survival factor at 16,000 h | 0.90 |
| Lifespan B50 | 24000 h |
| Lifespan B10 | 8000 h |
| Lifespan B5 | 6000 h |
Additional product data |
|
| Base (standard designation) | E27 |
| Lamp mercury content | 14.6 mg |
| Design / version | Coated |
| Product remark | As of April 2015 not compliant with ErP directive 245/2009 |
Capabilities |
|
| Dimmable | No |
| Burning position | Any |
| Enclosed luminaire required | No |
Certificates & standards |
|
| Energy efficiency class | B |
| Energy consumption | 88 kWh/1000h |
Country specific categorizations |
|
| ILCOS | QE/R-80-H/E/S-E27-71/155 |
Temperatures |
|
| Maximum permitted outer bulb temperature | 310 °C |
| Maximum permitted base edge temperature | 210 °C |
Areas of application
Osram https://www.electrico24.eu/uploads/producer_logos/d83bdb510944b8ad8743f3d191f9d801.png

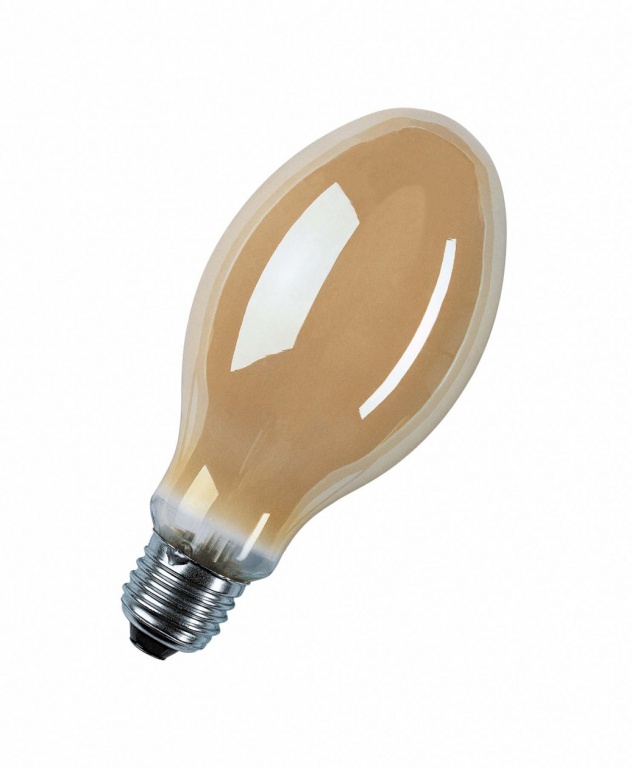

Metal Halide Lamp HQL SUPER DE LUXE 56899 56899 56899
