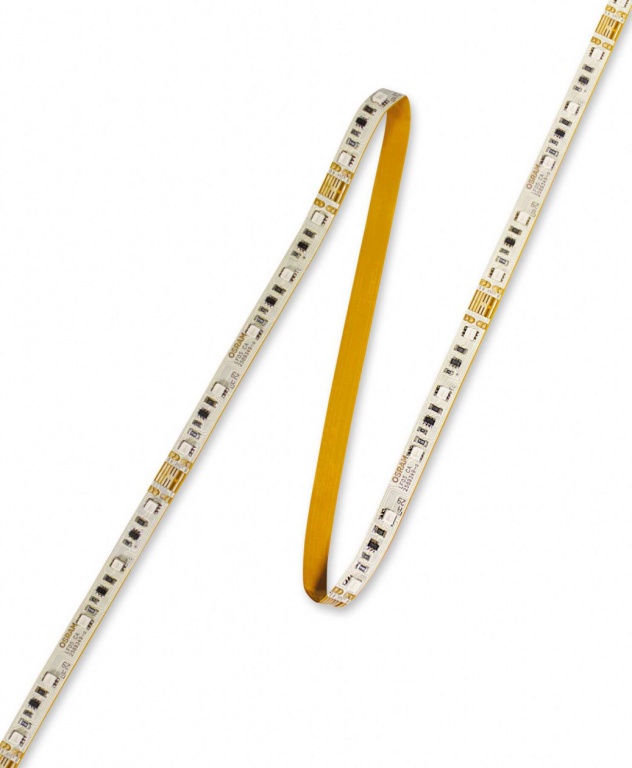

LED strip LINEARlight Colormix Flex LED Strips

Unavailable

Construction wattage [PICOS] 39.00 W
Nominal voltage 24.00 V
Nominal current 1.6 A
Type of current DC
Reverse Voltage 25 V
Input voltage range AC 2325 V
Nominal wattage per meter 6.5 W
Rated wattage 72.00 W
Luminous flux 1080 lm
Light color LED RGB
Nominal dominant wavelength 625 / 525 / 465 nm
Luminous flux per meter 180 lm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Construction wattage [PICOS]	39.00 W
Nominal voltage	24.00 V
Nominal current	1.6 A
Type of current	DC
Reverse Voltage	25 V
Input voltage range AC	2325 V
Nominal wattage per meter	6.5 W
Rated wattage	72.00 W
Photometrical data
Luminous flux	1080 lm
Light color LED	RGB
Nominal dominant wavelength	625 / 525 / 465 nm
Luminous flux per meter	180 lm
Light technical data

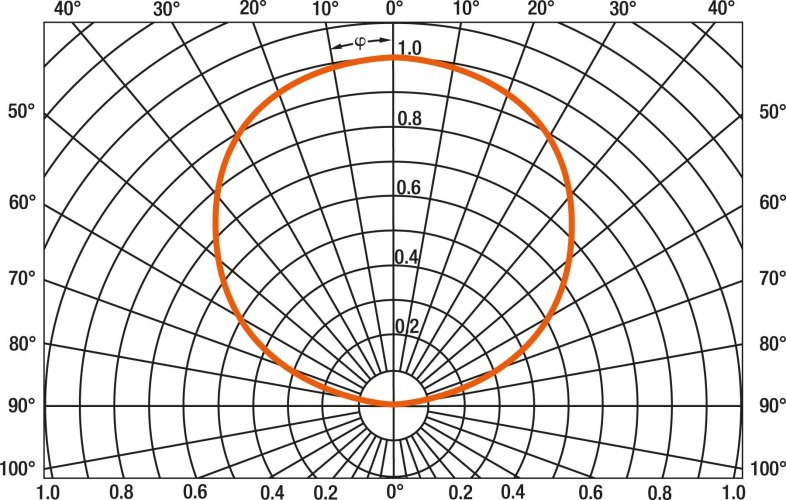

Beam angle	120 °

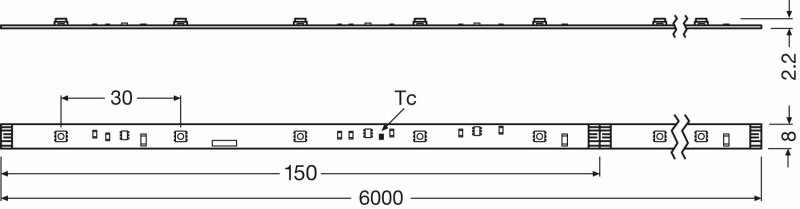

Dimensions & weight
Length	6000.0 mm
Width	8.0 mm
Height	2.2 mm
Product weight	43.23 g
Length smallest unit	150.0 mm
Lifespan
Lifespan	50000 h
Additional product data
New article	NEW
Capabilities
Dimmable	Yes
Temperatures
Temperature range in operation	-3075 °C
LED module information
Number of LEDs per module	200
Number of LEDs per meter	33
Number of LEDs per smallest unit	5

Product benefits

Uniform color changing
Great design freedom thanks to flexibility and cuttability of module
Simple mounting and connection
Toolless connection with the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Areas of application

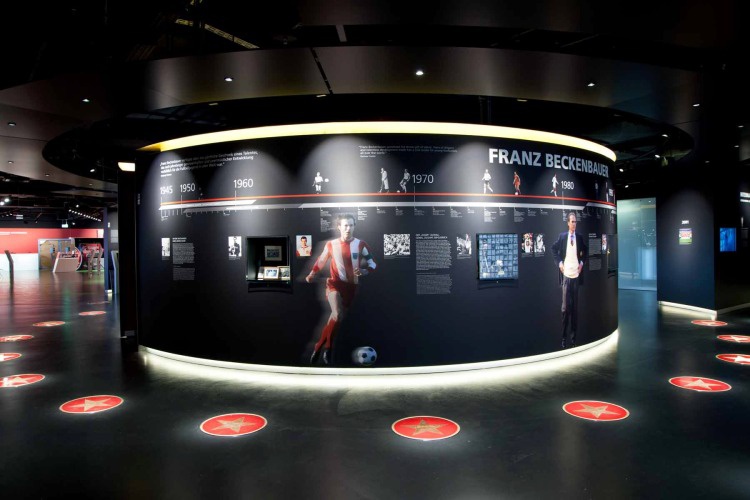

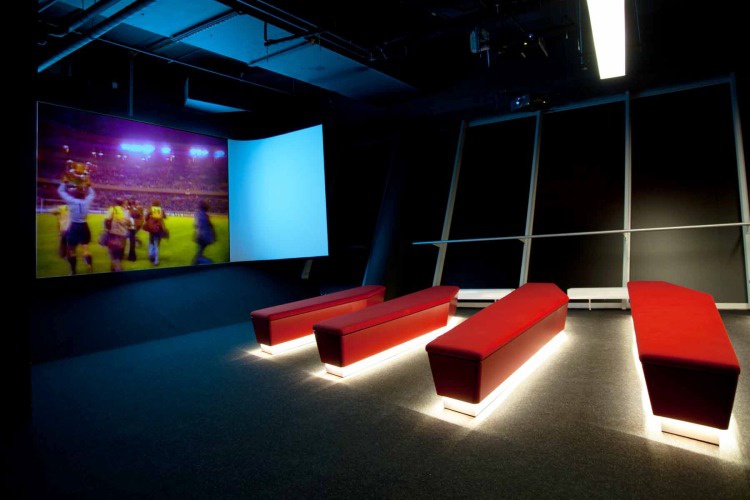

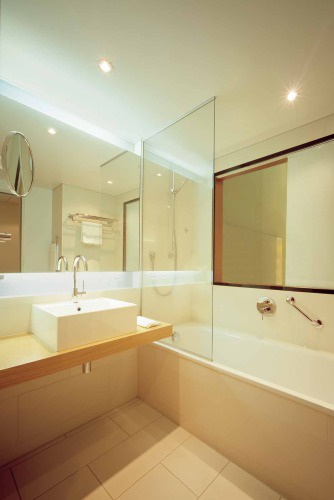

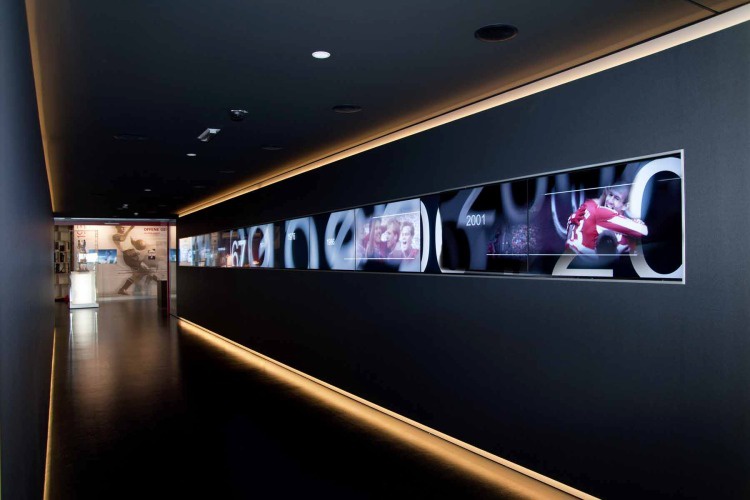

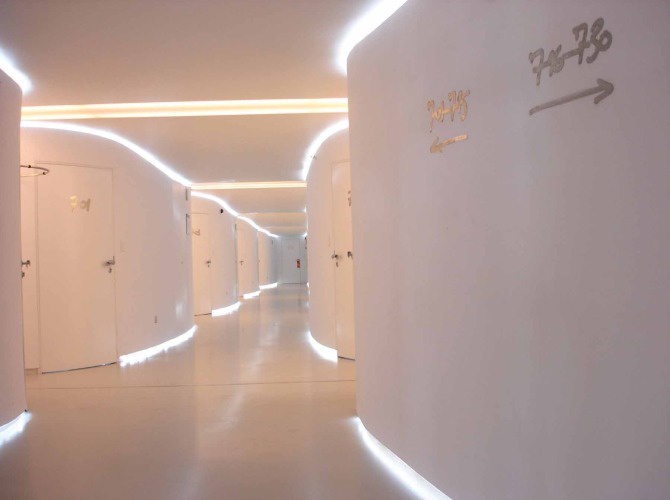

Effect lighting in architecture
Injection of light into displays and low-profile light guides
Dynamic effects in public zones

Product features

Flexible and splittable LED strip with inline multichip RGB LEDs

Equipment / Accessories

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V Electronic Control Gears

LED strip LINEARlight Colormix Flex

Rated 5.0/5 based on 1 customer reviews

https://www.electrico24.eu/uploads/assortment_images/a-16213-113905.jpg

LED Strips and Profiles / LED Strips

Osram https://www.electrico24.eu/uploads/producer_logos/d83bdb510944b8ad8743f3d191f9d801.png

LED strip LINEARlight Colormix Flex

1535.63 PLN available
