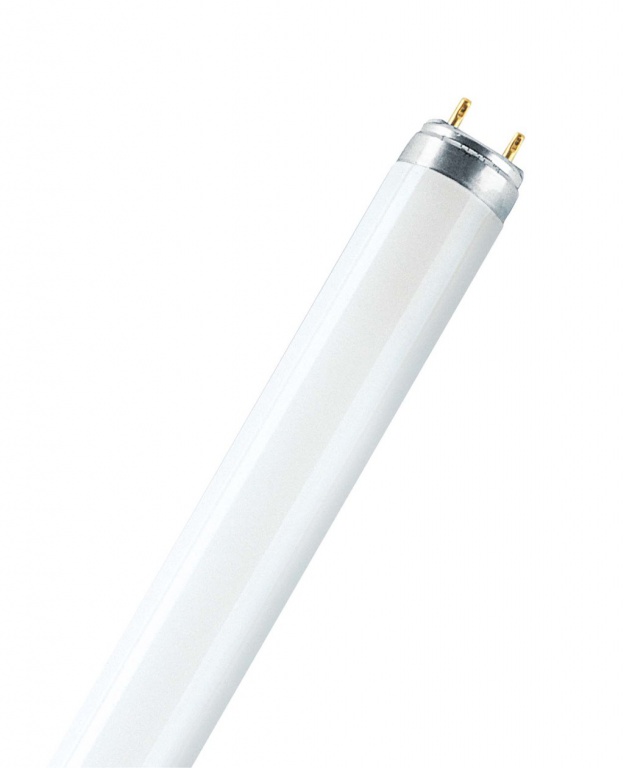

Fluorescent Lamp LUMILUX XXT T8 Fluorescent Lamps T8/G13

Unavailable

Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
Color rendering index Ra ≥80
Rated LLMF at 4,000 h 0.92
Rated LLMF at 6,000 h 0.91
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.89
Rated LLMF at 16,000 h 0.88
Rated LLMF at 20,000 h 0.87
Rated LLMF at 2,000 h 0.95
Diameter 26.0 mm
Maximum diameter 26.0 mm
Tube diameter 26 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Rated lamp efficacy (HF data 25 °C)	Under clarification by authority and standardization body

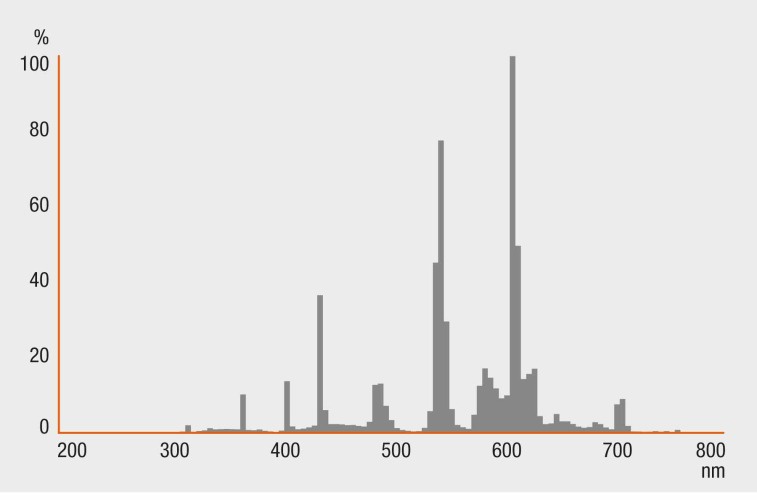

Photometrical data
Color rendering index Ra	≥80
Rated LLMF at 4,000 h	0.92
Rated LLMF at 6,000 h	0.91
Rated LLMF at 8,000 h	0.90
Rated LLMF at 12,000 h	0.89
Rated LLMF at 16,000 h	0.88
Rated LLMF at 20,000 h	0.87
Rated LLMF at 2,000 h	0.95

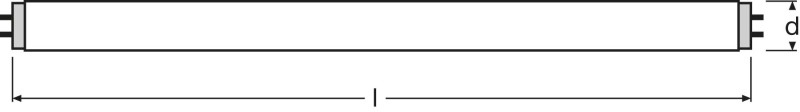

Dimensions & weight
Diameter	26.0 mm
Maximum diameter	26.0 mm
Tube diameter	26 mm
Lifespan
Nominal lamp life time	90000 h
Rated lamp life time	90000 h
Lifespan	90000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Service life	75000 h
Operation mode LLMF/LSF	50 Hz
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.99
Rated lamp survival factor at 16,000 h	0.99
Rated lamp survival factor at 20,000 h	0.99
Additional product data

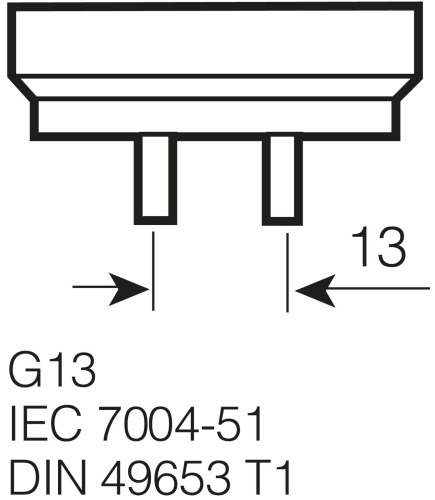

Base (standard designation)	G13
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	3.3 mg
Capabilities
Dimmable	Yes
Suitable for indoor	Yes
Certificates & standards
Energy efficiency class	A
Temperatures
Rated ambient temp.w.max.luminous flux	25.0 °C

Product benefits

Much lower total cost of ownership (TCO) compared with T8 LUMILUX lamps
Service life 4.1 times higher than that of a standard LUMILUX lamp
Longer standard life time, so fewer lamps for waste disposal

Areas of application

Installations where relamping would disturbe normal operations
Street lighting
Public buildings
Industry
Shops
Supermarkets and department stores

Product features

Extremely reliable: long life, low premature failure rate, 90 % luminous flux throughout their life
Service life: up to 75,000 h on ECGs or up to 58,000 h on CCGs
Good color rendering group: 1B (Ra: 80…89)
Dimmable with suitable ECG (for details see the Technical Guide)
Top-quality three-band phosphor: LUMILUX

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp
Fixture must be cleaned regularly to avoid loss of luminous flux.

System guarantee
OSRAM System+ Guarantee in combination with OSRAM ECGs
