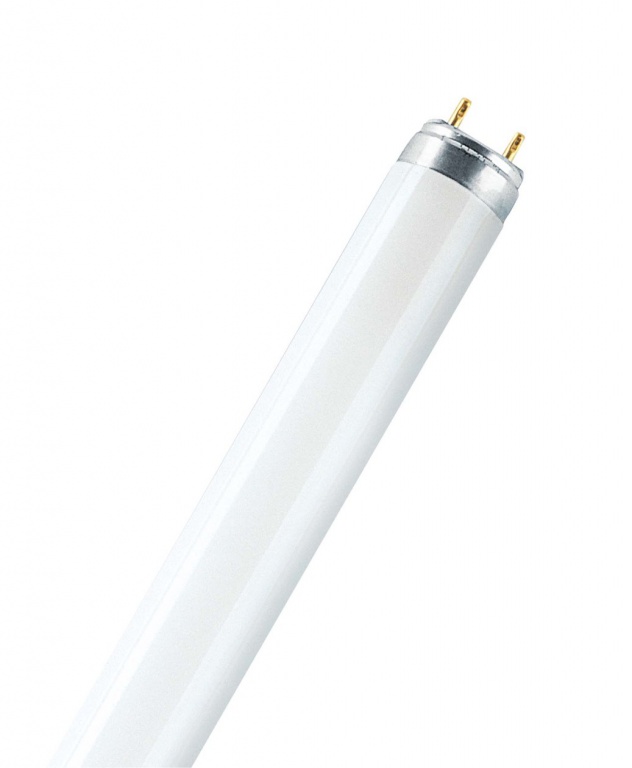

L 18 W/865 XXT Fluorescent Lamps T8/G13

Electrico24 code: 56228 | Osram code: 4008321923684

Price € 14,62 incl. VAT
€ 14,62 netto

Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
Color rendering index Ra ≥80
Rated LLMF at 4,000 h 0.92
Rated LLMF at 6,000 h 0.91
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.89
Rated LLMF at 16,000 h 0.88
Rated LLMF at 20,000 h 0.87
Rated LLMF at 2,000 h 0.95
Diameter 26.0 mm
Maximum diameter 26.0 mm
Tube diameter 26 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

L 18 W/830 XXT

Karta produktu PDF

Electrico24 code: 56912 | Osram code: 4008321923646

€ 14,62 € 14,62 ex. VAT

L 18 W/865 XXT (currently dislayed)

Karta produktu PDF

Electrico24 code: 56228 | Osram code: 4008321923684

€ 14,62 € 14,62 ex. VAT

Electrical data
Rated lamp efficacy (HF data 25 °C)	Under clarification by authority and standardization body
Photometrical data
Color rendering index Ra	≥80
Rated LLMF at 4,000 h	0.92
Rated LLMF at 6,000 h	0.91
Rated LLMF at 8,000 h	0.90
Rated LLMF at 12,000 h	0.89
Rated LLMF at 16,000 h	0.88
Rated LLMF at 20,000 h	0.87
Rated LLMF at 2,000 h	0.95
Dimensions & weight
Diameter	26.0 mm
Maximum diameter	26.0 mm
Tube diameter	26 mm
Lifespan
Nominal lamp life time	90000 h
Rated lamp life time	90000 h
Lifespan	90000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Service life	75000 h
Operation mode LLMF/LSF	50 Hz
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.99
Rated lamp survival factor at 16,000 h	0.99
Rated lamp survival factor at 20,000 h	0.99
Additional product data
Base (standard designation)	G13
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	3.3 mg
Capabilities
Dimmable	Yes
Suitable for indoor	Yes
Certificates & standards
Energy efficiency class	A
Temperatures
Rated ambient temp.w.max.luminous flux	25.0 °C

Product benefits

Areas of application

Product features

Extremely reliable: long life, low premature failure rate, 90 % luminous flux throughout their life
Service life: up to 75,000 h on ECGs or up to 58,000 h on CCGs
Good color rendering group: 1B (Ra: 80…89)
Dimmable with suitable ECG (for details see the Technical Guide)
Top-quality three-band phosphor: LUMILUX

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp
Fixture must be cleaned regularly to avoid loss of luminous flux.

System guarantee
OSRAM System+ Guarantee in combination with OSRAM ECGs
