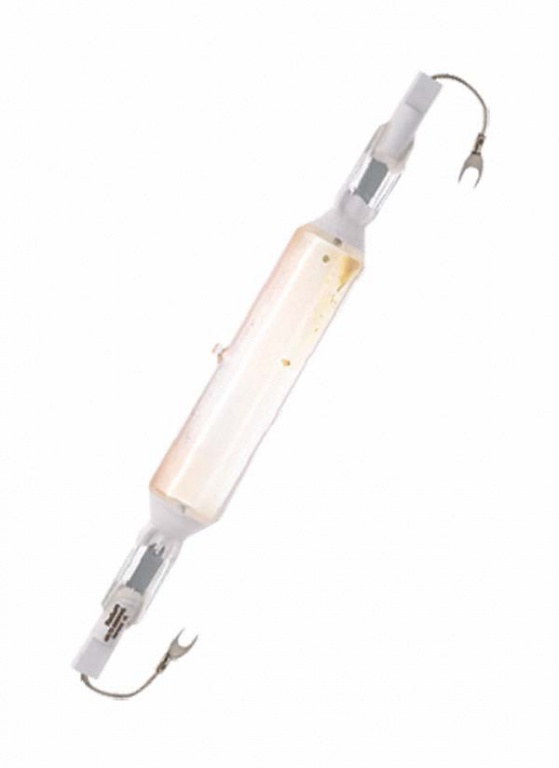

POWERSTAR HQI-TS Long arc, no outer bulb for enclosed luminaires Metal Halide Lamps K12s-36

Electrico24 code: 56896 | Osram code: 4008321530660

Price € 257,26 incl. VAT
€ 257,26 netto

Nominal voltage 200 V
Nominal wattage 2000.00 W
Rated lamp efficacy (standard condition) 107 lm/W
Lamp current 10.40000 A
PFC capacitor at 50 Hz 60 µF
Ignition voltage 4.0 / 5.0 kVp
Rated wattage 2150.00 W
Color temperature 4100 K
Rated luminous flux 230000 lm
Color rendering index Ra 65
Light color 642
Rated LLMF at 4,000 h 0.85
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

HQI-TS 2000 W/N/L

Karta produktu PDF

Electrico24 code: 56896 | Osram code: 4008321530660

€ 257,26 € 257,26 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	200 V
Nominal wattage	2000.00 W
Rated lamp efficacy (standard condition)	107 lm/W
Lamp current	10.40000 A
PFC capacitor at 50 Hz	60 µF
Ignition voltage	4.0 / 5.0 kVp
Rated wattage	2150.00 W
Photometrical data
Color temperature	4100 K
Rated luminous flux	230000 lm
Color rendering index Ra	65
Light color	642
Rated LLMF at 4,000 h	0.85
Rated LLMF at 6,000 h	0.82
Rated LLMF at 8,000 h	0.80
Rated LLMF at 2,000 h	0.91
UV protection	No

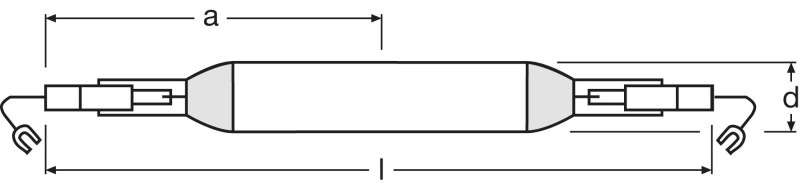

Dimensions & weight
Diameter	40.0 mm
Length	274.0 mm
Product weight	88.70 g
Light center length (LCL)	137.0 mm
Lifespan
Rated lamp survival factor at 2,000 h	0.95
Rated lamp survival factor at 4,000 h	0.83
Rated lamp survival factor at 6,000 h	0.67
Rated lamp survival factor at 8,000 h	0.50
Lifespan B50	8000 h
Additional product data

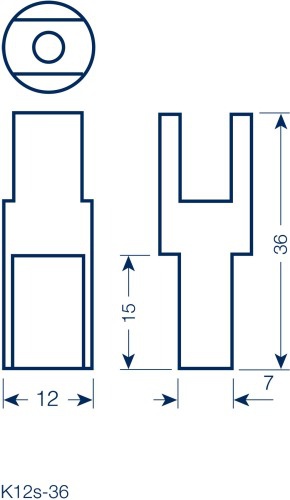

Base (standard designation)	K12s-36
Lamp mercury content	220.0 mg
Design / version	Clear
Capabilities
Dimmable	No
Burning position	p15
Enclosed luminaire required	Yes
Hot restart	Yes
Certificates & standards
Energy efficiency class	A+
Energy consumption	2365 kWh/1000h
Country specific categorizations
ILCOS	MN-2000/842-E/E/SL-K12s=36-40/274/H
Temperatures
Maximum permitted outer bulb temperature	950 °C
Maximum permitted pinch temperature	390 °C

Product benefits

Very high efficiency
Very high luminous flux
Long life time
May be operated on conventional igniters and control gear
Ideal for compact floodlights
Good positioning thanks to K12s base

Areas of application

Sports stadiums and floodlight systems
Industrial installations
Airports
Docks and port facilities
Marshaling yards, container transshipment facilities
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

POWERSTAR quartz technology
