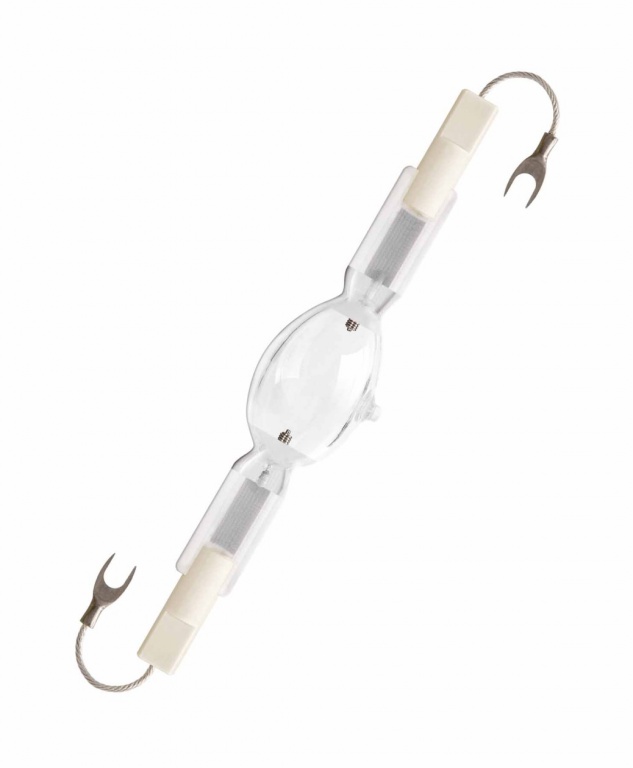

Metal Halide Lamp POWERSTAR HQI-TS Short arc, no outer bulb for enclosed luminaires Metal Halide Lamps K12s-36

From € 257,26 incl. VAT
From € 257,26 ex. VAT

See variants (4)

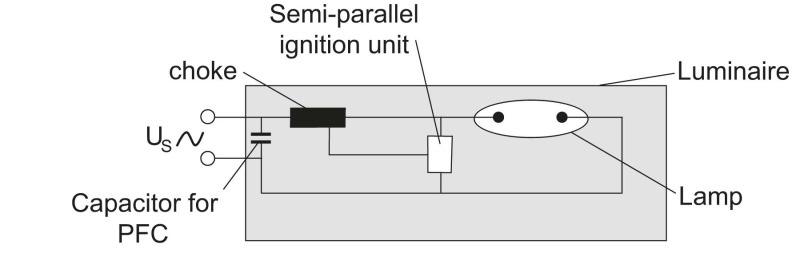

Ignition voltage 4.0 / 5.0 kVp
UV protection No
Diameter 41.0 mm
Length 187.0 mm
Light center length (LCL) 93.0 mm
Base (standard designation) K12s-36
Design / version Clear
Dimmable No
Burning position p15
Enclosed luminaire required Yes
Hot restart Yes
Energy efficiency class A+
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

HQI-TS 2000 W/D/S

Karta produktu PDF

Electrico24 code: 56359 | Osram code: 4050300271682 Construction wattage [PICOS]: 1950.00 W Nominal voltage: 190 V Nominal wattage: 2000.00 W Color temperature: 6100 K Rated luminous flux: 210000 lm Color rendering index Ra: 83 Lamp mercury content: 180.0 mg Energy consumption: 2145 kWh/1000h ILCOS: MN-2000/961-E/E/SL-K12s=36-41/187/H Product weight: 61.00 g see more »

Light color: 960 Rated LLMF at 4,000 h: 0.90 Rated lamp survival factor at 2,000 h: 0.94 Rated lamp survival factor at 4,000 h: 0.61 Rated lamp efficacy (standard condition): 108 lm/W Rated LLMF at 2,000 h: 0.95 Lamp current: 11.30000 A PFC capacitor at 50 Hz: 60 µF Lifespan B50: 4500 h « hide more

€ 257,26 € 257,26 ex. VAT

HQI-TS 2000 W/NDL/S

Karta produktu PDF

Electrico24 code: 56372 | Osram code: 4008321525499 Construction wattage [PICOS]: 1930.00 W Nominal voltage: 200 V Nominal wattage: 2000.00 W Color temperature: 4650 K Rated luminous flux: 222000 lm Color rendering index Ra: 90 Lamp mercury content: 150.0 mg Energy consumption: 2123 kWh/1000h ILCOS: MN-2000/844-E/E/SL-K12s=36-41/187/H Product weight: 63.00 g see more »

Light color: 942 Rated LLMF at 4,000 h: 0.76 Rated LLMF at 6,000 h: 0.72 Rated lamp survival factor at 2,000 h: 0.95 Rated lamp survival factor at 4,000 h: 0.76 Rated lamp survival factor at 6,000 h: 0.50 Rated lamp efficacy (standard condition): 112 lm/W Rated LLMF at 2,000 h: 0.89 Lamp current: 11.30000 A PFC capacitor at 50 Hz: 60 µF Lifespan B50: 4000 h « hide more

€ 257,26 € 257,26 ex. VAT

HQI-TS 1000 W/D/S PRO

Karta produktu PDF

Electrico24 code: 56371 | Osram code: 4008321525475 Construction wattage [PICOS]: 1000.00 W Nominal voltage: 120 V Nominal wattage: 1000.00 W Color temperature: 6100 K Rated luminous flux: 90000 lm Color rendering index Ra: 85 Lamp mercury content: 70.0 mg Energy consumption: 1100 kWh/1000h ILCOS: MN-1000/961-H/E/SL-K12s=36-41/187/H Product weight: 58.50 g see more »

Light color: 860 Rated LLMF at 4,000 h: 0.98 Rated LLMF at 6,000 h: 0.97 Rated LLMF at 8,000 h: 0.88 Rated lamp survival factor at 2,000 h: 0.95 Rated lamp survival factor at 4,000 h: 0.77 Rated lamp survival factor at 6,000 h: 0.65 Rated lamp survival factor at 8,000 h: 0.50 Rated lamp efficacy (standard condition): 90 lm/W Rated LLMF at 2,000 h: 0.98 Lamp current: 9.60000 A PFC capacitor at 50 Hz: 85 µF Lifespan B50: 6000 h « hide more

€ 273,67 € 273,67 ex. VAT

HQI-TS 1000 W/NDL/S UVS

Karta produktu PDF

Electrico24 code: 56892 | Osram code: 4008321591944 Nominal voltage: 120 V Nominal wattage: 1000.00 W Color temperature: 4400 K Rated luminous flux: 90000 lm Diameter: 36.0 mm Length: 187.0 mm Base (standard designation): K12s-36 Dimmable: No Energy efficiency class: A+ Color rendering index Ra: 85 see more »

Lamp mercury content: 70.0 mg Energy consumption: 1100 kWh/1000h ILCOS: MN-1000/844-H/E/SL-K12s=36-41/187/H Product weight: 61.00 g Design / version: Clear Light center length (LCL): 93.0 mm Burning position: p15 Light color: 842 Rated LLMF at 4,000 h: 0.86 Rated LLMF at 6,000 h: 0.84 Rated lamp survival factor at 2,000 h: 0.95 Rated lamp survival factor at 4,000 h: 0.70 Rated lamp survival factor at 6,000 h: 0.50 Rated lamp efficacy (standard condition): 90 lm/W Rated LLMF at 2,000 h: 0.91 Lamp current: 9.70000 A PFC capacitor at 50 Hz: 85 µF Ignition voltage: 4.0 / 5.0 kVp UV protection: No Maximum permitted outer bulb temperature: 950 °C Maximum permitted pinch temperature: 390 °C Lifespan B50: 6000 h Enclosed luminaire required: Yes Hot restart: Yes Rated wattage: 1000.00 W « hide more

€ 273,67 € 273,67 ex. VAT

Description / FAQ Warranty

Electrical data
Ignition voltage	4.0 / 5.0 kVp
Photometrical data
UV protection	No

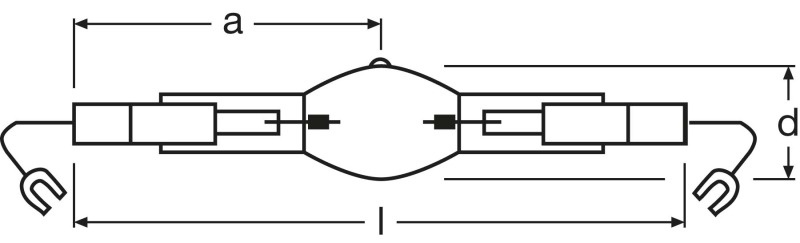

Dimensions & weight
Diameter	41.0 mm
Length	187.0 mm
Light center length (LCL)	93.0 mm
Additional product data

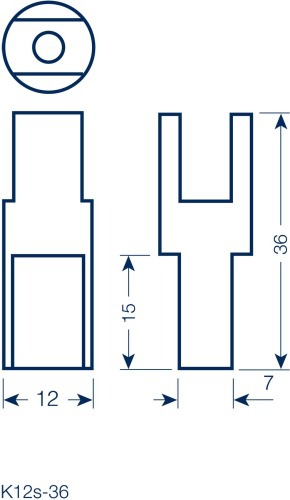

Base (standard designation)	K12s-36
Design / version	Clear
Capabilities
Dimmable	No
Burning position	p15
Enclosed luminaire required	Yes
Hot restart	Yes
Certificates & standards
Energy efficiency class	A+
Temperatures
Maximum permitted outer bulb temperature	950 °C
Maximum permitted pinch temperature	390 °C

Product benefits

High efficiency
Good to excellent color rendering
Excellent color stability
Small loss of luminous flux over the life of the lamp
Hot restrike capable
Compact dimensions for small spotlights
Good positioning thanks to K12s base

Areas of application

Sports stadiums and floodlight systems
Sports halls and multi-purpose halls
Airports
Solar simulation, material testing
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

POWERSTAR quartz technology
Light colors: neutral white (NDL), daylight (D)
