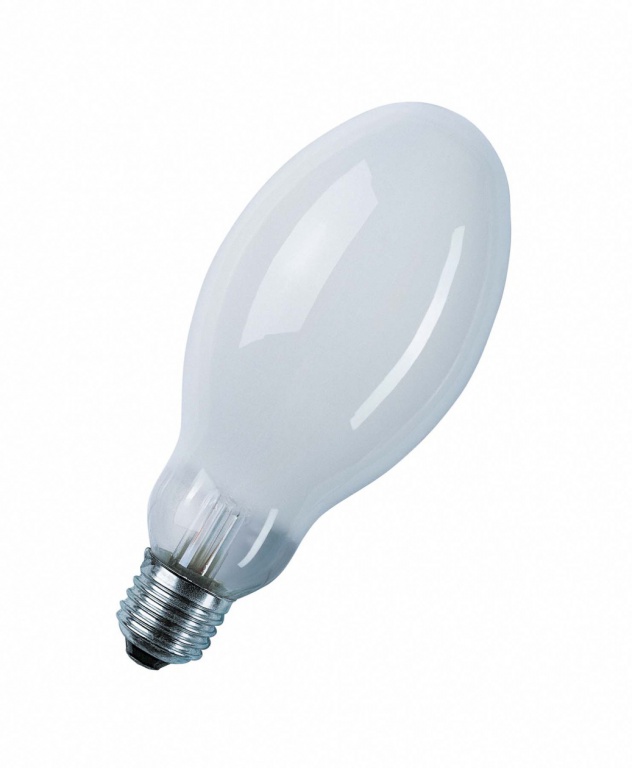

Sodium Lamp VIALOX NAV-E/I High-pressure sodium vapor lamps with internal igniter Sodium Lamps

Unavailable

Construction wattage [PICOS] 70.00 W
Nominal voltage 90 V
Nominal wattage 70.00 W
Rated lamp efficacy (standard condition) 84 lm/W
Lamp current 0.98000 A
Ignition voltage 0.198 kVp
Rated wattage 50.00 W
Color temperature 2000 K
Rated luminous flux 5900 lm
Color rendering index Ra ≤25
Rated LLMF at 4,000 h 0.86
Rated LLMF at 6,000 h 0.83
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Construction wattage [PICOS]	70.00 W
Nominal voltage	90 V
Nominal wattage	70.00 W
Rated lamp efficacy (standard condition)	84 lm/W
Lamp current	0.98000 A
Ignition voltage	0.198 kVp
Rated wattage	50.00 W
Photometrical data
Color temperature	2000 K
Rated luminous flux	5900 lm
Color rendering index Ra	≤25
Rated LLMF at 4,000 h	0.86
Rated LLMF at 6,000 h	0.83
Rated LLMF at 8,000 h	0.82
Rated LLMF at 12,000 h	0.81
Rated LLMF at 16,000 h	0.81
Rated LLMF at 20,000 h	0.80
Rated LLMF at 2,000 h	0.92

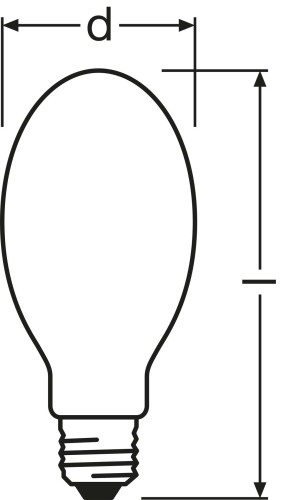

Dimensions & weight
Diameter	71.0 mm
Length	156.0 mm
Product weight	55.00 g
Lifespan
Rated lamp survival factor at 2,000 h	0.98
Rated lamp survival factor at 4,000 h	0.97
Rated lamp survival factor at 6,000 h	0.97
Operation mode LLMF/LSF	50 Hz
Rated lamp survival factor at 8,000 h	0.96
Rated lamp survival factor at 12,000 h	0.95
Rated lamp survival factor at 16,000 h	0.85
Rated lamp survival factor at 20,000 h	0.70
Lifespan B50	24000 h
Lifespan B10	14000 h
Lifespan B5	12000 h
Additional product data
Base (standard designation)	E27
Lamp mercury content	19.0 mg
Design / version	Coated
Product remark	Operate only with NAV control gear. No igniter required
Capabilities
Dimmable	No
Burning position	Any
Enclosed luminaire required	No
Certificates & standards
Energy efficiency class	A
Energy consumption	77 kWh/1000h
Country specific categorizations
ILCOS	SE-70-H/I/S-E27-71/156
Temperatures
Maximum permitted outer bulb temperature	310 °C
Maximum permitted base edge temperature	210 °C

Product benefits

High luminous efficacy

Areas of application

Streets
Outdoor lighting
Industrial installations
Suitable for use in open and enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

Service lifetime: 3 years (at approx. 11 h/day)
Average lifetime: up to 24,000 hours
ErP compliant according to EU Directive 245/2009

Sodium Lamp VIALOX NAV-E/I High-pressure sodium vapor lamps with internal igniter
