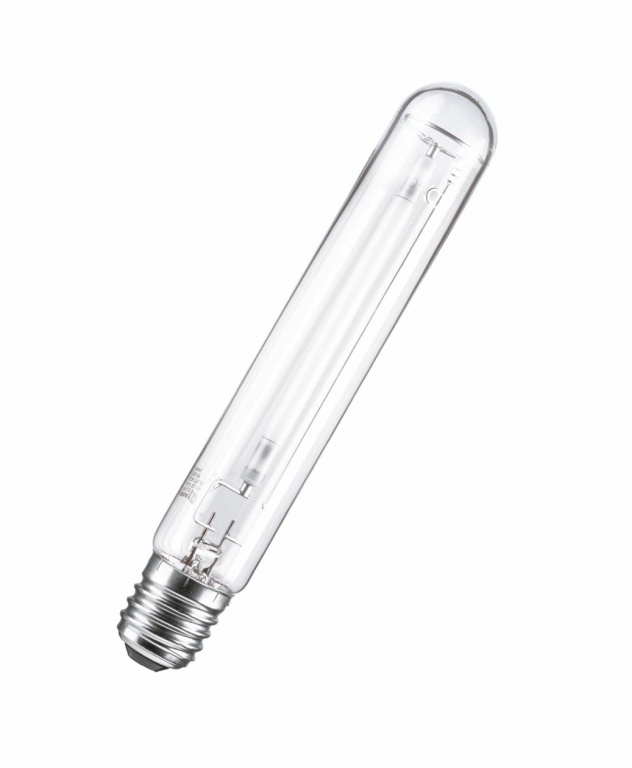

Sodium Lamp VIALOX NAV-T Sodium Lamps

Unavailable

Construction wattage [PICOS] 960.00 W
Nominal voltage 110 V
Nominal wattage 1000.00 W
Rated lamp efficacy (standard condition) 135 lm/W
Lamp current 10.60000 A
Ignition voltage 3.6 / 5.0 kVp
Color temperature 2000 K
Rated luminous flux 130000 lm
Color rendering index Ra ≤25
Rated LLMF at 4,000 h 0.93
Rated LLMF at 6,000 h 0.91
Rated LLMF at 8,000 h 0.89
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Construction wattage [PICOS]	960.00 W
Nominal voltage	110 V
Nominal wattage	1000.00 W
Rated lamp efficacy (standard condition)	135 lm/W
Lamp current	10.60000 A
Ignition voltage	3.6 / 5.0 kVp
Photometrical data
Color temperature	2000 K
Rated luminous flux	130000 lm
Color rendering index Ra	≤25
Rated LLMF at 4,000 h	0.93
Rated LLMF at 6,000 h	0.91
Rated LLMF at 8,000 h	0.89
Rated LLMF at 12,000 h	0.84
Rated LLMF at 16,000 h	0.81
Rated LLMF at 20,000 h	0.79
Rated LLMF at 2,000 h	0.96

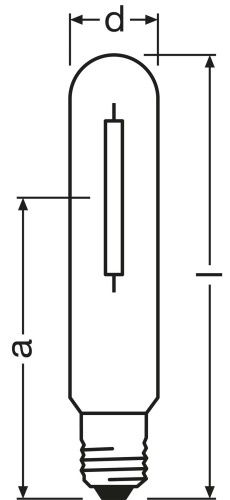

Dimensions & weight
Diameter	66.0 mm
Length	360.0 mm
Product weight	300.00 g
Light center length (LCL)	240.0 mm
Lifespan
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.98
Rated lamp survival factor at 8,000 h	0.95
Rated lamp survival factor at 12,000 h	0.87
Rated lamp survival factor at 16,000 h	0.74
Rated lamp survival factor at 20,000 h	0.50
Lifespan B50	20000 h
Lifespan B10	11000 h
Lifespan B5	8000 h
Additional product data
Base (standard designation)	E40
Lamp mercury content	39.0 mg
Design / version	Clear
Capabilities
Dimmable	Yes
Burning position	Any
Enclosed luminaire required	No
Certificates & standards
Energy efficiency class	A++
Energy consumption	1056 kWh/1000h
Country specific categorizations
ILCOS	ST-1000-H/E/SL-E40-66/360
Temperatures
Maximum permitted outer bulb temperature	400 °C
Maximum permitted base edge temperature	250 °C

Product benefits

High luminous efficacy

Areas of application

Streets
Outdoor lighting
Industrial installations
Suitable for use in open and enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

Service lifetime: 3 years (at approx. 11 h/day)
Average lifetime: up to 20,000 hours
ErP compliant according to EU Directive 245/2009
