Electrical data |
|
| Ignition voltage | 4.0 / 5.0 kVp |

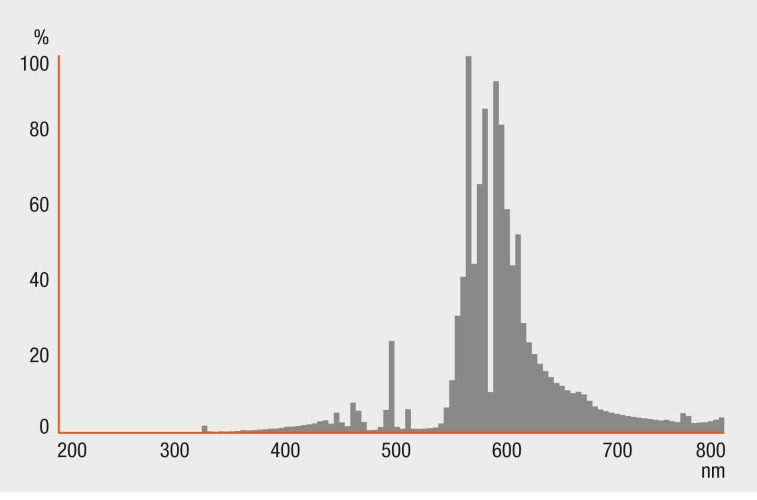

Photometrical data |
|
| Color temperature | 2000 K |
| Color rendering index Ra | ≤25 |
Lifespan |
|
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.98 |
| Rated lamp survival factor at 6,000 h | 0.98 |
| Rated lamp survival factor at 8,000 h | 0.97 |
| Rated lamp survival factor at 12,000 h | 0.96 |
| Rated lamp survival factor at 16,000 h | 0.95 |
| Rated lamp survival factor at 20,000 h | 0.90 |
| Lifespan B50 | 28000 h |
| Lifespan B10 | 20000 h |
| Lifespan B5 | 16000 h |
Additional product data |
|
| Design / version | Clear |
Capabilities |
|
| Dimmable | Yes |
| Burning position | p45 |
| Enclosed luminaire required | No |
| Hot restart | Yes |
Certificates & standards |
|
| Energy efficiency class | A+ |
Temperatures |
|
| Maximum permitted outer bulb temperature | 650 °C |
| Maximum permitted pinch temperature | 250 °C |
Areas of application
Product features
Osram https://www.electrico24.eu/uploads/producer_logos/d83bdb510944b8ad8743f3d191f9d801.png

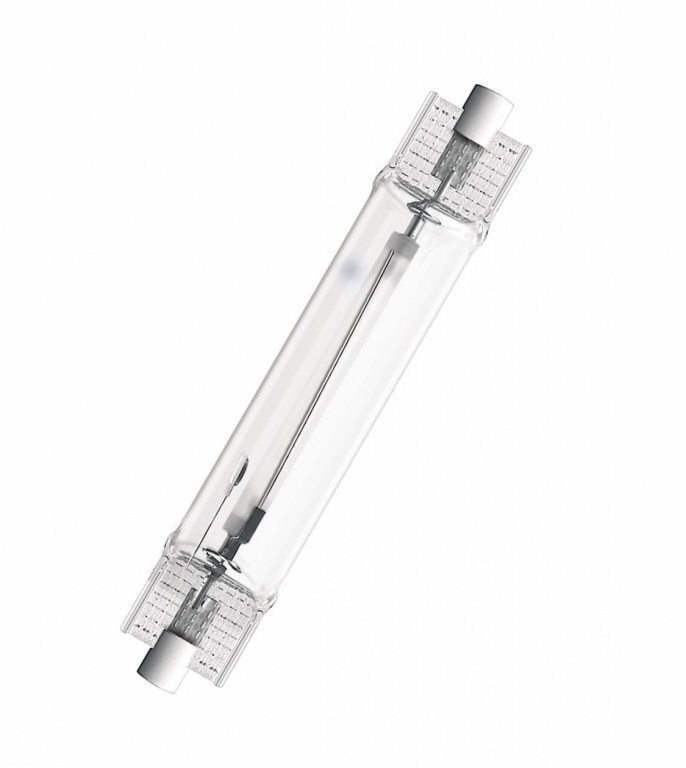

Sodium Lamp VIALOX NAV-TS SUPER 4Y
