PXF - Mechanical data |
|
| Type of installation | Surface mounted |
| Housing material | Policarbonate |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | LG5630 |
| SELV | Yes |
| Igniter/starter | Not required |
PXF - Infromations |
|
| Operating temperature range | -20 ... 40 ° |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP66 |
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |
| Impact resistance | IK10 |

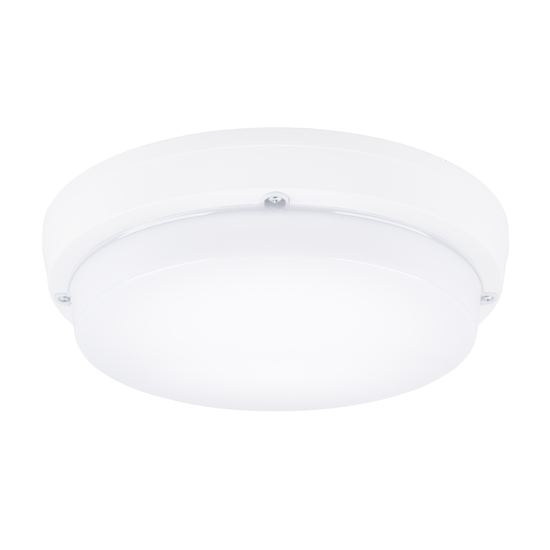

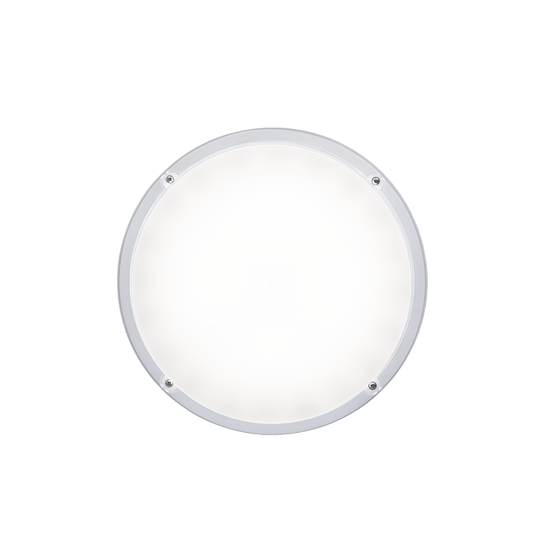

LED version of plafond with high esthetic features and over standard parameters: UV proof, highly resistant to mechanical factors and adverse external conditions. Protection degree IP66, body of high quality material. Emergency module AW 3H. Plafonds available with motion detector, daylight sensor or emergency module.

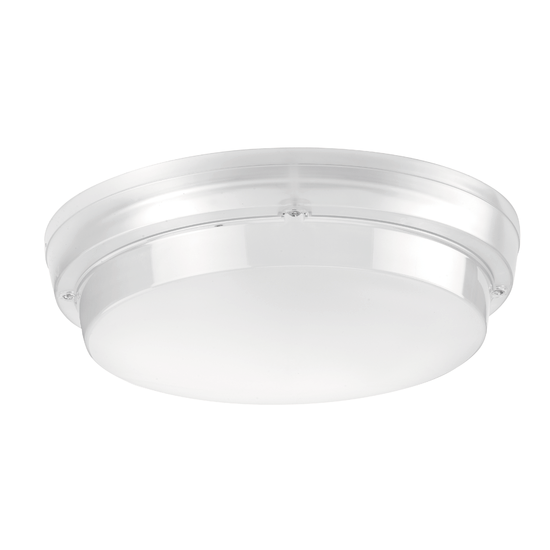

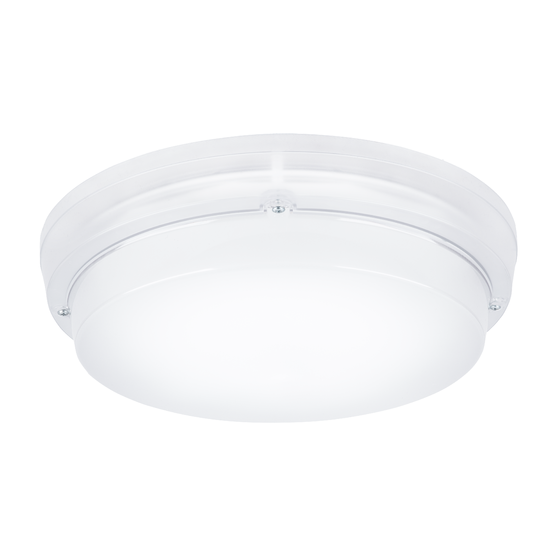

Materials: white version: base and diffuser made of white UV proof polycarbonate, transparent version: base and diffuser made of transparent UV proof polycarbonate, grey version: grey base and white diffuser made of UV proof polycarbonate
Installation: ceiling mounted, wall mounted
Power: 230 V

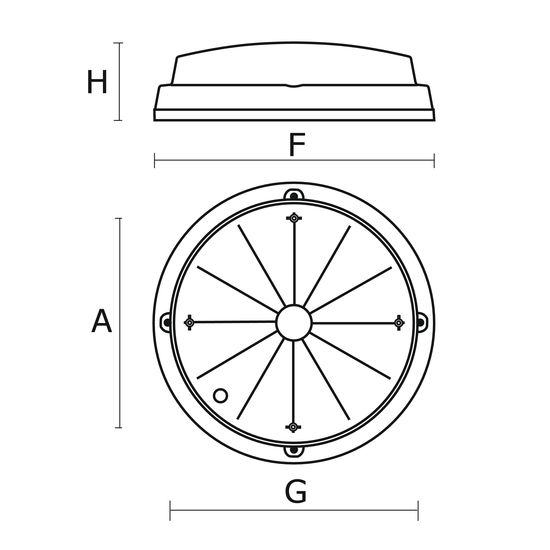

| H | F |
|---|---|
| 110 | 400 |
H - Height / Depth
F - Outer diameter
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
