Corner connector for 1-circuit HV-track Accessories, Mounting Elements Tracks, Connectors & Accessories

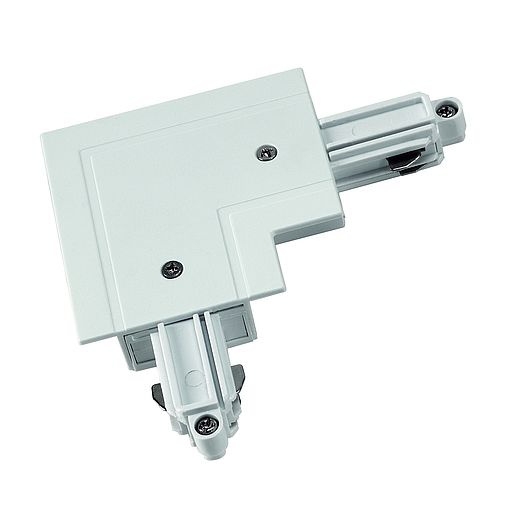

SLV Corner connector for 1-circuit HV-track, recessed version, white, ground outside

From € 17,21 incl. VAT
From € 17,21 ex. VAT

See variants (8)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 8

Corner connector for 1-circuit HV-track, surface-mounted, black, ground inside

Karta produktu PDF

Electrico24 code: 65878 | SLV code: 143060 Gross weight: 0.077 kg Net weight: 0.07 kg Voltage: 230 Volt Protection class: I Colour: black Material: plastic Remark 1: With feed-in possibility Way of mounting: track system mounting Remark 2: Maximum load 16A Height: 1.8 cm see more »

Length: 6.5 cm Width: 6.5 cm remark5: Detailed planning information can be found in the service area subarea downloads Feed-in capability: Yes « hide more

€ 17,21 € 17,21 ex. VAT

Corner connector for 1-circuit HV-track, surface-mounted, black, ground outside

Karta produktu PDF

Electrico24 code: 65875 | SLV code: 143050 Gross weight: 0.044 kg Net weight: 0.07 kg Voltage: 230 Volt Protection class: I Colour: black Material: plastic Remark 1: With feed-in possibility Way of mounting: track system mounting Remark 2: Maximum load 16A Height: 1.8 cm see more »

Length: 6.5 cm Width: 6.5 cm remark5: Detailed planning information can be found in the service area subarea downloads Feed-in capability: Yes « hide more

€ 17,21 € 17,21 ex. VAT

Corner connector for 1-circuit HV-track, surface-mounted, silvergrey, ground inside

Karta produktu PDF

Electrico24 code: 65880 | SLV code: 143062 Gross weight: 0.077 kg Net weight: 0.075 kg Voltage: 230 Volt Protection class: I Colour: silvergrey Material: plastic Remark 1: With feed-in possibility Way of mounting: track system mounting Remark 2: Maximum load 16A Height: 1.8 cm see more »

Length: 6.5 cm Width: 6.5 cm remark5: Detailed planning information can be found in the service area subarea downloads Feed-in capability: Yes « hide more

€ 17,21 € 17,21 ex. VAT

Corner connector for 1-circuit HV-track, surface-mounted, silvergrey, ground outside

Karta produktu PDF

Electrico24 code: 65877 | SLV code: 143052 Gross weight: 0.077 kg Net weight: 0.074 kg Voltage: 230 Volt Protection class: I Colour: silvergrey Material: plastic Remark 1: With feed-in possibility Way of mounting: track system mounting Remark 2: Maximum load 16A Height: 1.8 cm see more »

Length: 6.5 cm Width: 6.5 cm remark5: Detailed planning information can be found in the service area subarea downloads Feed-in capability: Yes « hide more

€ 17,21 € 17,21 ex. VAT

Corner connector for 1-circuit HV-track, surface-mounted, white, ground inside

Karta produktu PDF

Electrico24 code: 65879 | SLV code: 143061 Gross weight: 0.079 kg Net weight: 0.075 kg Voltage: 230 Volt Protection class: I Colour: white Material: plastic Remark 1: With feed-in possibility Way of mounting: track system mounting Remark 2: Maximum load 16A Height: 1.8 cm see more »

Length: 6.5 cm Width: 6.5 cm remark5: Detailed planning information can be found in the service area subarea downloads Feed-in capability: Yes « hide more

€ 17,21 € 17,21 ex. VAT

Corner connector for 1-circuit HV-track, surface-mounted, white, ground outside

Karta produktu PDF

Electrico24 code: 65876 | SLV code: 143051 Gross weight: 0.044 kg Net weight: 0.075 kg Voltage: 230 Volt Protection class: I Colour: white Material: plastic Remark 1: With feed-in possibility Way of mounting: track system mounting Remark 2: Maximum load 16A Height: 1.8 cm see more »

Length: 6.5 cm Width: 6.5 cm remark5: Detailed planning information can be found in the service area subarea downloads Feed-in capability: Yes « hide more

€ 17,21 € 17,21 ex. VAT

Corner connector for 1-circuit HV-track, recessed version, white, ground inside

Karta produktu PDF

Electrico24 code: 65921 | SLV code: 143261 Gross weight: 0.066 kg Net weight: 0.104 kg Voltage: 230 Volt Protection class: I Colour: white Material: plastic Remark 1: Maximum load 16A. With feed-in possibility Way of mounting: track system mounting Remark 2: Installation dimensions (L / W / H): 6,5 / 6,5 / 1,7 Height: 2 cm see more »

Length: 11.2 cm Width: 11.2 cm Remark 3: Visible dimensions (L / W / H): 7,5 / 7,5 / 0,2 remark5: Detailed planning information can be found in the service area subarea downloads Feed-in capability: Yes « hide more

€ 21,90 € 21,90 ex. VAT

Corner connector for 1-circuit HV-track, recessed version, white, ground outside

Karta produktu PDF

Electrico24 code: 65920 | SLV code: 143251 Gross weight: 0.066 kg Net weight: 0.103 kg Voltage: 230 Volt Protection class: I Colour: white Material: plastic Remark 1: Maximum load 16A. With feed-in possibility Way of mounting: track system mounting Remark 2: Installation dimensions (L / W / H): 6,5 / 6,5 / 1,7 Height: 2 cm see more »

€ 21,90 € 21,90 ex. VAT

Description / FAQ Warranty

Corner connector with feed capability for the 1-circuit track system. Available in various colour versions, you can also choose the ground conductor's position left or right depending on your individual installation. More detailed information can be provided on request.
