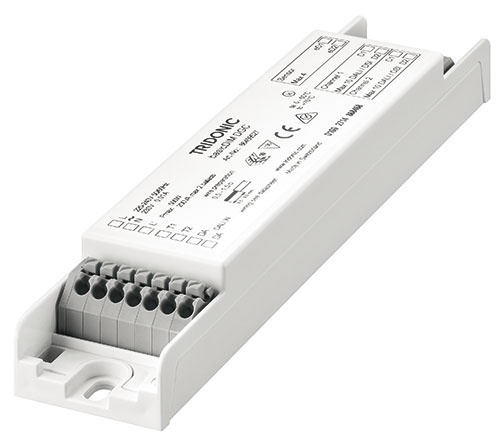

BasicDIM DGC Dimmers

Electrico24 code: 72787 | Tridonic code: 28000920

Price € 114,88 incl. VAT
€ 94,16 netto

Packaging, carton 10 pc(s).
Inputs double
Output, relay (L') 2
Mounting Luminaire installation
Outputs 2
CH2 as Link Line 13 V
CE CE
ENEC ENEC
RoHs RoHs
Rated supply voltage 220 – 240 V
Mains frequency 50 / 60 Hz
Storage temperature ts -25 ... +70 °C
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Data sheet

Score

rate product

1 variant available

basicDIM DGC

Karta produktu PDF

Electrico24 code: 72787 | Tridonic code: 28000920 Packaging, carton: 10 pc(s). Inputs: double Output, relay (L'): 2 Mounting: Luminaire installation Outputs: 2 CH2 as Link Line: 13 V

€ 114,88 € 94,16 ex. VAT

Description / FAQ Warranty

Packaging, carton	10 pc(s).
Inputs	double
Output, relay (L')	2
Mounting	Luminaire installation
Outputs	2
CH2 as Link Line	13 V
Tridonic - parametry
	CE
	ENEC
	RoHs
Rated supply voltage	220 – 240 V
Mains frequency	50 / 60 Hz
Storage temperature ts	-25 ... +70 °C
Max. casing temperature tc	70 °C
Type of protection	IP20
Power	2.5 W
Operating temperature	0 ... +60 °C
Output, stand-by	0.5 W
Current draw, input (DALI bus)	2 mA

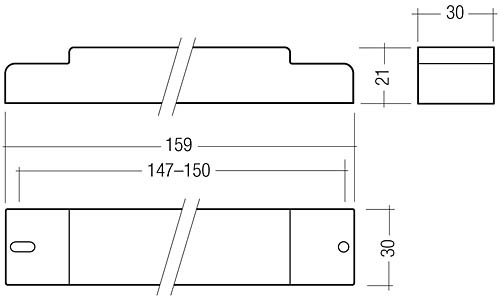

Compact dimensions for luminaire installation
For up to 20 DSI or DALI devices (max. 10 per output channel)
DALI IN input
2 DALI/DSI output channels with adjustable negative off set from channel 2 to channel 1
1 relais output
Sensor input for up to 4 basicDIM DGC sensors 5DPI 14
2 switch inputs for on/off switching and dimming
Individual adjustment of the parameters with basicDIM DGC Programmer or software masterCONFIGURATOR
5-year guarantee

BasicDIM DGC

Rated 5.0/5 based on 1 customer reviews
