Switchgear on DIN rail DB108F 1X8P/FMD Switchgears

Electrico24 code: 61823 | Kanlux code: 3842

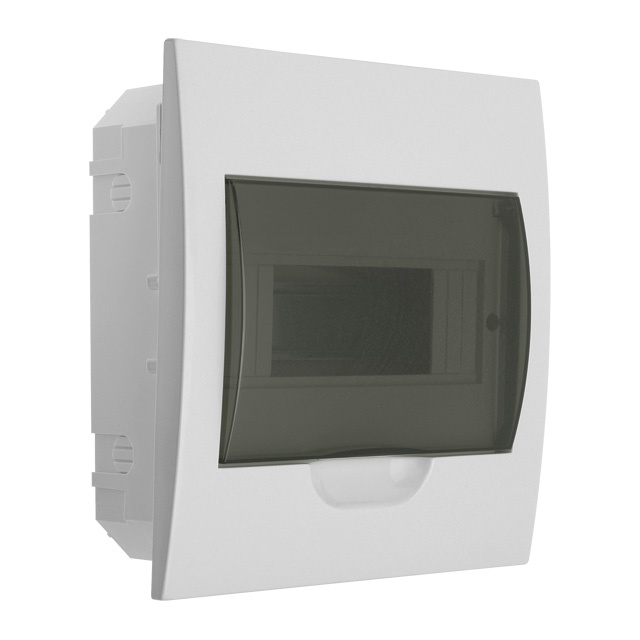

Switchgear on DIN rail Kanlux DB108F 1X8P/FMD

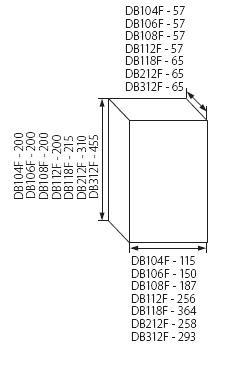

Switchgear on DIN rail Kanlux DB108F 1X8P/FMD - technical drawing

Price € 9,11 incl. VAT
€ 9,11 netto

Fullfillment time

1-2 dni

Dostępność w magazynie
Number of light color 8P
Supackage / package quantity 1/-/20
rate defining protection against mechanical impacts
II protection class
conformity with European standards
applicable indoors
protection against solid objects over 1mm
Rated frequency 50Hz
for building in vertical surface
permissible surrounding temperature from -25 to max 55 C degrees
rated voltage 400V
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Manual Catalogue page CE Conformity declaration

Score

rate product

Select your product from the 4

Switchgear on DIN rail DB104F 1X4P/FMD

Karta produktu PDF

Electrico24 code: 61821 | Kanlux code: 3840 Fullfillment time 1-2 dni Dostępność: w magazynie Number of light color: 4P Supackage / package quantity: 1/-/20 Weight: 0,45

€ 7,42 € 7,42 ex. VAT

Switchgear on DIN rail DB106F 1X6P/FMD

Karta produktu PDF

Electrico24 code: 61822 | Kanlux code: 3841 Fullfillment time 1-2 dni Dostępność: w magazynie Number of light color: 6P Supackage / package quantity: 1/-/20 Weight: 0,65

€ 7,64 € 7,64 ex. VAT

Switchgear on DIN rail DB108F 1X8P/FMD (currently dislayed)

Karta produktu PDF

Electrico24 code: 61823 | Kanlux code: 3842 Fullfillment time 1-2 dni Dostępność: w magazynie Number of light color: 8P Supackage / package quantity: 1/-/20 Weight: 0,51

€ 9,11 € 9,11 ex. VAT

Switchgear on DIN rail DB118F 1X18P/FMD

Karta produktu PDF

Electrico24 code: 61825 | Kanlux code: 3844 Fullfillment time 1-2 dni Dostępność: w magazynie Number of light color: 18P Supackage / package quantity: 1/-/10 Weight: 1,00

€ 18,28 € 18,28 ex. VAT

Description / FAQ Warranty

Dostępność	w magazynie
Number of light color	8P
Supackage / package quantity	1/-/20
Kanlux Parameters
	rate defining protection against mechanical impacts
	II protection class
	conformity with European standards
	applicable indoors
	protection against solid objects over 1mm
	Rated frequency 50Hz
	for building in vertical surface
	permissible surrounding temperature from -25 to max 55 C degrees
	rated voltage 400V

casing, door: ABS plastic / color: white/brown
colour: white/brown
door opening upwards
housing heat resistance 850°C, for electric equipment 650°C/30s
maximum allowable housing temperature 70°C
