Electrical data |
|
| Nominal voltage | 10 24 V |
| Nominal output power | 120 W |
| Input voltage AC | 10.5 24 V |
| Mains frequency | 0 Hz |
| Nominal output voltage | 10.5 24 V |
| Device power loss | 4.0 W |
| ECG efficiency | 96 % |
| Galvanic isolation primary/secondary | 3.75 kV |

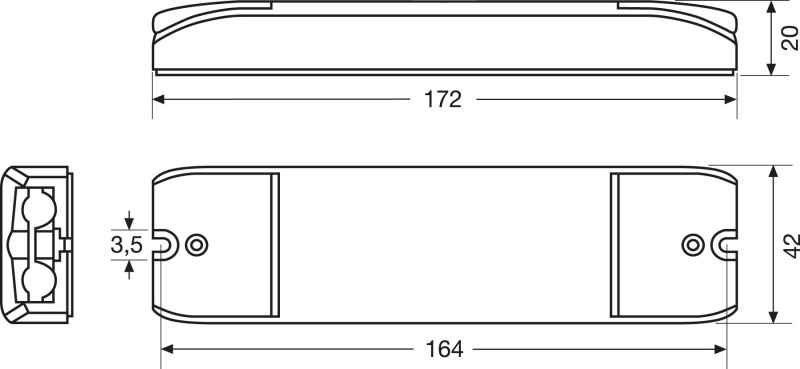

Dimensions & weight |
|
| Length | 172.0 mm |
| Width | 42.0 mm |
| Height | 20.0 mm |
| Mounting hole spacing, length | 164.0 mm |
| Cable cross-section, input side | 0.5 1.5 mm² |
| Product weight | 81.00 g |
| Cable cross-section, output side | 0.5 1.5 mm² |
| Wire preparation length, input side | 10 mm |
Lifespan |
|
| ECG lifetime | 50000 h |
Capabilities |
|
| Dimmable | Yes |
| Suitable for fixtures with prot. class | II |
| Overheating protection | Automatic reversible |
| Max. cable length to lamp/LED module | - |
| No-load proof | Yes |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
| Dimming range | 0 100 % |
Certificates & standards |
|
| Approval marks approval | CE / UR / VDE / VDE-EMC |
| Standards | acc. to EN 55015/acc. to EN 61547/acc. to EN 61046/acc. to IEC 61347-2-2/acc. to UL 508 |
| Type of protection | IP20 |
Colors & materials |
|
| Casing material | Plastic |
Temperatures |
|
| Ambient temperature range | -20 +50 °C |
| Maximum temperature at tc test point | 70 °C |
| Temperature range at storage | -25 85 °C |
| Max.housing temperature in case of fault | 100 °C |
Product benefits
Areas of application
Product features
