TALEXXdriver LCU 180W 24V IP20 EXC LED Drivers

Electrico24 code: 71662 | Tridonic code: 28000414

Tridonic TALEXXdriver LCU 180W 24V IP20 EXC

Price € 149,46 incl. VAT
€ 122,50 netto

Max. input power 211 W
Packaging, carton 10 pc(s).
Packaging, pallet 400 pc(s).
Weight per pc. 0.85 kg
Max. output voltage 25.2 V
Max. casing temperature tc 90 °C
Output current range 0.75 – 7.5 A
Output voltage 24 V
110
CE CE
CLASS2 CLASS2
EL EL
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Data sheet

Score

rate product

1 variant available

LCU 180W 24V TOP SR

Karta produktu PDF

Electrico24 code: 71662 | Tridonic code: 28000414 Max. input power: 211 W Packaging, carton: 10 pc(s). Packaging, pallet: 400 pc(s). Weight per pc.: 0.85 kg Max. output voltage: 25.2 V Max. casing temperature tc: 90 °C Output current range: 0.75 – 7.5 A Output voltage: 24 V

€ 149,46 € 122,50 ex. VAT

Description / FAQ Warranty

Max. input power	211 W
Packaging, carton	10 pc(s).
Packaging, pallet	400 pc(s).
Weight per pc.	0.85 kg
Max. output voltage	25.2 V
Max. casing temperature tc	90 °C
Output current range	0.75 – 7.5 A
Output voltage	24 V
Tridonic - parametry
	110
	CE
	CLASS2
	EL
	ENEC
	IP20
	Independent gear
	MM
	RCM
	RoHs
	SC2 - Protection Class 2
	SELV
	Short Circuit Proof
	UL
	cCSAus
AC voltage range	108 – 305 V
Rated supply voltage	120 – 277 V
DC voltage range	176 – 288 V
Mains frequency	0 / 50 / 60 Hz
λ (at 230 V, 50 Hz, full load)	0.95
Mains surge capability (between L - N)	1 kV
Mains surge capability (between L/N - PE)	1 kV

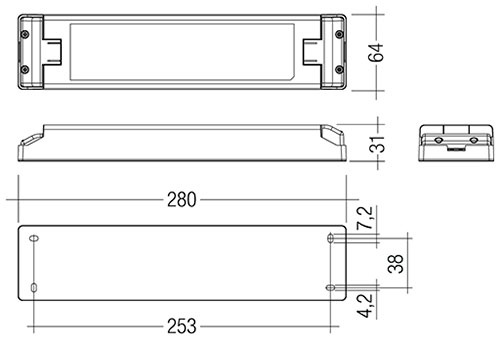

Dimensions L x W x H	280 x 64 x 31 mm
Ambient temperature ta	-25 ... +60 °C
Hold on time at power failure (output)	10 ms
Storage temperature ts	-40 ... +85 °C
Output power range	18 – 180 W
Efficiency (at 230 V, 50 Hz, full load)	> 90 %
Turn off time (output)	≤ 1 s
Turn on time (output)	≤ 0.5 s
Hole spacing D	253 mm
Surge voltage at output side (against PE)	< 500 V
Output voltage tolerance	-0 ... +5 %
Rated current (at 230 V, 50 Hz, full load)	0.92 A
Output power (ta > 50 °C)	126 W
Output power (ta ≤ 50 °C)	180 W
Ambient temperature ta (at life-time 50,000 h)(1)	-25 ... +45 °C

Constant voltage LED Driver
Universal input voltage range
Constant output voltage
Push terminals for simple wiring
Nominal life-time up to 50,000 h (at ta 45 °C with a failure rate ≤ 0.2 % per 1,000 h)
5-year guarantee
Suitable for emergency escape lighting systems acc. to EN 50172
Complies with CLASS C from minimum to maximum load range according to EN 61000-3-2

Properties

Small design
High efficiency
Low power loss
Overtemperature and overload protection
Short-circuit shutdown feature with automatic restart
Protection class II, SELV
Type of protection IP20
Plastic casing white
