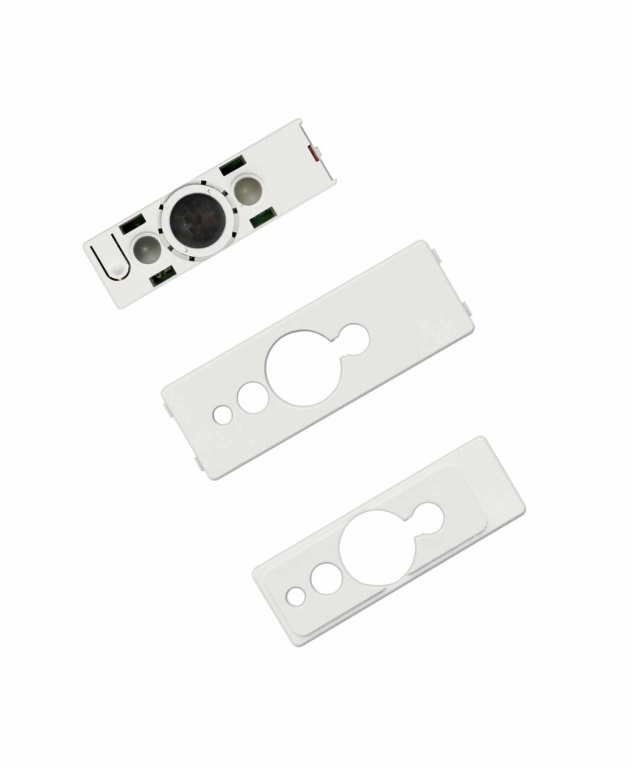

DALIeco LS/PD LI Movement Detectors

Electrico24 code: 56772 | Osram code: 4008321988652
Price € 44,49 incl. VAT
€ 44,49 netto
pc(s)
pc(s)
  • Length 48.0 mm
  • Width 15.0 mm
  • Height 17.0 mm
  • Product weight 33.00 g
  • Dimming interface DALI
  • Type of installation Ceiling integration/Luminaire integration
  • Detection angle 80 °
  • Detection area 7 m²
  • Maximum installation height 5 m
  • Operating range, light sensor 20…800 lx
  • Type of protection IP20
  • Product color Grey
  • ▼ see full specification ▼
Ask for product Description / FAQ / Warranty

Score

* * * * *

rate product

1 variant available

DALIeco LS/PD LI
DALIeco LS/PD LI
Karta produktu PDF
Electrico24 code: 56772 | Osram code: 4008321988652
€ 44,49 € 44,49 ex. VAT
pc(s)
pc(s)

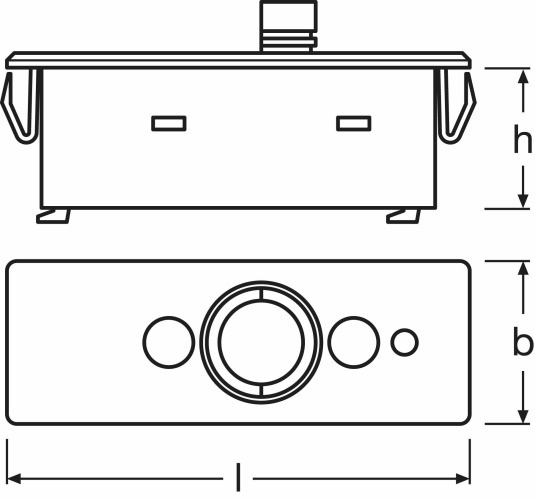

Dimensions & weight
Length 48.0 mm
Width 15.0 mm
Height 17.0 mm
Product weight 33.00 g

Capabilities
Dimming interface DALI
Type of installation Ceiling integration/Luminaire integration
Detection angle 80 °
Detection area 7 m²
Maximum installation height 5 m
Operating range, light sensor 20…800 lx

Certificates & standards
Type of protection IP20

Colors & materials
Product color Grey

Temperatures
Ambient temperature range 0…+50 °C

Product benefits

  • VDE/VDE EMC certified system
  • V(λ) corrected light sensor element
  • Individual activation/deactivation of light and presence sensor via remote control
  • Presence detection angle adjustable between 40…90° via integrated shutters

Areas of application

  • Office luminaires
  • Ceiling installation via LS/PD CI KIT possible

Product features

  • Light and presence sensor
  • Presence detection via passive IR element
  • Function indicator with two-color LED
  • Integrated  infrared remote control receiver
  • Integrated pushbutton for automatic startup/deactivation of infrared receiver
  • Halogen free polycarbonate plastic housing
  • Connection via polarity reversal protected 4p4c socket (RJ10)
