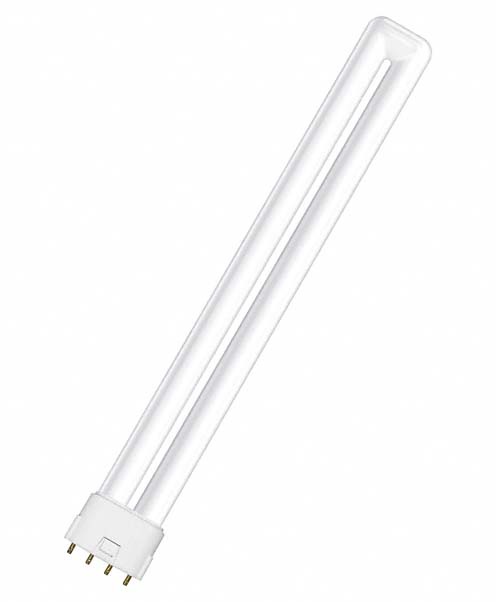

Fluorescent Lamp DULUX L HE Speciality Fluorrescent Lamps

Price € 7,78 € 7,78 ex. VAT

See variants (2)

Color rendering index Ra 8089
Rated LLMF at 4,000 h 0.93
Rated LLMF at 6,000 h 0.91
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.87
Rated LLMF at 16,000 h 0.85
Rated LLMF at 20,000 h 0.83
Tube diameter 17.5 mm
Nominal lamp life time 20000 h
Rated lamp life time 20000 h
Lifespan 20000 h
Rated lamp survival factor at 2,000 h 0.99
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

DULUX L HE 28 W/830 2GX11

Karta produktu PDF

Electrico24 code: 55998 | Osram code: 4008321296719 Construction wattage [PICOS]: 28.00 W Nominal voltage: 147 V Nominal wattage: 28.00 W Color temperature: 3000 K Nominal luminous flux: 2700 lm Rated luminous flux: 2700 lm Light color as per EN 12464-1: LUMILUX Warm White Overall length: 565.0 mm Length: 565.0 mm Energy consumption: 31 kWh/1000h see more »

ILCOS: FSDH-28/830-/P/-2G11-43,9/566 Nominal current: 0.19 A Product weight: 147.00 g Light color: 830 Luminous flux at 25 °C: 2700 lm Length with base excl. base pins/connection: 566.00 mm Luminous flux at 35 °C: 2800 lm « hide more

€ 7,78 € 7,78 ex. VAT

DULUX L HE 28 W/840 2GX11

Karta produktu PDF

Electrico24 code: 55999 | Osram code: 4008321296757 Construction wattage [PICOS]: 28.00 W Nominal voltage: 147 V Nominal wattage: 28.00 W Color temperature: 4000 K Nominal luminous flux: 2700 lm Rated luminous flux: 2700 lm Light color as per EN 12464-1: LUMILUX Cool White Overall length: 565.0 mm Length: 565.0 mm Energy consumption: 31 kWh/1000h see more »

ILCOS: FSDH-28/840-/P/-2G11-43,9/566 Nominal current: 0.19 A Product weight: 147.00 g Light color: 840 Luminous flux at 25 °C: 2700 lm Length with base excl. base pins/connection: 566.00 mm Luminous flux at 35 °C: 2800 lm « hide more

€ 7,78 € 7,78 ex. VAT

Description / FAQ Warranty

Photometrical data
Color rendering index Ra	8089
Rated LLMF at 4,000 h	0.93
Rated LLMF at 6,000 h	0.91
Rated LLMF at 8,000 h	0.90
Rated LLMF at 12,000 h	0.87
Rated LLMF at 16,000 h	0.85
Rated LLMF at 20,000 h	0.83
Dimensions & weight

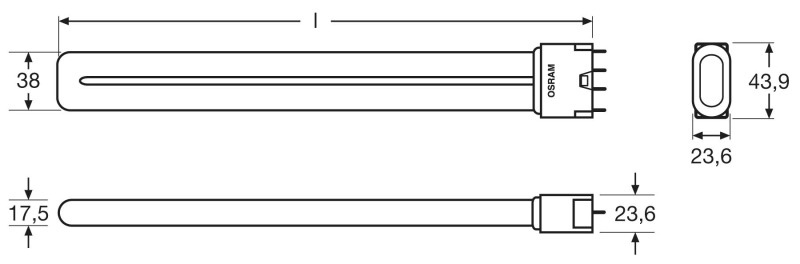

Tube diameter	17.5 mm
Lifespan
Nominal lamp life time	20000 h
Rated lamp life time	20000 h
Lifespan	20000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Service life	13000 h
Operation mode LLMF/LSF	HF
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.95
Rated lamp survival factor at 16,000 h	0.81
Rated lamp survival factor at 20,000 h	0.50
Additional product data
Base (standard designation)	2GX11
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	1.7 mg
Product remark	For ECG operation only
Capabilities
Suitable for indoor	Yes
Certificates & standards
Energy efficiency class	A+
Temperatures
Rated ambient temp.w.max.luminous flux	35.0 °C

Product benefits

A new generation of highly efficient and cost-effective luminaires can now be created
Very good luminous flux
Good quality of light
Optimized for indoor lighting, max. luminous flux at ambient temperature 35 °C
Improved maintenance

Areas of application

Direct and indirect lighting
Shops
Hotels, restaurants
Industry, trade and commerce
Offices, public buildings
Industry

Product features

Short and compact pin-base lamp with double-turn tubes
Single-ended four-pin plug-in 2GX11 base
Luminous efficacy: 100 lm/W (at ambient temperature 35 °C)
Long average life: 20,000 h (with QUICKTRONIC)
Dimmable (1…100 %)
Color rendering index Ra: 80…89

Equipment / Accessories

Suitable for operation on electronic control gear
