Fluorescent Lamp U-shaped T8 Speciality Fluorrescent Lamps

From € 17,59 incl. VAT
From € 17,59 ex. VAT

See variants (6)

Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
Color rendering index Ra 8089
Rated LLMF at 4,000 h 0.84
Rated LLMF at 6,000 h 0.80
Rated LLMF at 8,000 h 0.76
Rated LLMF at 12,000 h 0.70
Rated LLMF at 2,000 h 0.88
Diameter 26.0 mm
Maximum diameter 26.0 mm
Tube diameter 26 mm
Nominal lamp life time 13000 h
Rated lamp life time 13000 h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 6

L U 18 W/830

Karta produktu PDF

Electrico24 code: 56913 | Osram code: 4008321959904 Nominal wattage: 18.00 W Color temperature: 3000 K Nominal luminous flux: 1350 lm Rated luminous flux: 1350 lm Diameter: 26.0 mm Length: 310.0 mm Nominal lamp life time: 13000 h Rated lamp life time: 13000 h Base (standard designation): 2G13 Appropriate disposal acc. to WEEE: Yes see more »

Energy efficiency class: A Color rendering index Ra: 8089 Maximum diameter: 26.0 mm Lamp mercury content: 8.0 mg Energy consumption: 23 kWh/1000h Tube diameter: 26 mm Lifespan: 13000 h Light color: 830 Luminous flux at 25 °C: 1350 lm Rated LLMF at 4,000 h: 0.84 Rated LLMF at 6,000 h: 0.80 Rated LLMF at 8,000 h: 0.76 Rated lamp survival factor at 2,000 h: 0.99 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.96 Service life: 5000 h Operation mode LLMF/LSF: 50 Hz Rated lamp survival factor at 8,000 h: 0.94 Suitable for indoor: Yes Rated LLMF at 12,000 h: 0.70 Rated lamp survival factor at 12,000 h: 0.65 Length with base excl. base pins/connection: 310.00 mm Rated ambient temp.w.max.luminous flux: 25.0 °C Rated lamp efficacy (HF data 25 °C): Under clarification by authority and standardization body Rated lamp efficacy (standard condition): 75 lm/W Rated LLMF at 2,000 h: 0.88 Rated wattage: 18.00 W « hide more

€ 17,59 € 17,59 ex. VAT

L U 18 W/840

Karta produktu PDF

Electrico24 code: 56226 | Osram code: 4008321469168 Construction wattage [PICOS]: 18.00 W Nominal wattage: 18.00 W Color temperature: 4000 K Nominal luminous flux: 1350 lm Rated luminous flux: 1350 lm Length: 310.0 mm New article: NEW Lamp mercury content: 8.0 mg Energy consumption: 23 kWh/1000h Light color: 840 see more »

Luminous flux at 25 °C: 1350 lm Length with base excl. base pins/connection: 310.00 mm Rated lamp efficacy (standard condition): 75 lm/W « hide more

€ 17,59 € 17,59 ex. VAT

L U 36 W/830

Karta produktu PDF

Electrico24 code: 56268 | Osram code: 4008321959911 Construction wattage [PICOS]: 36.60 W Nominal wattage: 36.00 W Color temperature: 3000 K Nominal luminous flux: 3350 lm Rated luminous flux: 3350 lm Length: 607.0 mm Lamp mercury content: 8.0 mg Energy consumption: 41 kWh/1000h Light color: 830 Luminous flux at 25 °C: 3550 lm Length with base excl. base pins/connection: 607.00 mm Rated lamp efficacy (standard condition): 93 lm/W

€ 18,19 € 18,19 ex. VAT

L U 36 W/840

Karta produktu PDF

Electrico24 code: 56271 | Osram code: 4008321469182 Construction wattage [PICOS]: 36.60 W Nominal wattage: 36.00 W Color temperature: 4000 K Nominal luminous flux: 3350 lm Rated luminous flux: 3350 lm Length: 607.0 mm New article: NEW Lamp mercury content: 8.0 mg Energy consumption: 41 kWh/1000h Light color: 840 see more »

Luminous flux at 25 °C: 3350 lm Length with base excl. base pins/connection: 607.00 mm Rated lamp efficacy (standard condition): 93 lm/W « hide more

€ 18,19 € 18,19 ex. VAT

L U 58 W/830

Karta produktu PDF

Electrico24 code: 56299 | Osram code: 4008321959041 Construction wattage [PICOS]: 58.40 W Nominal wattage: 58.00 W Color temperature: 3000 K Nominal luminous flux: 5250 lm Rated luminous flux: 5250 lm Length: 765.0 mm Lamp mercury content: 12.0 mg Energy consumption: 65 kWh/1000h Light color: 830 Luminous flux at 25 °C: 5250 lm Length with base excl. base pins/connection: 765.00 mm Rated lamp efficacy (standard condition): 90 lm/W

€ 18,78 € 18,78 ex. VAT

L U 58 W/840

Karta produktu PDF

Electrico24 code: 56302 | Osram code: 4008321469205 Construction wattage [PICOS]: 58.40 W Nominal wattage: 58.00 W Color temperature: 4000 K Nominal luminous flux: 5250 lm Rated luminous flux: 5250 lm Length: 765.0 mm Lamp mercury content: 12.0 mg Energy consumption: 65 kWh/1000h Light color: 840 Luminous flux at 25 °C: 5250 lm Length with base excl. base pins/connection: 765.00 mm Rated lamp efficacy (standard condition): 90 lm/W

€ 18,78 € 18,78 ex. VAT

Description / FAQ Warranty

Electrical data
Rated lamp efficacy (HF data 25 °C)	Under clarification by authority and standardization body
Photometrical data
Color rendering index Ra	8089
Rated LLMF at 4,000 h	0.84
Rated LLMF at 6,000 h	0.80
Rated LLMF at 8,000 h	0.76
Rated LLMF at 12,000 h	0.70
Rated LLMF at 2,000 h	0.88

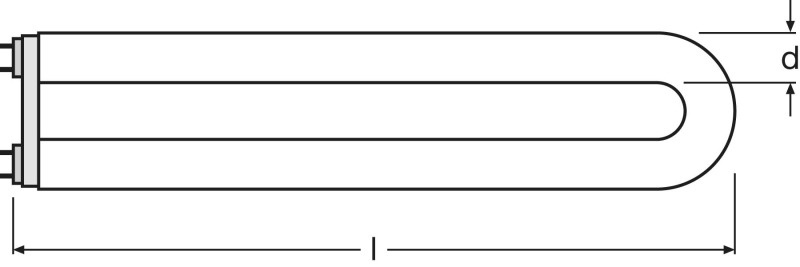

Dimensions & weight
Diameter	26.0 mm
Maximum diameter	26.0 mm
Tube diameter	26 mm
Lifespan
Nominal lamp life time	13000 h
Rated lamp life time	13000 h
Lifespan	13000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.98
Rated lamp survival factor at 6,000 h	0.96
Service life	5000 h
Operation mode LLMF/LSF	50 Hz
Rated lamp survival factor at 8,000 h	0.94
Rated lamp survival factor at 12,000 h	0.65
Additional product data

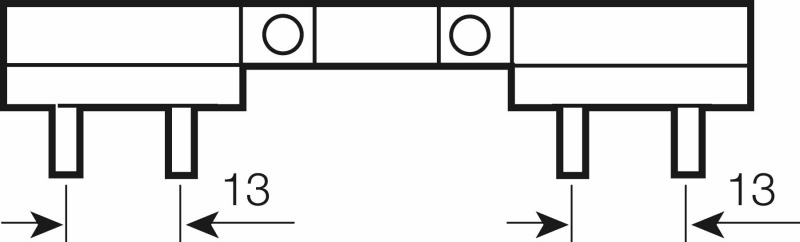

Base (standard designation)	2G13
Appropriate disposal acc. to WEEE	Yes
Capabilities
Suitable for indoor	Yes
Certificates & standards
Energy efficiency class	A
Temperatures
Rated ambient temp.w.max.luminous flux	25.0 °C

Product benefits

Extremely economical
Good quality of light
Excellent luminous flux

Areas of application

Street lighting, city lighting
Industry

Product features

Good color rendering group: 1B (Ra: 80…89)
Good average lifetime

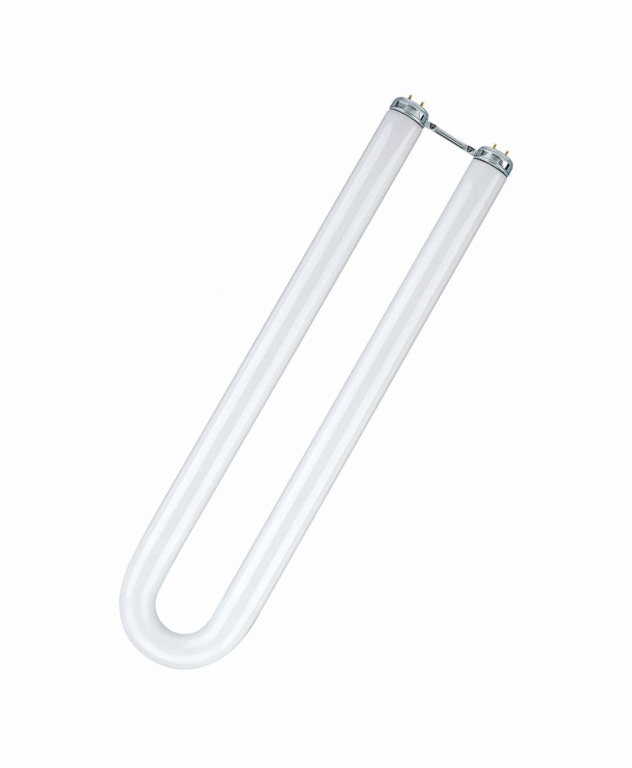

Double-ended U-shaped fluorescent lamp

Equipment / Accessories

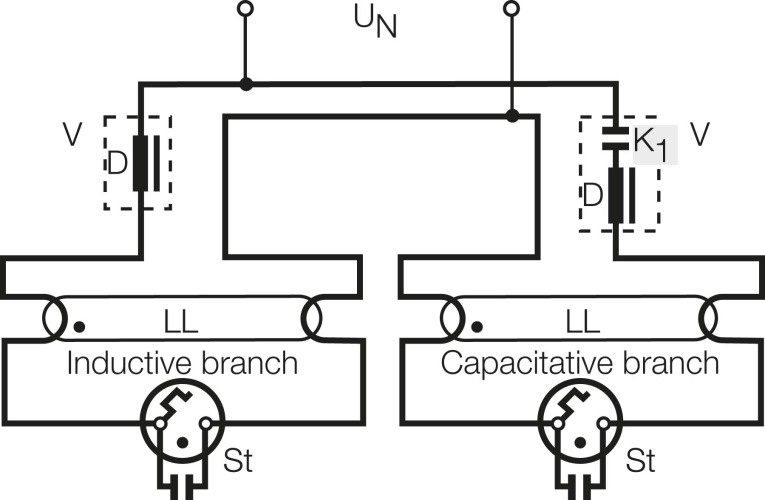

Suitable for operation on electronic and conventional control gears

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp

System guarantee
OSRAM System+ Guarantee in combination with OSRAM ECGs
