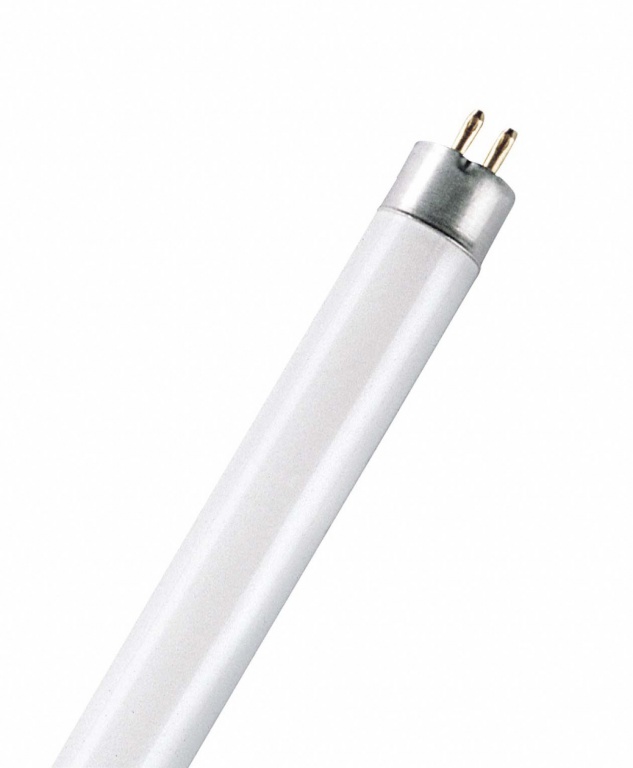

Fluorescent Lamp LUMILUX DE LUXE T5 HO Fluorescent Lamps T5/G5

Price € 11,07 € 11,07 ex. VAT

See variants (6)

Color rendering index Ra ≥90
Rated LLMF at 4,000 h 0.92
Rated LLMF at 6,000 h 0.91
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.90
Rated LLMF at 16,000 h 0.90
Rated LLMF at 20,000 h 0.89
Rated LLMF at 2,000 h 0.95
Diameter 16.0 mm
Maximum diameter 16.0 mm
Tube diameter 16 mm
Nominal lamp life time 24000 h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 6

HO 24 W/940

Karta produktu PDF

Electrico24 code: 56884 | Osram code: 4008321233028 Nominal wattage: 22.50 W Color temperature: 4000 K Nominal luminous flux: 1400 lm Rated luminous flux: 1400 lm Light color as per EN 12464-1: LUMILUX DE LUXE Cool White Diameter: 16.0 mm Length: 549.0 mm Rated lamp life time: 0 h Base (standard designation): G5 Appropriate disposal acc. to WEEE: Yes see more »

Energy efficiency class: A Color rendering index Ra: ≥90 Lamp mercury content: 1.5 mg Energy consumption: 25 kWh/1000h Tube diameter: 16 mm Lifespan: 24000 h Product remark: Suitable for ECG operation only/Lamp designed for internal luminaire temperatures of 3040 °C; optimum luminous flux achieved at 35 °C Light color: 940 Luminous flux at 25 °C: 1400 lm Rated LLMF at 4,000 h: 0.92 Rated LLMF at 6,000 h: 0.91 Rated LLMF at 8,000 h: 0.90 Rated lamp survival factor at 2,000 h: 0.99 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 6,000 h: 0.99 Service life: 19000 h Operation mode LLMF/LSF: HF Rated lamp survival factor at 8,000 h: 0.99 Suitable for indoor: Yes Rated LLMF at 12,000 h: 0.90 Rated lamp survival factor at 12,000 h: 0.99 Length with base excl. base pins/connection: 549.00 mm Rated ambient temp.w.max.luminous flux: 35.0 °C Rated lamp efficacy (HF data 25 °C): Under clarification by authority and standardization body Rated LLMF at 16,000 h: 0.89 Rated LLMF at 20,000 h: 0.89 Rated lamp survival factor at 16,000 h: 0.95 Rated lamp survival factor at 20,000 h: 0.81 Luminous flux at 35 °C: 1570 lm Rated lamp efficacy (standard condition): 86 lm/W Rated LLMF at 2,000 h: 0.95 Rated wattage: 22.50 W « hide more

€ 11,07 € 11,07 ex. VAT

HO 24 W/965

Karta produktu PDF

Electrico24 code: 56165 | Osram code: 4008321233042 Construction wattage [PICOS]: 22.50 W Nominal wattage: 22.50 W Color temperature: 6500 K Nominal luminous flux: 1400 lm Rated luminous flux: 1400 lm Light color as per EN 12464-1: LUMILUX DE LUXE Cool Daylight Length: 549.0 mm Energy efficiency class: A Energy consumption: 25 kWh/1000h Light color: 965 see more »

Luminous flux at 25 °C: 1400 lm Length with base excl. base pins/connection: 549.00 mm Rated lamp efficacy (HF data 25 °C): Under clarification by authority and standardization body Luminous flux at 35 °C: 1570 lm Rated lamp efficacy (standard condition): 62 lm/W « hide more

€ 11,07 € 11,07 ex. VAT

HO 49 W/940

Karta produktu PDF

Electrico24 code: 56177 | Osram code: 4008321234025 Construction wattage [PICOS]: 49.20 W Nominal wattage: 49.20 W Color temperature: 4000 K Nominal luminous flux: 3500 lm Rated luminous flux: 3500 lm Light color as per EN 12464-1: LUMILUX DE LUXE Cool White Length: 1449.0 mm Energy efficiency class: A+ Energy consumption: 55 kWh/1000h Light color: 940 see more »

Luminous flux at 25 °C: 3500 lm Length with base excl. base pins/connection: 1449.00 mm Rated lamp efficacy (HF data 25 °C): 71 lm/W Luminous flux at 35 °C: 3850 lm « hide more

€ 11,07 € 11,07 ex. VAT

HO 49 W/965

Karta produktu PDF

Electrico24 code: 56178 | Osram code: 4008321233066 Construction wattage [PICOS]: 49.20 W Nominal wattage: 49.20 W Color temperature: 6500 K Nominal luminous flux: 3450 lm Rated luminous flux: 3450 lm Light color as per EN 12464-1: LUMILUX DE LUXE Cool Daylight Length: 1449.0 mm Energy efficiency class: A Energy consumption: 55 kWh/1000h Light color: 965 see more »

Luminous flux at 25 °C: 3450 lm Length with base excl. base pins/connection: 1449.00 mm Rated lamp efficacy (HF data 25 °C): 70 lm/W Luminous flux at 35 °C: 3795 lm « hide more

€ 11,07 € 11,07 ex. VAT

HO 54 W/940

Karta produktu PDF

Electrico24 code: 56187 | Osram code: 4008321233929 Construction wattage [PICOS]: 54.10 W Nominal voltage: 230 V Nominal wattage: 54.10 W Color temperature: 4000 K Nominal luminous flux: 3800 lm Rated luminous flux: 3800 lm Light color as per EN 12464-1: LUMILUX DE LUXE Cool White Length: 1149.0 mm Energy efficiency class: A Energy consumption: 60 kWh/1000h see more »

Light color: 940 Luminous flux at 25 °C: 3800 lm Length with base excl. base pins/connection: 1149.00 mm Rated lamp efficacy (HF data 25 °C): Under clarification by authority and standardization body Luminous flux at 35 °C: 4250 lm Rated lamp efficacy (standard condition): 70 lm/W « hide more

€ 11,07 € 11,07 ex. VAT

HO 54 W/965

Karta produktu PDF

Electrico24 code: 56188 | Osram code: 4008321233943 Construction wattage [PICOS]: 54.10 W Nominal voltage: 230 V Nominal wattage: 54.10 W Color temperature: 6500 K Nominal luminous flux: 3800 lm Rated luminous flux: 3800 lm Light color as per EN 12464-1: LUMILUX DE LUXE Cool Daylight Length: 1149.0 mm Energy efficiency class: A Energy consumption: 60 kWh/1000h see more »

Light color: 965 Luminous flux at 25 °C: 3800 lm Length with base excl. base pins/connection: 1149.00 mm Rated lamp efficacy (HF data 25 °C): 70 lm/W Luminous flux at 35 °C: 4250 lm « hide more

€ 11,07 € 11,07 ex. VAT

Description / FAQ Warranty

Photometrical data
Color rendering index Ra	≥90
Rated LLMF at 4,000 h	0.92
Rated LLMF at 6,000 h	0.91
Rated LLMF at 8,000 h	0.90
Rated LLMF at 12,000 h	0.90
Rated LLMF at 16,000 h	0.90
Rated LLMF at 20,000 h	0.89
Rated LLMF at 2,000 h	0.95

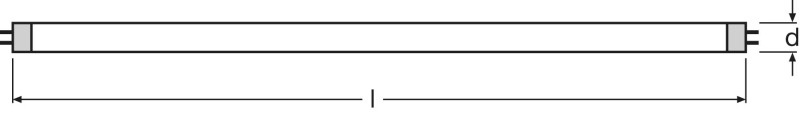

Dimensions & weight
Diameter	16.0 mm
Maximum diameter	16.0 mm
Tube diameter	16 mm
Lifespan
Nominal lamp life time	24000 h
Rated lamp life time	24000 h
Lifespan	24000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Service life	19000 h
Operation mode LLMF/LSF	HF
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.99
Rated lamp survival factor at 16,000 h	0.97
Rated lamp survival factor at 20,000 h	0.85
Additional product data

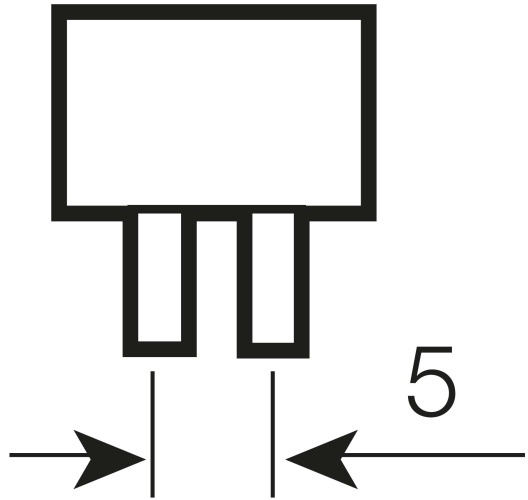

Base (standard designation)	G5
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	1.5 mg
Product remark	Suitable for ECG operation only/Lamp designed for internal luminaire temperatures of 3040 °C; optimum luminous flux achieved at 35 °C
Capabilities
Suitable for indoor	Yes
Temperatures
Rated ambient temp.w.max.luminous flux	35.0 °C

Product benefits

Excellent color rendering
Natural colors
Perfect color matching

Areas of application

Industry
Shops
Supermarkets and department stores

Product features

Very good color rendering group: 1A (Ra: ≥ 90)
Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
Long average lifetime: up to 24,000 h (with QUICKTRONIC ECG)
Dimmable

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp

System guarantee
OSRAM System+ Guarantee in combination with OSRAM ECGs
