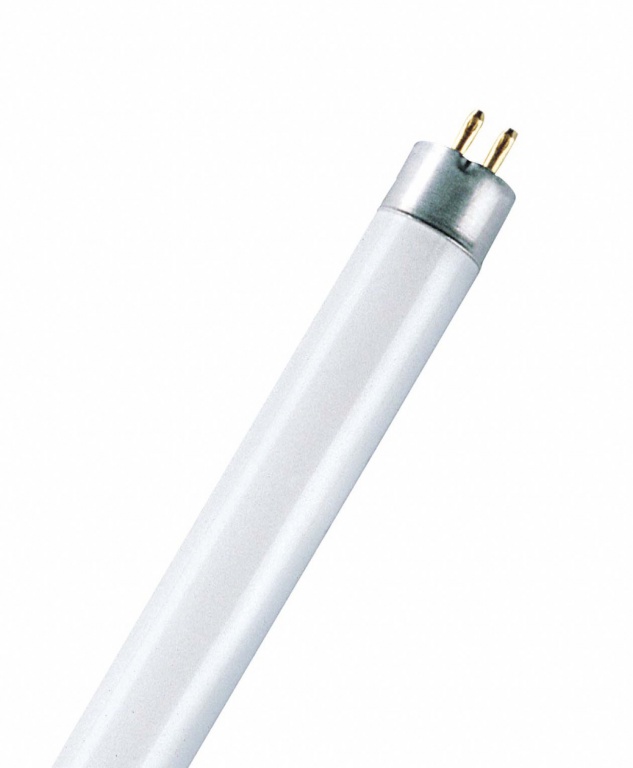

Fluorescent Lamp LUMILUX T5 HO ES Fluorescent Lamps T5/G5

Electrico24 code: 56193 | Osram code: 4008321958228

Price € 14,03 incl. VAT
€ 14,03 netto

Construction wattage [PICOS] 73.00 W
Nominal wattage 73.00 W
Color temperature 4000 K
Nominal luminous flux 6150 lm
Rated luminous flux 6150 lm
Light color as per EN 12464-1 LUMILUX Cool White
Length 1449.0 mm
Energy efficiency class A+
Energy consumption 81 kWh/1000h
Light color 840
Luminous flux at 25 °C 6150 lm
Length with base excl. base pins/connection 1449.00 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

5.0 / 5 (1 score)

1 variant available

HO ES 73 W/840

Karta produktu PDF

Electrico24 code: 56193 | Osram code: 4008321958228 Construction wattage [PICOS]: 73.00 W Nominal wattage: 73.00 W Color temperature: 4000 K Nominal luminous flux: 6150 lm Rated luminous flux: 6150 lm Light color as per EN 12464-1: LUMILUX Cool White Length: 1449.0 mm Energy efficiency class: A+ Energy consumption: 81 kWh/1000h Light color: 840 see more »

Luminous flux at 25 °C: 6150 lm Length with base excl. base pins/connection: 1449.00 mm Rated lamp efficacy (HF data 25 °C): 84 lm/W Luminous flux at 35 °C: 7000 lm « hide more

€ 14,03 € 14,03 ex. VAT

Description / FAQ Warranty

Construction wattage [PICOS]	73.00 W
Nominal wattage	73.00 W
Color temperature	4000 K
Nominal luminous flux	6150 lm
Rated luminous flux	6150 lm
Light color as per EN 12464-1	LUMILUX Cool White
Length	1449.0 mm
Energy efficiency class	A+
Energy consumption	81 kWh/1000h
Light color	840
Luminous flux at 25 °C	6150 lm
Length with base excl. base pins/connection	1449.00 mm
Rated lamp efficacy (HF data 25 °C)	84 lm/W
Luminous flux at 35 °C	7000 lm
Photometrical data
Color rendering index Ra	≥80
Rated LLMF at 4,000 h	0.92
Rated LLMF at 6,000 h	0.91
Rated LLMF at 8,000 h	0.90
Rated LLMF at 12,000 h	0.90
Rated LLMF at 16,000 h	0.90
Rated LLMF at 20,000 h	0.89
Rated LLMF at 2,000 h	0.95

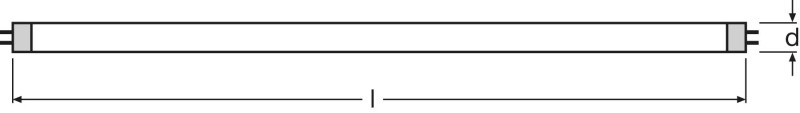

Dimensions & weight
Diameter	16.0 mm
Maximum diameter	16.0 mm
Tube diameter	16 mm
Lifespan
Nominal lamp life time	24000 h
Rated lamp life time	24000 h
Lifespan	24000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Service life	19000 h
Operation mode LLMF/LSF	HF
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.99
Rated lamp survival factor at 16,000 h	0.97
Rated lamp survival factor at 20,000 h	0.85
Additional product data

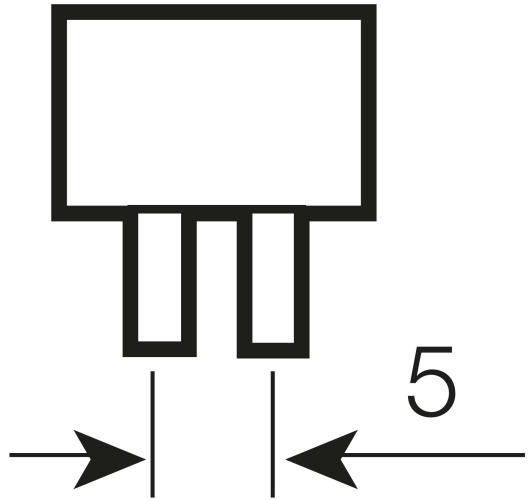

Base (standard designation)	G5
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	1.5 mg
Product remark	For ECG operation only/Lamp designed for internal luminaire temperatures of 3040 °C; optimum luminous flux achieved at 35 °C
Capabilities
Dimmable	Yes
Suitable for indoor	Yes
Temperatures
Rated ambient temp.w.max.luminous flux	35.0 °C

Product benefits

Up to 10 % energy savings compared to standard T5 HO LUMILUX lamps
Good economy and efficiency
Pay-back time less than 1 year
High luminous flux

Areas of application

Industry
Public buildings
Offices
Tunnels, underpasses

Product features

Luminous efficacy: up to 96 lm/W
Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
Long average lifetime: up to 24,000 h (with QUICKTRONIC ECG)
Good color rendering group: 1B (Ra: 80…89)
Dimmable

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp

System guarantee
OSRAM System+ Guarantee in combination with OSRAM ECGs
