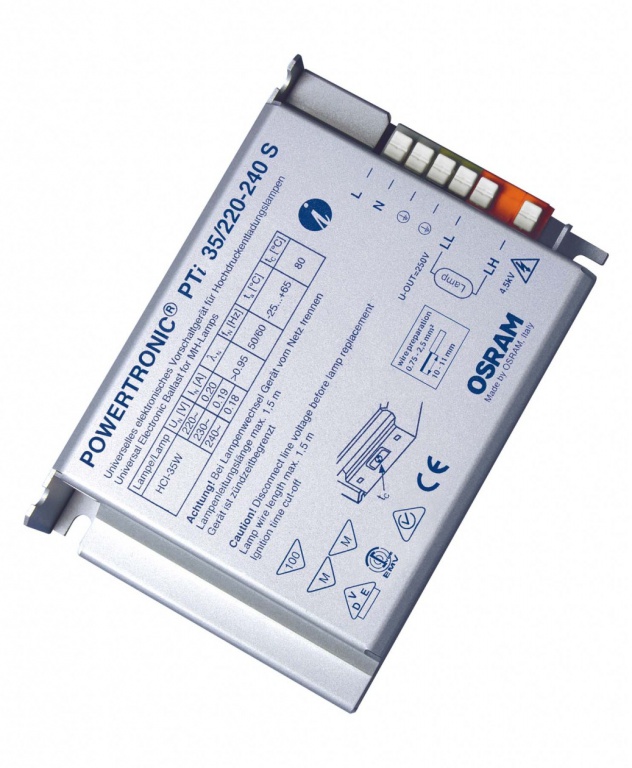

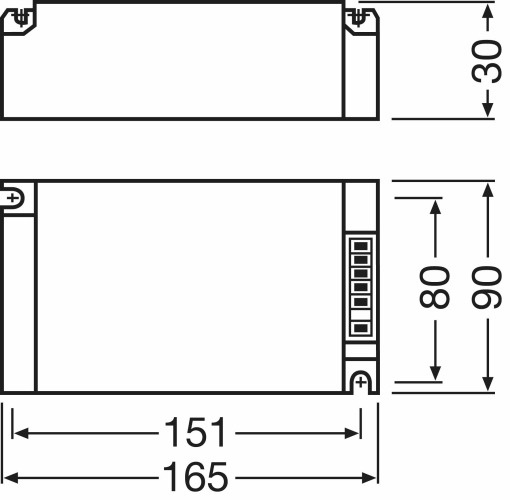

POWERTRONIC INTELLIGENT PTi S ECG for HID lamps, for installation in luminaires Electronic Ballasts For Discharge Lamps

From € 68,25 incl. VAT
From € 68,25 ex. VAT

See variants (4)

Power factor λ 0.95
Input voltage AC 220240 V
Mains frequency 5060 Hz
U-OUT (working voltage) 250 V
Max. working voltage between LH and LL 250 V
Max. working voltage betw. LL/LH & earth 250 V
Design / version Built-in unit
Dimmable No
ECG reset time > 0.5 s
Restriction on ignition time 20 min
Approval marks approval ENEC 10 / VDE / VDE-EMC / GOST / C-Tick
Type of protection IP20
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

PTi 35/220...240 S MINI

Karta produktu PDF

Electrico24 code: 56577 | Osram code: 4008321955906 Operating frequency: 0.1000.120 kHz Length: 97.0 mm ECG efficiency: 90 % Inrush current: 20 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 43.0 mm Height: 30.0 mm Mounting hole spacing, length: 88.0 mm Mounting hole spacing, width: 34.0 mm see more »

Cable cross-section, input side: 0.51.5 mm² Product weight: 105.00 g Cable cross-section, output side: 0.51.5 mm² Casing material: Plastic Wire preparation length, input side: 8.59.5 mm Ambient temperature range: -25+50 °C Maximum temperature at tc test point: 80 °C ECG lifetime: 50000 h Suitable for fixtures with prot. class: I / II Overheating protection: Power reduction and switch off at T > 80 °C at the tc point Max. cable length to lamp/LED module: 0.5 m Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547 Input voltage range AC: 198264 V Ignition voltage: 3.0 kVp Wire preparation length, output side: 8.59.5 mm Lamp wattage: 39 W Line current: 0.19 A System wattage: 39.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 70 Protective conductor current: 0.1 mA Max. capacitance of wire ECG/lamp: 40 pF « hide more

€ 68,25 € 68,25 ex. VAT

PTi 35/220...240 S

Karta produktu PDF

Electrico24 code: 56576 | Osram code: 4008321073112 Operating frequency: 0.2000.240 kHz Length: 110.0 mm ECG efficiency: 91 % Inrush current: 30 A Max. no. of ECGs on circuit breaker 10 A: 15 Max. no. of ECGs on circuit breaker 16 A: 26 Width: 75.0 mm Height: 30.0 mm Mounting hole spacing, length: 99.0 mm Mounting hole spacing, width: 64.0 mm see more »

Cable cross-section, input side: 0.52.5 mm² Product weight: 250.00 g Cable cross-section, output side: 0.52.5 mm² Casing material: Metal Wire preparation length, input side: 1011 mm Ambient temperature range: -25+65 °C Maximum temperature at tc test point: 85 °C ECG lifetime: 50000 h Suitable for fixtures with prot. class: I Overheating protection: Power reduction and switch off at T > 85 °C at the tc point Max. cable length to lamp/LED module: 1.5 m Standards: acc. to EN 61347-2-12/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547 Input voltage range AC: 198264 V Ignition voltage: 4.5 kVp Wire preparation length, output side: 1011 mm Lamp wattage: 39 W Line current: 0.19 A System wattage: 43.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 65 Protective conductor current: 0.25 mA Max. capacitance of wire ECG/lamp: 120 pF Overvoltage protection at 275300 V: 48 h Overvoltage protection at 300320 V: 2 h Overvoltage protection at 320350 V: 5 min « hide more

€ 84,95 € 84,95 ex. VAT

PTi 70/220...240 S

Karta produktu PDF

Electrico24 code: 56584 | Osram code: 4008321049629 Operating frequency: 0.2000.240 kHz Length: 110.0 mm ECG efficiency: 92 % Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: 7 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 75.0 mm Height: 30.0 mm Mounting hole spacing, length: 99.0 mm Mounting hole spacing, width: 64.0 mm see more »

Cable cross-section, input side: 0.52.5 mm² Product weight: 255.00 g Cable cross-section, output side: 0.52.5 mm² Casing material: Metal Wire preparation length, input side: 1011 mm Ambient temperature range: -25+55 °C Maximum temperature at tc test point: 85 °C ECG lifetime: 50000 h Suitable for fixtures with prot. class: I Overheating protection: Power reduction and switch off at T > 85 °C at the tc point Max. cable length to lamp/LED module: 1.5 m Standards: acc. to EN 61347-2-12/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547 Input voltage range AC: 198264 V Ignition voltage: 4.5 kVp Wire preparation length, output side: 1011 mm Lamp wattage: 73 W Line current: 0.36 A System wattage: 79.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 32 Protective conductor current: 0.25 mA Max. capacitance of wire ECG/lamp: 120 pF Overvoltage protection at 275300 V: 48 h Overvoltage protection at 300320 V: 2 h Overvoltage protection at 320350 V: 5 min « hide more

€ 84,95 € 84,95 ex. VAT

PTi 150/220...240 S

Karta produktu PDF

Electrico24 code: 56567 | Osram code: 4008321188090 Operating frequency: 0.165 kHz Length: 150.0 mm ECG efficiency: 92 % Inrush current: 70 A Max. no. of ECGs on circuit breaker 10 A: 4 Max. no. of ECGs on circuit breaker 16 A: 7 Width: 85.0 mm Height: 31.0 mm Mounting hole spacing, length: 139.0 mm Mounting hole spacing, width: 74.0 mm see more »

Cable cross-section, input side: 0.52.5 mm² Product weight: 370.00 g Cable cross-section, output side: 0.52.5 mm² Casing material: Metal Wire preparation length, input side: 1011 mm Ambient temperature range: -25+55 °C Maximum temperature at tc test point: 85 °C ECG lifetime: 40000 h Suitable for fixtures with prot. class: I Overheating protection: Power reduction and switch off at T > 85 °C at the tc point Max. cable length to lamp/LED module: 1.5 m Standards: acc. to EN 61347-2-12/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547 Input voltage range AC: 198254 V Ignition voltage: 4.5 kVp Wire preparation length, output side: 1011 mm Lamp wattage: 147 W Line current: 0.72 A System wattage: 160.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 17 Protective conductor current: 0.4 mA Max. capacitance of wire ECG/lamp: 120 pF « hide more

€ 109,00 € 109,00 ex. VAT

Description / FAQ Warranty

Electrical data
Power factor λ	0.95
Input voltage AC	220240 V
Mains frequency	5060 Hz
U-OUT (working voltage)	250 V
Max. working voltage between LH and LL	250 V
Max. working voltage betw. LL/LH & earth	250 V
Additional product data
Design / version	Built-in unit
Capabilities
Dimmable	No
ECG reset time	> 0.5 s
Restriction on ignition time	20 min
Certificates & standards
Approval marks approval	ENEC 10 / VDE / VDE-EMC / GOST / C-Tick
Type of protection	IP20
EEI Energy Label	A2

Product benefits

Long reliable life at maximum permitted temperatures
Compact dimensions and low weight for small luminaire designs
Excellent thermal behavior for very high limit temperatures tc and ta
Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)

Areas of application

Shop lighting
Health and fitness areas (in dry, corrosion-protected place)
Effect and accent lighting

Product features

Energy Efficiency Index EEI: A2
Supply voltage: 220…240 V
Line frequency: 50…60 Hz
RI suppression: to EN 55015/CISPR 15
Safety: to EN 61347-2-12
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547

Thermal characteristics
Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.

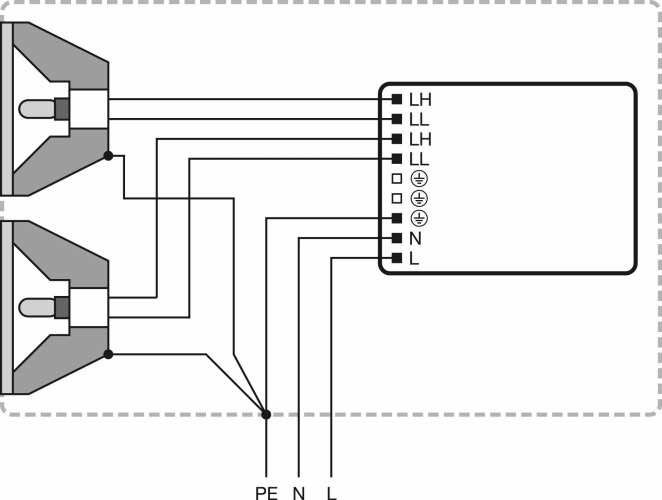

Attention!
For safety reasons disconnect the device before replacing the lamp!
Any conductive material must have a minimum distance of 4 mm to the front of the terminal block.
Installation by qualified electrician only.
Terminals for protective earth not suitable for any through connection.
