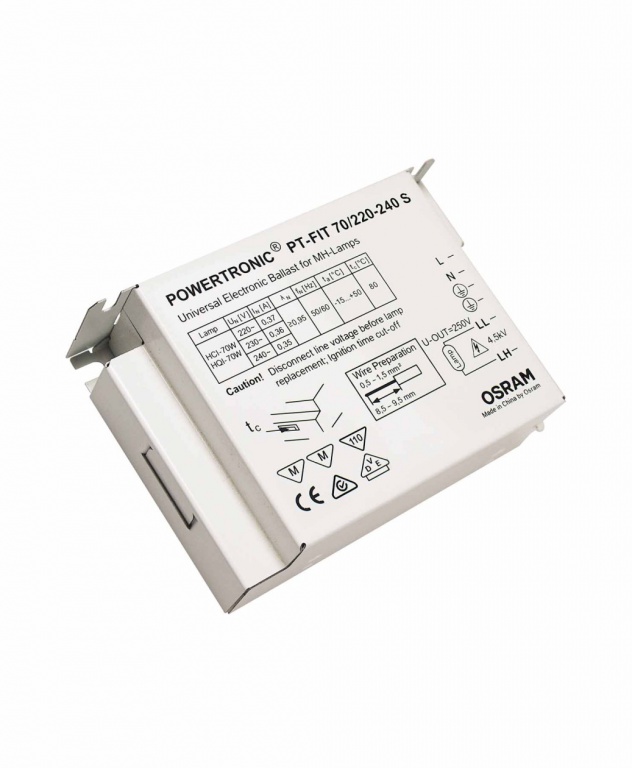

POWERTRONIC PT-FIT S ECG for HID lamps, for installation in luminaires Electronic Ballasts For Discharge Lamps

Price € 65,26 € 65,26 ex. VAT

See variants (2)

Operating frequency 0.2000.240 kHz
Power factor λ 0.95
Input voltage AC 220240 V
Mains frequency 5060 Hz
ECG efficiency 92 %
Inrush current 45 A
Max. no. of ECGs on circuit breaker 10 A 7
Max. no. of ECGs on circuit breaker 16 A 13
U-OUT (working voltage) 250 V
Input voltage range AC 198264 V
Ignition voltage 4.5 kVp
Max. no. of ECGs on 16A MCB with EBN-OS 32
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

PT-FIT 35/220...240 S

Karta produktu PDF

Electrico24 code: 57010 | Osram code: 4008321386625 Operating frequency: 0.2000.240 kHz Power factor λ: 0.95 Length: 110.0 mm Dimmable: No Input voltage AC: 220240 V Mains frequency: 5060 Hz ECG efficiency: 92 % Inrush current: 30 A Max. no. of ECGs on circuit breaker 10 A: 15 Max. no. of ECGs on circuit breaker 16 A: 26 see more »

Width: 75.0 mm Height: 30.0 mm Mounting hole spacing, length: 99.0 mm Mounting hole spacing, width: 64.0 mm Cable cross-section, input side: 0.51.0 / 0.51.5 mm² Product weight: 245.00 g Cable cross-section, output side: 0.51.0 / 0.51.5 mm² Casing material: Metal Wire preparation length, input side: 8.59.5 mm Ambient temperature range: -15+65 °C Maximum temperature at tc test point: 85 °C ECG lifetime: 30000 h Suitable for fixtures with prot. class: I Overheating protection: Power reduction and switch off at T > 85 °C at the tc point Max. cable length to lamp/LED module: 1.5 m Approval marks approval: VDE / VDE-EMC / GOST / C-Tick Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547 Type of protection: IP20 U-OUT (working voltage): 250 V Design / version: Built-in unit EEI Energy Label: A2 Input voltage range AC: 198264 V Ignition voltage: 4.5 kVp Wire preparation length, output side: 8.59.5 mm Lamp wattage: 39 W Line current: 0.19 A System wattage: 42.50 W Max. no. of ECGs on 16A MCB with EBN-OS: 65 Max. working voltage between LH and LL: 250 V Protective conductor current: 0.3 mA Max. capacitance of wire ECG/lamp: 120 pF Max. working voltage betw. LL/LH & earth: 250 V ECG reset time: > 0.5 s Restriction on ignition time: 20 min « hide more

€ 65,26 € 65,26 ex. VAT

PT-FIT 70/220...240 S

Karta produktu PDF

Electrico24 code: 56563 | Osram code: 4008321386649 Product weight: 250.00 g Ambient temperature range: -15+55 °C Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547 Lamp wattage: 73 W Line current: 0.36 A System wattage: 79.00 W

€ 65,26 € 65,26 ex. VAT

Description / FAQ Warranty

Electrical data
Operating frequency	0.2000.240 kHz
Power factor λ	0.95
Input voltage AC	220240 V
Mains frequency	5060 Hz
ECG efficiency	92 %
Inrush current	45 A
Max. no. of ECGs on circuit breaker 10 A	7
Max. no. of ECGs on circuit breaker 16 A	13
U-OUT (working voltage)	250 V
Input voltage range AC	198264 V
Ignition voltage	4.5 kVp
Max. no. of ECGs on 16A MCB with EBN-OS	32

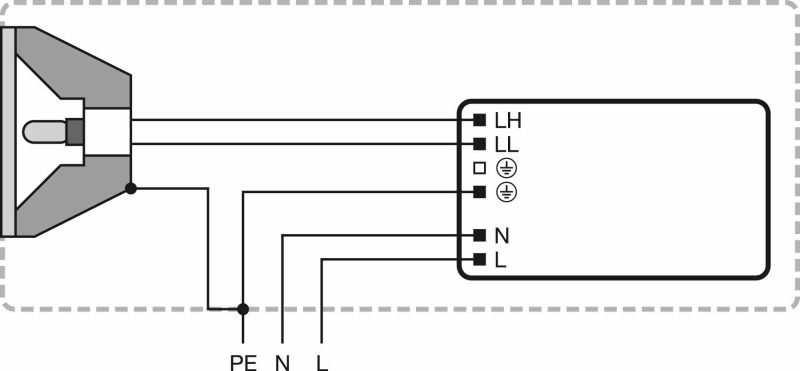

Max. working voltage between LH and LL	250 V
Protective conductor current	0.3 mA
Max. capacitance of wire ECG/lamp	120 pF
Max. working voltage betw. LL/LH & earth	250 V
Dimensions & weight

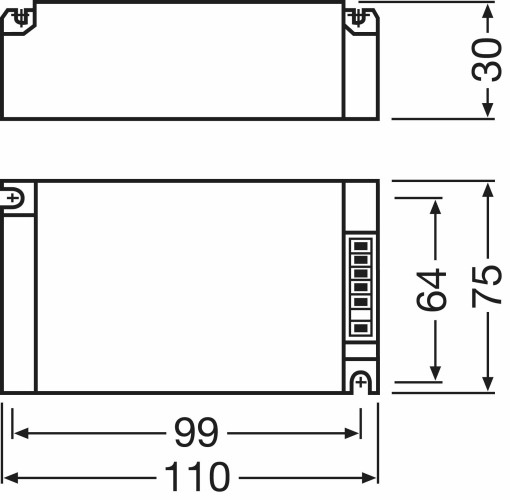

Length	110.0 mm
Width	75.0 mm
Height	30.0 mm
Mounting hole spacing, length	99.0 mm
Mounting hole spacing, width	64.0 mm
Cable cross-section, input side	0.51.0 / 0.51.5 mm²
Cable cross-section, output side	0.51.0 / 0.51.5 mm²
Wire preparation length, input side	8.59.5 mm
Wire preparation length, output side	8.59.5 mm
Lifespan
ECG lifetime	30000 h
Additional product data
Design / version	Built-in unit
Capabilities
Dimmable	No
Suitable for fixtures with prot. class	I
Overheating protection	Power reduction and switch off at T > 85 °C at the tc point
Max. cable length to lamp/LED module	1.5 m
ECG reset time	> 0.5 s
Restriction on ignition time	20 min
Certificates & standards
Approval marks approval	VDE / VDE-EMC / GOST / C-Tick
Type of protection	IP20
EEI Energy Label	A2
Colors & materials
Casing material	Metal
Temperatures
Maximum temperature at tc test point	85 °C

Product benefits

Optimized cost/benefit factor
Compact dimensions and low weight for small luminaire designs
Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)

Areas of application

Shop lighting
Health and fitness areas (in dry, corrosion-protected place)
Effect and accent lighting

Product features

Energy Efficiency Index EEI: A2
Supply voltage: 220…240 V
Line frequency: 50…60 Hz
RI suppression: to EN 55015/CISPR 15
Safety: to EN 61347-2-12
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547

Thermal characteristics
Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.
Attention!
For safety reasons disconnect the device before replacing the lamp!
