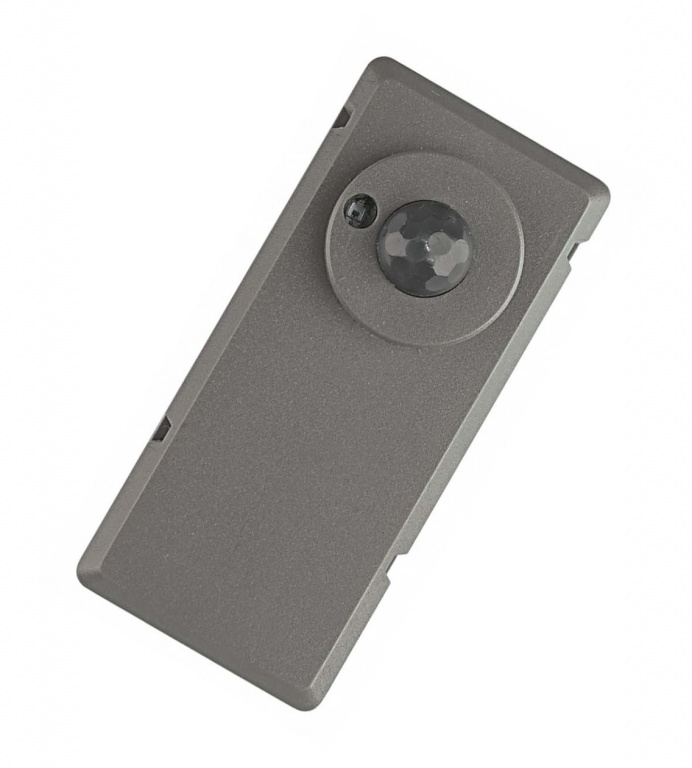

Touch DIM LS/PD LI Movement Detectors

Electrico24 code: 57058 | Osram code: 4008321023025
Price € 71,13 incl. VAT
€ 71,13 netto
pc(s)
pc(s)
  • System wattage 0.50 W
  • Length 63.0 mm
  • Width 29.0 mm
  • Height 21.0 mm
  • Product weight 24.00 g
  • Dimming interface Touch DIM
  • Type of installation Luminaire integration
  • Number of control outputs 1
  • Detection angle 80 °
  • Maximum installation height 4 m
  • Operating range, light sensor 10…350 lx
  • Type of protection IP20
  • ▼ see full specification ▼
Ask for product Description / FAQ / Warranty

Score

* * * * *

rate product

1 variant available

Touch DIM LS/PD LI
Touch DIM LS/PD LI
Karta produktu PDF
Electrico24 code: 57058 | Osram code: 4008321023025
€ 71,13 € 71,13 ex. VAT
pc(s)
pc(s)

Electrical data
System wattage 0.50 W

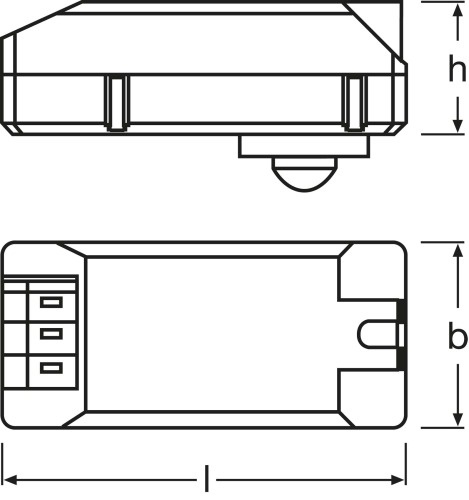

Dimensions & weight
Length 63.0 mm
Width 29.0 mm
Height 21.0 mm
Product weight 24.00 g

Capabilities
Dimming interface Touch DIM
Type of installation Luminaire integration
Number of control outputs 1
Detection angle 80 °
Maximum installation height 4 m
Operating range, light sensor 10…350 lx

Certificates & standards
Type of protection IP20

Colors & materials
Product color Anthracite

Temperatures
Ambient temperature range 0…+50 °C

Product benefits
  • A setpoint for daylight-dependent control can be stored by double clicking
  • Operated via standard switches
Areas of application
  • Single luminaires in office areas
Product features
  • Touch DIM light and presence sensor
  • Can also be operated purely as a presence sensor
  • Maximum signal line length: 10 m
  • Maximum power input: 0.5 W
  • Delay time: 15 min
Equipment / Accessories
  • Suitable for up to 4 QTi DALI ECG or 4 HTi DALI transformers or 4 OTi DALI LED  ECG
