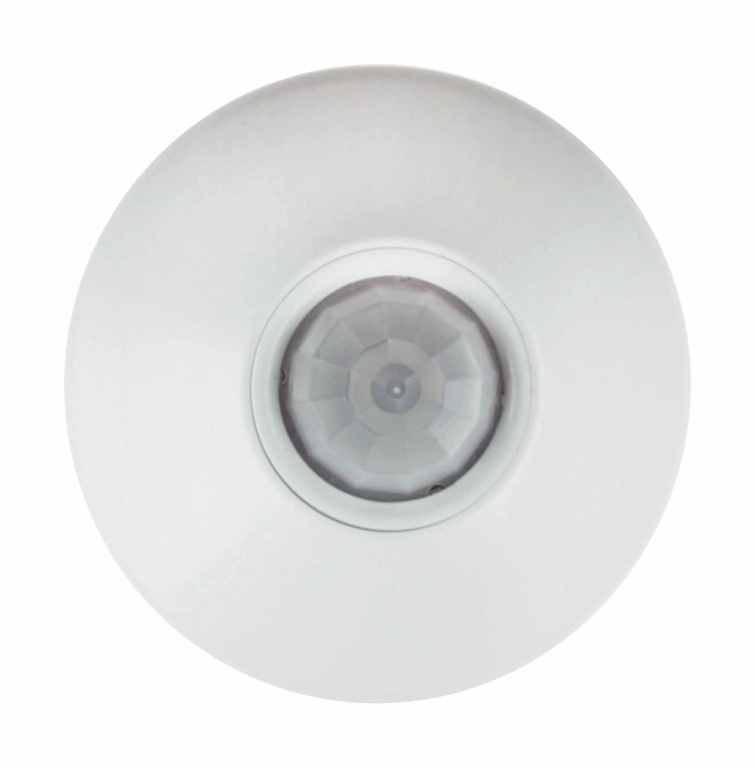

VISION Movement Detectors

Electrico24 code: 57063 | Osram code: 4008321957047
Price € 141,11 incl. VAT
€ 141,11 netto
pc(s)
pc(s)
  • Nominal voltage 120…277 V
  • Mains frequency 50…60 Hz
  • System wattage 0.60 W
  • Diameter 115.6 mm
  • Length 115.6 mm
  • Width 115.6 mm
  • Height 39.9 mm
  • Product weight 135.00 g
  • Type of installation On-top ceiling mounting
  • Detection angle 140 °
  • Detection area 21 m²
  • Maximum installation height 4.5 m
  • ▼ see full specification ▼
Ask for product Description / FAQ / Warranty

Score

* * * * *

rate product

1 variant available

VISION
VISION
Karta produktu PDF
Electrico24 code: 57063 | Osram code: 4008321957047
€ 141,11 € 141,11 ex. VAT
pc(s)
pc(s)

Electrical data
Nominal voltage 120…277 V
Mains frequency 50…60 Hz
System wattage 0.60 W

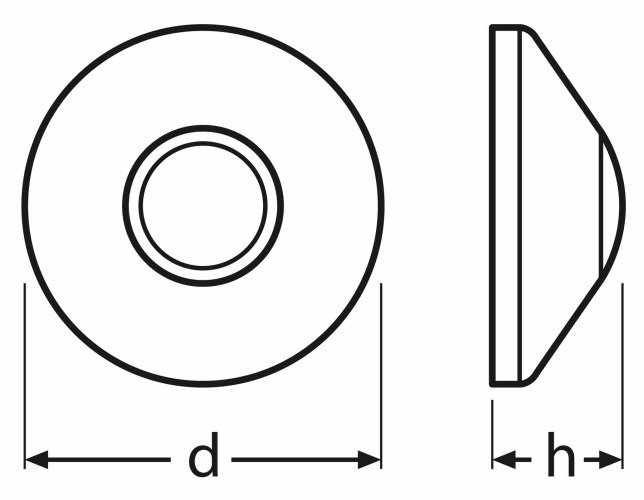

Dimensions & weight
Diameter 115.6 mm
Length 115.6 mm
Width 115.6 mm
Height 39.9 mm
Product weight 135.00 g

Capabilities
Type of installation On-top ceiling mounting
Detection angle 140 °
Detection area 21 m²
Maximum installation height 4.5 m
Load contact 5 A

Certificates & standards
Type of protection IP20

Colors & materials
Product color White

Temperatures
Ambient temperature range -10…+70 °C

Product benefits
  • Energy savings up to 35 % (compared to manual switching)
Areas of application
  • Large areas
  • Open-plan offices, corridors and storage rooms
Product features
  • Motion sensor with switching contact
  • Adjustable switch-off delay: 30 s to 20 min
  • Maximum power consumption in stand-by mode: 0.25 W
Equipment / Accessories
  • Suitable for up to 15 electronic control gears
  • Installation by means of Mounting Adapter possible
