BVP120 - LED module 12,000 lm - Symmetrical
Score
rate product
| Dimmable | No [No] |
| Full product code | 911401649002 |
| Full product name | BVP120 LED120/NW S |
| Order code | 911401649002 |
| Order product name | BVP120 LED120/NW S |
| Pieces per pack | 1 |
| Bar code on outerbox - EAN3 | 8710163295879 |
| Bar code on pack - EAN1 | 8710163295879 |
| Packs per outerbox | 1 |
| Logistic code(s) - 12NC | 911401649002 |
| Net weight per piece | 6.600 kg |
| Power factor | 0.95 - |
| Product family code | BVP120 [BVP120] |
| Number of light sources | 162 [162 pcs] |
| Lamp family code | LED120 [LED module 12,000 lm] |
| Light source color | NW [Neutral white] |
| Optic type | S [Symmetrical] |
| Optical cover/lens type | FG [Glass flat] |
| Ingress protection code | IP65 [Dust penetration-protected, jet-proof] |
| Input voltage | 220-240 V [220 to 240 V] |
| Protection class IEC | I [Safety class I] |
| Mech. impact protection code | IK08 [5 J vandal-protected] |
| CE mark | CE [CE mark] |
| Light source replaceable | false [No] |
| Driver included | true [Yes] |
| Standard RAL color | 9007 [Gray aluminum] |
| Housing material | ALU [Aluminum] |
| Input frequency | 50-60 Hz [50 to 60 Hz] |
| Initial input power | 120 W [120 W] |
| Initial luminous flux | 12000 Lm |
| Init. Corr. Color Temperature | 4000 [4000 K] |
| Driver failure rate at 5000 h | 0.1 % |
| Ambient temperature range | -20 to +35°C [-20 to +35 °C] |
| Average ambient temperature | T25 [+25 °C] |
| Number of gear units | 1 [1 unit] |
| Constant light output | No [No] |
| Driver current | 700 mA [700 mA] |
| Standard tilt angle posttop | 0 [0°] |
| Optic material | PC [Polycarbonate] |
| Optical cover/lens material | G [Glass] |
| Median useful life L80B10 | 50000 hr |

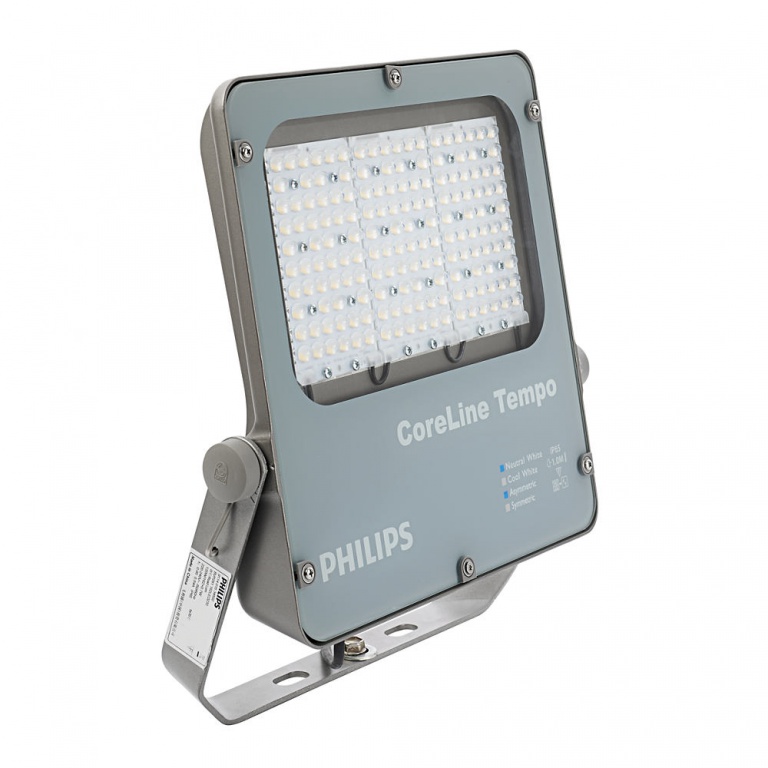

CoreLine Tempo is the first outdoor solution in the CoreLine range. Designed to replace conventional installations, it offers lower power consumption and requires less investment. A limited range of options makes it easy to find the best lux-for-lux replacement.
Features
| Energy-efficient – system delivers over 100 lm/W |
| Asymmetrical and symmetrical optics |
| Philips-branded |
Applications
| Industrial areas |
| Parking lots |
| Building façades |
| Billboards |
