TCW216 2xTL-D36W HFS PI Fluorescent Hermetic Luminaires

Electrico24 code: 58732 | Philips code: 8711559103471

Price € 52,72 incl. VAT
€ 52,72 netto

Dimmable No [No]
Full product code 910402607118
Full product name TCW216 2xTL-D36W HFS PI
Order code 910402607118
Order product name TCW216 2xTL-D36W HFS PI
Pieces per pack 0
Bar code on outerbox - EAN3 8711559103471
Packs per outerbox 1
Logistic code(s) - 12NC 910402607118
Net weight per piece 2.203 kg
Product family code TCW216 [TCW216]
Number of light sources 2 [2 pcs]
▼ see full specification ▼

TCW216 - 2 pcs - MASTER TL-D - 36 W - HF Performer

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

TCW060 2xTL-D36W HF

Karta produktu PDF

Electrico24 code: 74725 | Philips code: 8711559813806 Dimmable: No [No] Lamp family code: TL-D [MASTER TL-D] Lamp power: 36 W [36 W] Gear: HFP [HF Performer] Ingress protection code: IP66 [Dust penetration-protected, jet-proof] Input voltage: 220-240 V [220 to 240 V]

€ 29,99 € 29,99 ex. VAT

TCW216 2xTL-D36W HFS PI (currently dislayed)

Karta produktu PDF

Electrico24 code: 58732 | Philips code: 8711559103471 Dimmable: No [No] Full product code: 910402607118 Full product name: TCW216 2xTL-D36W HFS PI Order code: 910402607118 Order product name: TCW216 2xTL-D36W HFS PI Pieces per pack: 0 Bar code on outerbox - EAN3: 8711559103471 Packs per outerbox: 1 Logistic code(s) - 12NC: 910402607118 Net weight per piece: 2.203 kg see more »

Product family code: TCW216 [TCW216] Number of light sources: 2 [2 pcs] Lamp family code: TL-D [MASTER TL-D] Lamp power: 36 W [36 W] Compensation circuit: No Gear: HFP [HF Performer] Optic type: No Emergency lighting: No Feed-through wiring: No Ingress protection code: IP66 [Dust penetration-protected, jet-proof] Input voltage: 220-240 V [220 to 240 V] Protection class IEC: CLI [Safety class I] Mech. impact protection code: IK08 [5 J vandal-protected] CE mark: CE [CE mark] ENEC mark: ENEC [ENEC mark] Flammability mark: F [For mounting on normally flammable surfaces] Glow-wire test: 850/5 [Temperature 850 °C, duration 5 s] Light source replaceable: true [Yes] Connection: PI [Push-in connector 3-pole] Driver included: true [Yes] Housing material: PES [Polyester] Ready-to-install: No Electrical circuit protection: No Explosion hazard class: No Country version: No Housing configuration 2: H2L [2-lamp housing] Mechanical accessories: No « hide more

€ 52,72 € 52,72 ex. VAT

H-207 TCW216 ST 2x36W 1J

Karta produktu PDF

Electrico24 code: 74726 | Philips code: 822278078419 Dimmable: No [No] Lamp family code: TL-D [MASTER TL-D] Lamp power: 36 W [36 W] Gear: HFP [HF Performer] Ingress protection code: IP66 [Dust penetration-protected, jet-proof] Input voltage: 220-240 V [220 to 240 V]

€ 202,22 € 202,22 ex. VAT

Description / FAQ Warranty

Dimmable	No [No]
Full product code	910402607118
Full product name	TCW216 2xTL-D36W HFS PI
Order code	910402607118
Order product name	TCW216 2xTL-D36W HFS PI
Pieces per pack	0
Bar code on outerbox - EAN3	8711559103471
Packs per outerbox	1
Logistic code(s) - 12NC	910402607118
Net weight per piece	2.203 kg
Product family code	TCW216 [TCW216]
Number of light sources	2 [2 pcs]
Lamp family code	TL-D [MASTER TL-D]
Lamp power	36 W [36 W]
Compensation circuit	No
Gear	HFP [HF Performer]
Optic type	No
Emergency lighting	No
Feed-through wiring	No
Ingress protection code	IP66 [Dust penetration-protected, jet-proof]
Input voltage	220-240 V [220 to 240 V]
Protection class IEC	CLI [Safety class I]
Mech. impact protection code	IK08 [5 J vandal-protected]
CE mark	CE [CE mark]
ENEC mark	ENEC [ENEC mark]
Flammability mark	F [For mounting on normally flammable surfaces]
Glow-wire test	850/5 [Temperature 850 °C, duration 5 s]
Light source replaceable	true [Yes]
Connection	PI [Push-in connector 3-pole]
Driver included	true [Yes]
Housing material	PES [Polyester]
Ready-to-install	No
Electrical circuit protection	No
Explosion hazard class	No
Country version	No
Housing configuration 2	H2L [2-lamp housing]
Mechanical accessories	No

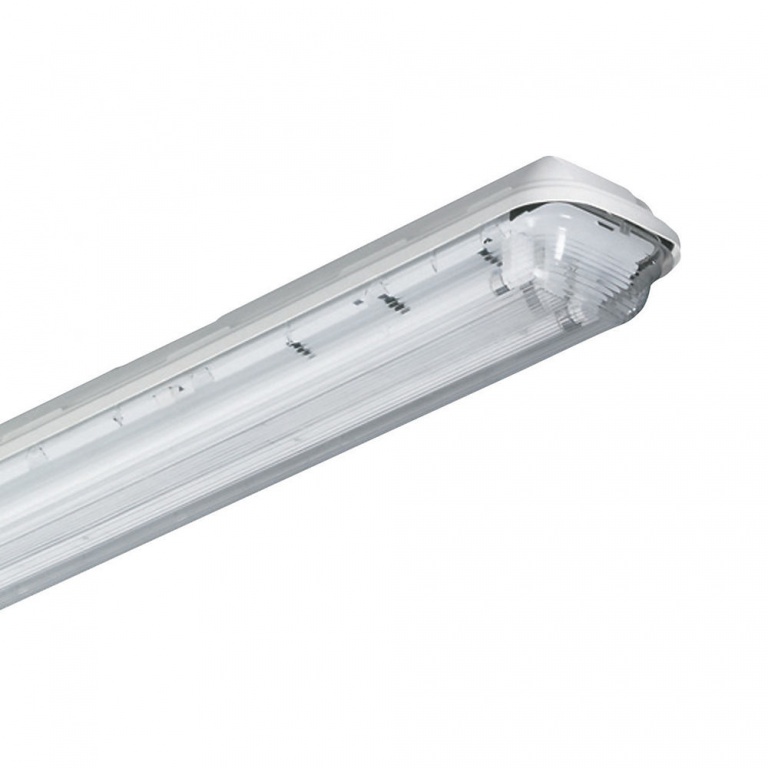

Pacific TCW216 is a functional dust-, jet-, shock- and vandalproof luminaire, and can accommodate both TL-D and TL5 (16 mm) fluorescent lamps. The cover is fixed to the housing by means of an innovative concept using integrated fixing points to avoid external lockers. There is a choice of different standard versions available. The luminaire can be mounted individually or in-line with easy 'click' installation. Flexibility is ensured with a choice of fixing points and different cable entries. The TCW216 can also be suspended from Philips TTX410 light-line systems.

Features

Dust-, jet-, shock- and vandal-proof

TL-D or TL5 (16 mm) fluorescent lamps

Mounting individually or in lines

Also available in versions for cold stores (-20°C)

Applications

Industry

Indoor workplaces

Parking garages

Cold stores -20ºC (XAP)
