BBG390 - LED High Brightness - Power supply unit regulating external
Score
rate product
| Dimmable | Yes [Yes] |
| Full product code | 910503677518 |
| Full product name | BBG390 LED6-40-/830 PSR-E WH |
| Order code | 910503677518 |
| Order product name | BBG390 LED6-40-/830 PSR-E WH |
| Pieces per pack | 1 |
| Bar code on outerbox - EAN3 | 8717943894031 |
| Bar code on pack - EAN1 | 8717943893911 |
| Packs per outerbox | 10 |
| Logistic code(s) - 12NC | 910503677518 |
| Net weight per piece | 0.400 kg |
| Product family code | BBG390 [BBG390] |
| Number of light sources | 6 [6 pcs] |
| Lamp family code | LED-HB [LED High Brightness] |
| Light source color | 830 [830 warm white] |
| Optic type | WB [Wide beam] |
| Ingress protection code | IP20 [Finger-protected] |
| Input voltage | 220-240 V [220 to 240 V] |
| Protection class IEC | CLII [Safety class II] |
| Mech. impact protection code | IK01 [0.15 J] |
| Color | WH [White] |
| CE mark | CE [CE mark] |
| ENEC mark | No |
| Flammability mark | F [For mounting on normally flammable surfaces] |
| Glow-wire test | 850/5 [Temperature 850 °C, duration 5 s] |
| Light source replaceable | false [No] |
| Connection | PI [Push-in connector 3-pole] |
| Driver included | true [Yes] |
| Driver/power unit/transformer | PSR-E [Power supply unit regulating external] |
| Housing material | ALU [Aluminum] |
| Input frequency | 50-60 Hz [50 to 60 Hz] |
| Initial input power | 13 W [13 W] |
| Initial LED luminaire efficacy | 50 Lm/W |
| Initial luminous flux | 700 Lm |
| Init. Color Rendering Index | > 80 [> 80] |
| Init. Corr. Color Temperature | 3000 [3000 K] |
| Initial chromaticy | (0.44, 0.41) SDCM |
| Driver failure rate at 5000 h | 1.5 % |
| Median useful life L80B50 | 30000 hr |
| Ambient temperature range | +10 to +40°C [+10 to +40 °C] |
| Average ambient temperature | T25 [+25 °C] |
| Maximum dim level | 1%-ELV [1% (depends on dimmer, ELV)] |
| Suitable for random switching | No [No] |
| Median useful life L90B50 | 15000 hr |
| Beam angle of light source | 40 D [40°] |
| Light regulation type | TLE [Trailing edge dimmer] |
| Distributor | 40 D [40°] |

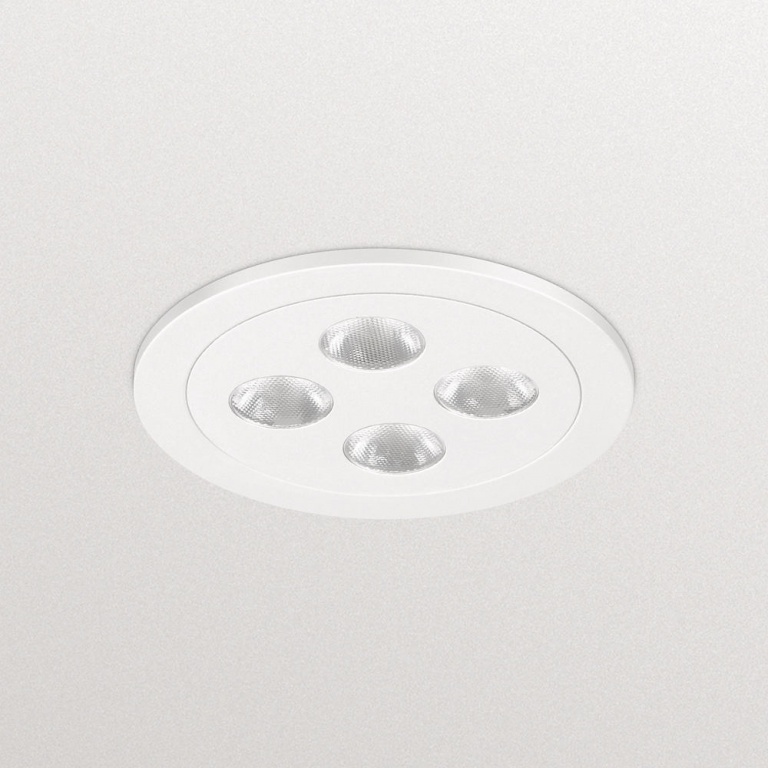

TurnRound Round is a basic range of fixed and adjustable LED downlights designed for accent, ambience and guidance lighting in retail and hospitality applications. It comprises dimmable warm-white and neutral-white versions, with a choice of narrow and medium beam angles.Featuring High-Power LED technology in a compact form factor, TurnRound downlights are comparable with 50 W LV halogen lamps in terms of light output, but offer very substantial energy and maintenance savings.
Features
| Available in fixed and adjustable versions |
| Dimmable |
| Choice of warm (3000 K) and neutral (4000 K) white light |
| 25 and 40° beam angles |
| High-Power LED technology |
Applications
| Shops |
| Hospitality |
