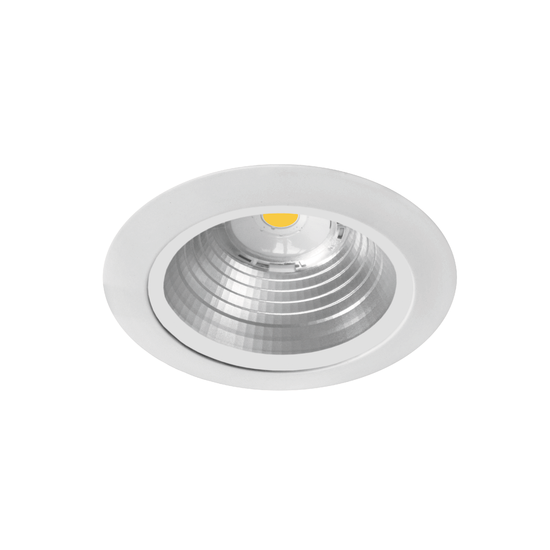

Luminaire Bari MINI LED LED Downlights

From € 47,47 incl. VAT
From € 47,47 ex. VAT

See variants (2)

Type of installation For 600x600 ceiling
Housing material Aluminum
Reflector High gloss
Diffuser color None
Louver/shutter Transparent plastic
Diffuser material Transparent glass
Light source LED
Number of light sources 1
Type of equipment AC
Voltage rating 230 V
Light source included Yes
Type of LED VERO13
▼ see full specification ▼

Ask for product Description / FAQ / Warranty PDF catalogue card Installation manual PDF EC Declaration of conformity

Score

rate product

Select your product from the 2

Bari MINI LED 13W 4000K

Karta produktu PDF

Electrico24 code: 62722 | PXF Plexiform code: PX1486592 Light source power: 1x13W Luminarie luminous efficacy: 81 lm/W Luminarie luminous flux: 1050 lm Color temperature: 4000K Weight: 1.00 kg Beam angle: 30°

€ 47,47 € 47,47 ex. VAT

Bari MINI LED 13W 3000K

Karta produktu PDF

Electrico24 code: 62721 | PXF Plexiform code: PX1486585 Light source power: 1x13W Luminarie luminous efficacy: 77 lm/W Luminarie luminous flux: 1000 lm Color temperature: 3000K Weight: 1.00 kg Beam angle: 30°

€ 48,01 € 48,01 ex. VAT

Description / FAQ Warranty

PXF - Mechanical data
Type of installation	For 600x600 ceiling
Housing material	Aluminum
PXF - Optical data
Reflector	High gloss
Diffuser color	None
Louver/shutter	Transparent plastic
Diffuser material	Transparent glass
PXF - Electrical data
Light source	LED
Number of light sources	1
Type of equipment	AC
Voltage rating	230 V
Light source included	Yes
Type of LED	VERO13
Power factor	0.96
SELV	Yes
Light source power	13W
Luminarie power	13 W
PXF - Infromations
Color	White
Control	Bez
PXF - Light data
Light color	White
Color rendering index	80
Class of luminarie	I
Light distribution	DI
Luminarie luminous efficiency	100 %
PXF - Certificates
Degree of protection (IP)	IP44
Class of protection	I
Energy class	A+
CE	Yes
Light source protection	Yes
For ceiling installation, fire class "F" (L)	Yes

Modern and universal downlight luminarie of high lighting parameters, based on LED module. Applications: offices, restaurants, hotels, corridors, galleries etc.

Materials: powder painted aluminum ring (standard color: white), housing made of steel sheets, transparent tempered glass, reflector made of 99,85% pure aluminum

Installation: for cardboard ceiling

Power: 230 V

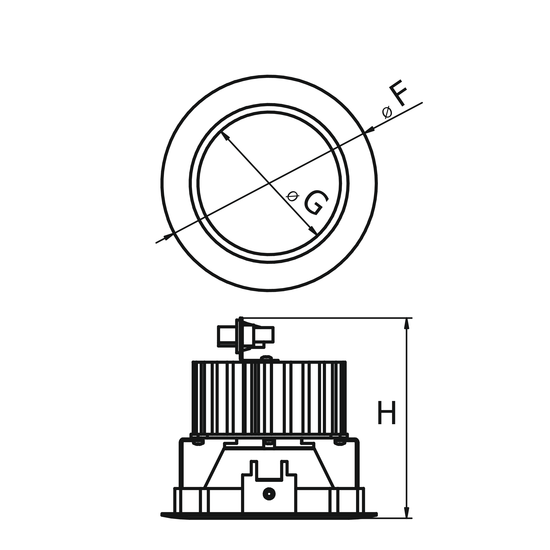

H	F	G
110	120	110

H - Height / Depth
F - Outer diameter
G - Inner diameter

Used marks:

SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum

OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass

DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution

NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling

EVG - electronic ballast
VVG - magnetic ballast

NM - non maintained
M - maintained
