PXF - Mechanical data |
|
| Housing material | Steel sheet |
PXF - Optical data |
|
| Reflector | High gloss |
| Louver/shutter | PAR |
| Louver material | Aluminum |
PXF - Electrical data |
|
| Light source | LED |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | LG6030 |
| Power factor | 0.98 |
| SELV | Yes |
PXF - Infromations |
|
| Color | White |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP40 |
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |
| For ceiling installation, fire class "F" (L) | Yes |

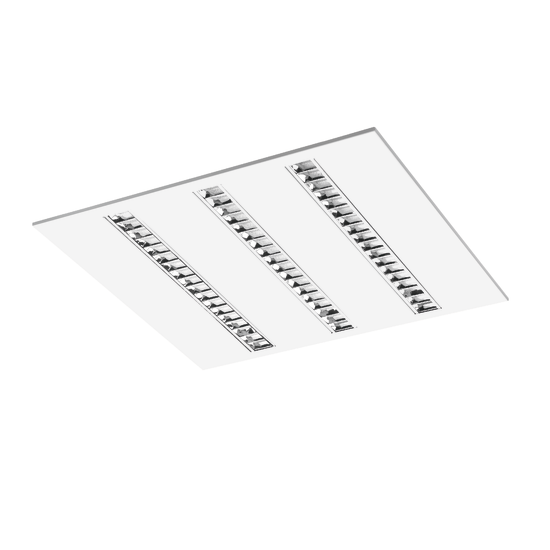

Modern louver luminaire for LED of high technical and optical performance. The luminaire has a very low glare rate thanks to aluminum parabolic louvers as well as low power consumption comparing to traditional light sources. Parabolic LED thanks to the innovative optical system is ideal for lighting office spacer, in particular to work with computers.
Materials: powder painted housing made od steel sheets (standard color: white), parabolic louvre made of polished and anodized aluminum of high quality, LED module with dedicated microprismatic (MPRM) cover
Installation: for modular ceiling 600x600 with visible grid and cardboard ceiling in 600x600 version, ceiling mounted, suspended
Accessories: suspension (simple, electric), cardboard frame for 600x600 version
Power: 230V
| L | W | H | |
|---|---|---|---|
| PX2070101 13.5W | 596 | 596 | 47 |
| PX2070108 13.5W | 596 | 596 | 47 |
| PX2070124 13.5W | 596 | 596 | 47 |
| PX2070126 13.5W | 596 | 596 | 47 |
| PX2070115 27W | 1196 | 296 | 47 |
| PX2070122 27W | 1196 | 296 | 47 |
| PX2070129 13.5W | 596 | 596 | 47 |
| PX2070136 13.5W | 596 | 596 | 47 |
| PX2070157 13.5W | 596 | 596 | 47 |
| PX2070164 13.5W | 596 | 596 | 47 |
| PX2070143 27W | 1196 | 296 | 47 |
| PX2070150 27W | 1196 | 296 | 47 |
L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
PXF Plexiform https://www.electrico24.eu/uploads/producer_logos/2855e4bbbfab7c351abefdfa4e5ea3b0.jpg
Luminaire PARABOLIC LED
